Bristan Oval Exposed Bar Shower with Kit OL SHXSMFF

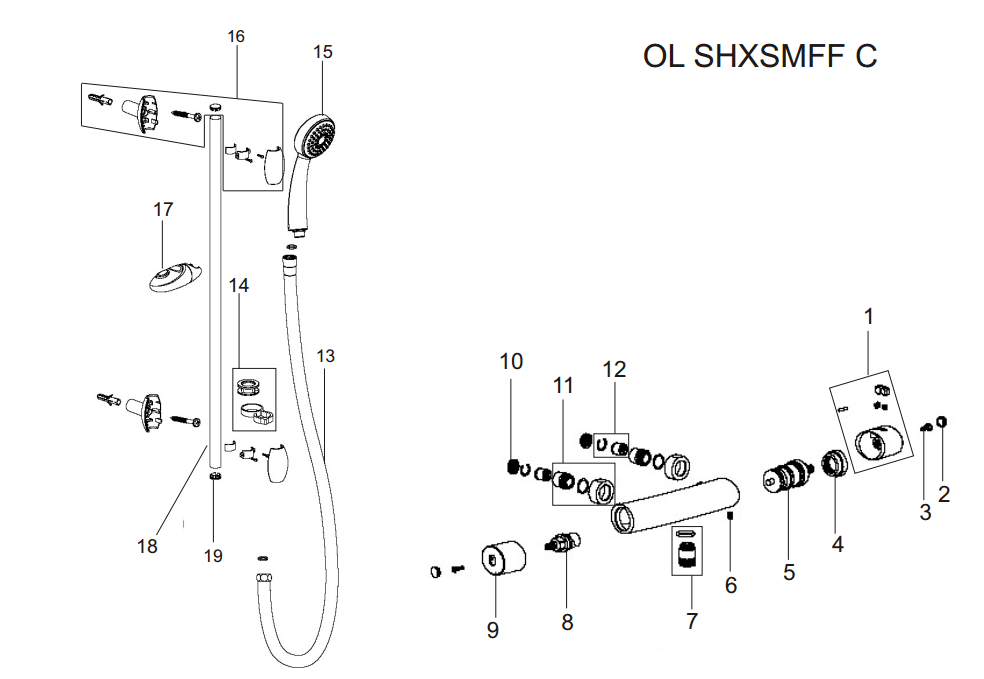

Diagram ref.    Part no.            Part name
01        B36022-TM             HANDLE ASS Temperature Handle Assembly for OL SHXSMFF C
02     11P50504-006-CA1     Handle Cap for OL SHXSMFF Chrome
03     30100023                 Cross Screw for Temperature Handle Assy Oval
04     11B30230-002-CA1     Control Ring
05     81E10004-000-001 OL SHXSMFF         Thermostatic Cart. Assy
06     30100106 OL/QD SHXSMFF         Cart. Retaining Screw
07     B36022-CONNECTOR         Outlet Connector and O Ring for OL SHXSMFF C
08     81E20104-000-001         Flow Control Valve OL SHXSMFF C
09     32B36021-002-CA1         Flow Handle Assembly for OL SHXSMFF C
10     82B30010-013-001         Inlet Filter Washer OL SHXSMFF
11     B36022-RETAINER             Back Nut Retainer Assembly for OL SHXSMFF C
12     B36022-VALVE                 Check Valve and Curclip for OL SHXSMFF C
13     81H25114-000-002         Hose 1.5m
14     B36022-HOSE RETAINER         Hose Retainer for OL SHXSMFF C
16     50480-BA                         Top/Bottom Bracket Assembly for OL SHXSMFF C
17     82M50450-001-CA1         22mm Push Button Slider Chrome
18     31M50480-011-CA1 OL SHXSMFF/ADR7         22mm Riser Tube Chrome
19     11M50330-003-CA1 OL SHXSMFF             Riser Rail Cap Chrome
A         WMNT10 C                         Wall Mount Fixings Chrome Plated
