Imex Arco Toilet Seat Hinge Set HINGESDELUXEQUICKRELEASE: What It Does and When to Replace It
The specific soft close and quick-release hinge mechanism for Arco series toilet seats.
The Imex Arco HINGESDELUXEQUICKRELEASE set is a precision-engineered hinge system designed specifically for the Arco range of bathroom ceramics. These hinges sit between the porcelain toilet bowl and the seat, acting as both the anchor point and the motion controller for the lid. Inside the cylindrical chrome housings, a hydraulic damper manages the descent of the seat, preventing the lid from slamming and protecting the ceramic rim from impact damage. Over time, these internal dampers can leak or lose pressure, leading to a seat that falls too quickly. This replacement set allows you to restore the smooth, silent operation of your Arco toilet without the cost or hassle of replacing the entire seat. The quick-release functionality remains central to the design, enabling you to detach the seat in seconds for deep cleaning of the ceramic surface.
✓ Is this your part?
You have an Imex Arco toilet seat
Your seat slams shut, is loose, or the quick-release fails
Code HINGESDELUXEQUICKRELEASE is in your documentation
Not certain? Email us first
HINGESDELUXEQUICKRELEASE Specifications: Dimensions, Compatibility, and Material
Technical details for the Imex Arco hinge replacement set.
| Part Code | HINGESDELUXEQUICKRELEASE |
|---|---|
| Part Type | Toilet Seat Hinge Set (Soft Close) |
| Compatible Range | Imex Arco Series |
| Mechanism | Hydraulic Soft Close with Quick-Release Button |
| Finish | Polished Chrome Effect |
| Fixing Method | Top Fix expansion bolts |

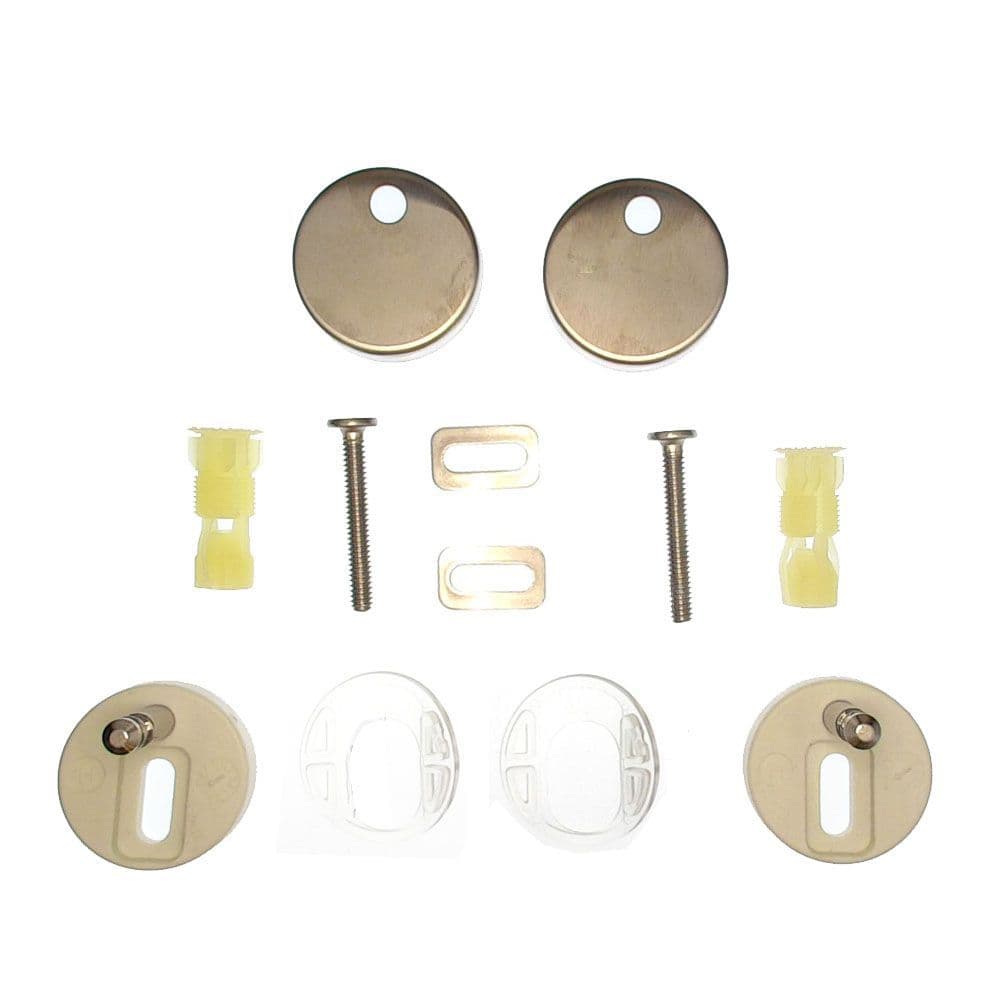

| Supplied With | Full pair of hinges, bolts, and chrome covers |
Three Things the HINGESDELUXEQUICKRELEASE Controls On Your Arco Seat
The specific technical functions performed by this replacement hinge set.
Soft Close Deceleration
The primary function of these hinges is the management of vertical motion. Internal hydraulic dampers absorb the kinetic energy as the seat is lowered, ensuring it descends at a controlled, gradual pace. When these dampers fail due to age or excessive force, the seat will drop instantly. Replacing the hinge set restores this safe, quiet closing motion.
Quick Release Efficiency
Hygiene is maintained through the quick-release button mechanism located on the hinges. By depressing the button, the seat can be lifted vertically away from the chrome pegs. This allows for thorough cleaning of the hinge area and the porcelain rim, which are typically inaccessible. This replacement set ensures the locking pins click and release reliably every time.
Seat Stability and Alignment
Beyond motion control, these hinges provide structural stability. The HINGESDELUXEQUICKRELEASE set includes expansion bolts that grip the ceramic holes from above. This prevents the seat from shifting laterally during use. A new set of hinges eliminates the "wobble" often caused by worn plastic washers or degraded expansion bolts in the original fitting.
Why Replacing the HINGESDELUXEQUICKRELEASE Hinge Set Fixes an Arco Seat Fault
The practical reasons to install new hinges rather than repairing the old set.
Avoids Full Seat Replacement
When a soft close seat starts slamming, it is a failure of the hinge dampers, not the seat itself. By installing the HINGESDELUXEQUICKRELEASE set, you retain the existing Arco seat and lid. This is more sustainable and significantly cheaper than purchasing a complete new seat unit, while achieving identical results in terms of performance and feel.
Simple Top-Fix Installation
Many modern toilets, including the Arco series, are designed so you cannot access the underside of the ceramic bowl. These hinges use a top-fix expansion bolt system. You install the bolts entirely from above, tightening them with a standard screwdriver until the rubber bung expands. This eliminates the need to dismantle the toilet or reach behind the porcelain.
Prevents Ceramic Impact Damage
A slamming toilet seat is more than just a noise nuisance. The repeated impact of a falling heavy lid can cause hairline cracks in the glaze of the porcelain bowl. By restoring the soft-close function, you protect the ceramic rim from shock loading. This ensures the longevity of the entire toilet suite by removing the primary cause of mechanical stress.
Restores Modern Hygiene Standards
A stuck or broken quick-release button prevents you from lifting the seat away for cleaning. This leads to the buildup of bacteria and limescale around the hinges. Installing new hinges ensures the release mechanism is smooth and responsive. This allows you to maintain the high standards of cleanliness the Arco range was designed to facilitate.
Installer Tip: Wet the Expansion Bungs Before Fitting
To ensure the rubber expansion bungs seat correctly in the ceramic holes, dip them in a little water or soapy water before pushing them in. This provides enough lubrication for the rubber to slide into place without catching. Once positioned, as you tighten the screw, the bung will expand evenly to create a rock-solid, non-slip anchor for your Arco hinges.
Frequently Asked Questions: Imex Arco Hinge Problems and Repairs
Solving common queries regarding the HINGESDELUXEQUICKRELEASE set.
How do I know I need the HINGESDELUXEQUICKRELEASE set for my Arco seat?
The most obvious symptom is the loss of deceleration. If your Arco toilet seat slams down when released, the hydraulic dampers inside the hinges have failed. Additionally, if the seat feels loose or moves from side to side despite the screws being tight, the internal plastic collars or expansion bungs may have degraded. This replacement set addresses all these issues by replacing the entire mechanical interface between the seat and the bowl.
Will these hinges fit other Imex ranges besides the Arco?
This specific hinge set is tailored for the Arco range. While many Imex seats use similar-looking chrome hinges, the diameter of the pegs and the spacing of the quick-release mechanism are precise to each series. We strongly recommend verifying that you have an Arco seat before ordering. If you are unsure, you can email us a photo of your toilet bowl and current hinges, and our technical team will confirm the compatibility for you.
Do I need any specialized tools to fit the Arco hinges?
No specialized tools are required. A standard large Phillips or flat-head screwdriver is usually sufficient. Since these are top-fix hinges, the entire installation happens from above. You will simply need to remove the old chrome covers, unscrew the expansion bolts, and pull the old hinges out. The new bungs are pushed into the holes and tightened. The HINGESDELUXEQUICKRELEASE kit is designed for straightforward DIY replacement without needing professional plumbing assistance.
Is it better to replace just the hinges or the whole Arco seat?
If the plastic or ceramic-effect material of your seat is in good condition, replacing just the hinges is the professional choice. It is faster, less wasteful, and far more cost-effective. The HINGESDELUXEQUICKRELEASE set contains all the moving parts that typically wear out. Unless the seat itself is cracked, stained, or heavily scratched, new hinges will make the unit perform exactly like a brand-new installation for a fraction of the cost.
