Replacement Shower Diverter Cartridges
Shower Diverter Cartridges Filtered by Spline Count and Diameter

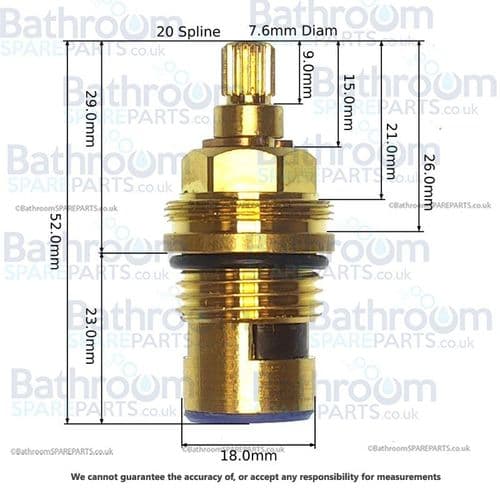

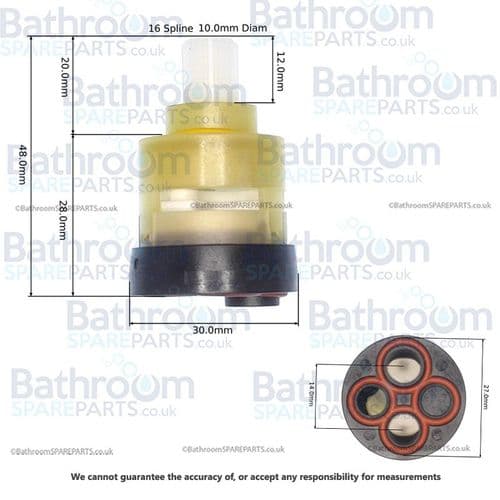

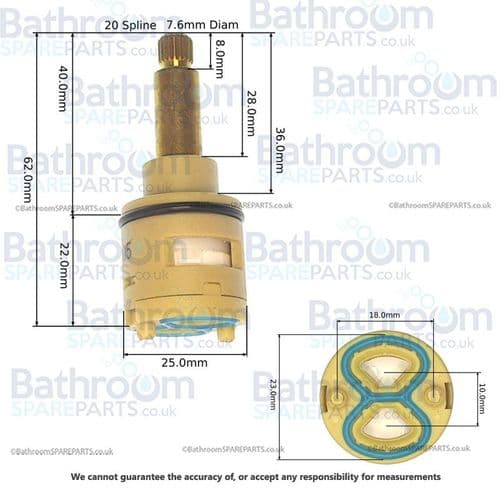

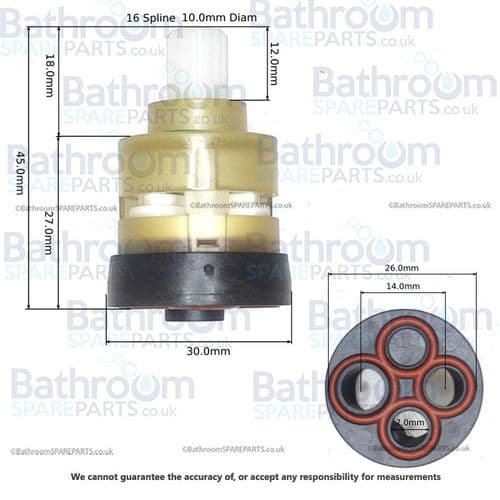

Get the old cartridge in your hand. The fit is decided by physical dimensions, not by the brand badge on the front of the valve. Filters on this page sort the catalogue by spline count, spline diameter, base diameter, length, and body material, so a replacement can be matched on the part itself even when the brand or the existing valve model is unknown. Older showers, discontinued ranges, builder-merchant rebrands, all turn up matches that brand-only routes would miss.
Two-Way and Three-Way Cartridges Stocked Separately
Different jobs, different parts. Count the outlets the diverter feeds before ordering.
Two-way
Switches between two outlets, the overhead head and the handset. Found on simpler concealed shower installations and on the great majority of exposed bar mixers.

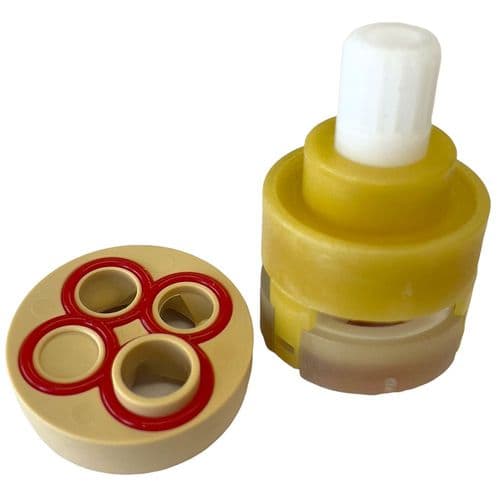

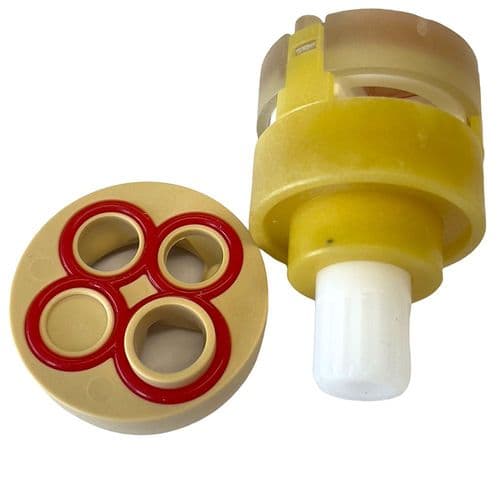

Three-way
Switches between three outlets. Often overhead, handset, and either a bath spout or a body jet, with each position clicking firmly home on the trim plate. Found on multifunction concealed valves.
Both variants are stocked. The two are not interchangeable, even when they look similar from the side. Position count on the existing control is the safest cue, because the cartridge inside has to match the number of click positions on the trim handle.
Brand-Matched Cartridges Across UK and European Ranges
The range covers UK trade brands like Vado, Bristan, Crosswater, Roper Rhodes, Hudson Reed and Burlington alongside continental European ranges including Gessi, Fantini, Dornbracht, Cifial and Zucchetti. Smaller retailers carry one cluster or the other. Cartridges for older or discontinued lines that high-street suppliers no longer carry often turn up here, sometimes under a generic part number that fits across multiple branded valves.
Frequently Asked Questions About Shower Diverter Cartridges
Is this the cartridge, or the whole diverter valve assembly?
This page is for the diverter cartridge, the rotating insert that sits inside a mixer valve and controls which outlet the water goes to. The cartridge unscrews from the valve body once the trim plate and handle are off, leaving the buried valve in place. Different part. The whole-valve replacement is a complete unit instead. The page lists a small number of full assemblies alongside the cartridges as a result of how the catalogue evolved over time.
How do I know if I need a two-way or three-way diverter cartridge?
Count the click positions on the existing diverter handle. Two clicks means a two-way cartridge, sending water to one of two outlets, typically the overhead and the handset. Three positions means a three-way cartridge, feeding three outlets such as overhead, handset, and bath spout or body jet. Off counts as a position on some valves, so check the trim diagram or the valve manufacturer specification if it is unclear. Match the trim.
Do I also need the extension piece that goes with this cartridge?
Sometimes. A diverter extension is a separate part that lengthens the spindle of the cartridge to reach through deeper-mounted trim plates. If the existing valve sits flush behind the wall and the trim plate fits without packing, no extension is needed. If the previous install used an extension or a longer spindle, the replacement cartridge will need one too. Diverter extensions are stocked separately on the Shower Valve Diverter Extensions page, sized to match the prevailing UK and European cartridge ranges.
