Shower Outlets
Shower outlets, wall outlets, outlet elbows and outlet connectors for replacing the wall fitting when it is leaking, pitted or stripped. Push-fit and standard thread variants in chrome, plus non-return valve outlets for backflow protection.
-193207-p.jpg?w=500&h=500&v=6D567995-6F86-43F9-B757-E3B83BF42BEC)
-154065-p.jpg?w=500&h=500&v=edb56473-3232-40cb-a8c4-398b9f93d78a)
-228906-p.jpg?w=500&h=500&v=FD7E9948-9F78-420E-B715-790532A017CD)
-116953-p.jpg?w=500&h=500&v=edb56473-3232-40cb-a8c4-398b9f93d78a)
-193092-p.jpg?w=500&h=500&v=5E814ECF-95F1-4CFA-B11E-0E4DB27AABED)
-193150-p.jpg?w=500&h=500&v=B7408341-9B43-4EBA-866B-26625864FB86)
-181954-p.jpg?w=500&h=500&v=F12E86F2-A95A-41FB-8CDE-3E9862DD0BE2)
-123989-p.jpg?w=500&h=500&v=edb56473-3232-40cb-a8c4-398b9f93d78a)
-168412-1-p.jpg?w=500&h=500&v=5C2B8FE8-BB7F-4255-BEE5-02D4DBB0F7E7)
-8600-p.jpg?w=500&h=500&v=edb56473-3232-40cb-a8c4-398b9f93d78a)
-89372-p.jpg?w=500&h=500&v=edb56473-3232-40cb-a8c4-398b9f93d78a)
-14007-p.jpg?w=500&h=500&v=C4F1EBAA-D4F8-4B5E-AC00-1C8F1B76C855)
-209126-p.jpg?w=500&h=500&v=780159C7-190B-497D-A338-6916D72BF631)
-192976-p.jpg?w=500&h=500&v=1CEFEE42-F60A-4313-87DD-8E7CF3C9E67A)
-21331-p.png?w=500&h=500&v=932AF206-BC75-4FDD-B5D3-E214ED31C01B)
-21333-p.png?w=500&h=500&v=196E1237-883E-47AC-89B3-307FBD46136E)
-214574-p.png?w=500&h=500&v=A919D435-C3EB-4459-A839-6CF7E1F3F034)
-21328-p.png?w=500&h=500&v=CA614719-B810-478A-B3CD-3D7828B1776E)
-13465-p.jpg?w=500&h=500&v=edb56473-3232-40cb-a8c4-398b9f93d78a)
-176691-p.jpg?w=500&h=500&v=7B85AB12-57AB-4F9E-ABE2-2CD7FB4EBE59)
Wall Outlets and Outlet Elbows for Shower Hoses
Wall Outlets and Outlet Elbows for Replacing the Connection Point
The shower outlet is the part on the wall the hose connects to. It sits flush against the tile, or recessed into the wall behind a chrome plate, and the hose threads onto the exposed nut. When the chrome pits, the seal weeps at the wall, or the thread strips out, this is the part that gets replaced. Replacing it does not need a plumber if the existing fixing is sound.
Wall outlets sit flat. Outlet elbows angle the hose downwards, which keeps the hose tidy when the handset rests in a low holder. Round outlets match round valves. Square outlets match right-angled valves and contemporary trims. Push-fit and fast-fit variants speed up the swap where the wall fixing is already in place.

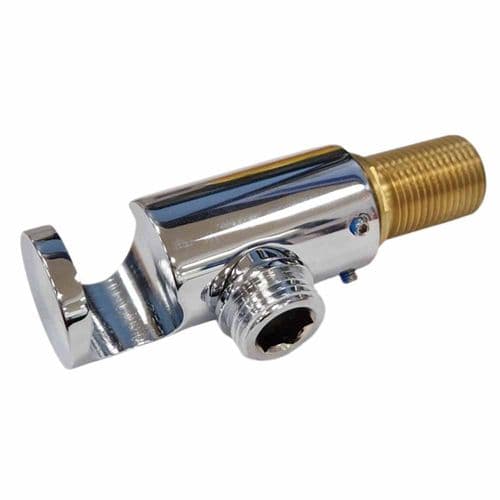

Outlets with an Integrated Handset Holder
Some shower outlets carry the handset holder as part of the same fitting. The hose connects at the wall and the handset clips onto a bracket built into the same plate, which replaces a two-piece installation with one part. The result is tidier when the original setup had a separate outlet and a separate clip mounted alongside it. Round and square profiles are stocked, in chrome and matt black finishes.
Non-Return Valve Shower Outlets for Backflow Prevention
A non-return valve fitted inside the outlet body stops water being drawn back from the hose into the supply pipework. It matters when the handset is left lying in a basin or bath of dirty water, and modern UK domestic water regulations require backflow protection on shower fittings of this type.
- The fitting carries a Non-Return Valve or NRV marking, or is described as such on the original specification
- The model code is stamped on the body of the outlet or its packaging
- The replacement matches the original on thread size and fixing centres, so a like-for-like swap is straightforward
Frequently Asked Questions About Shower Outlets
What's the difference between a shower outlet and a shower hose connector?
The shower outlet is the wall-mounted fitting that the water comes out of. It bolts to the rigid pipework behind the tile and stays there. The shower hose connector is the fitting on the end of the flexible hose itself, which threads onto the outlet at one end and the handset at the other. If the chrome plate on the wall is damaged or leaking, you need an outlet. If the hose end thread is stripped, you need a hose connector.
How do I know if my shower outlet has a non-return valve?
A non-return valve sits inside the body of the outlet and is not visible from the outside, so the way to confirm is the model code stamped on the fitting or the original installation paperwork. Manufacturers describe these fittings as Non-Return Valve or NRV, sometimes built into named outlet variants. If the existing outlet was specified with one, the replacement should match. Modern UK domestic installations require one for backflow protection.
How do I match a replacement outlet to my existing shower hose?
A 1/2 inch BSP thread is the standard size at the wall end for shower hoses, and wall outlets are sold to that same standard. Measure the diameter of the connection nut on the hose before ordering. Check the thread gender. Outlets with a non-return valve fit the same thread as standard outlets, and outlet elbows accept the same hose end as flat wall outlets. If the hose has a brand-specific thread, send a photo for confirmation.
