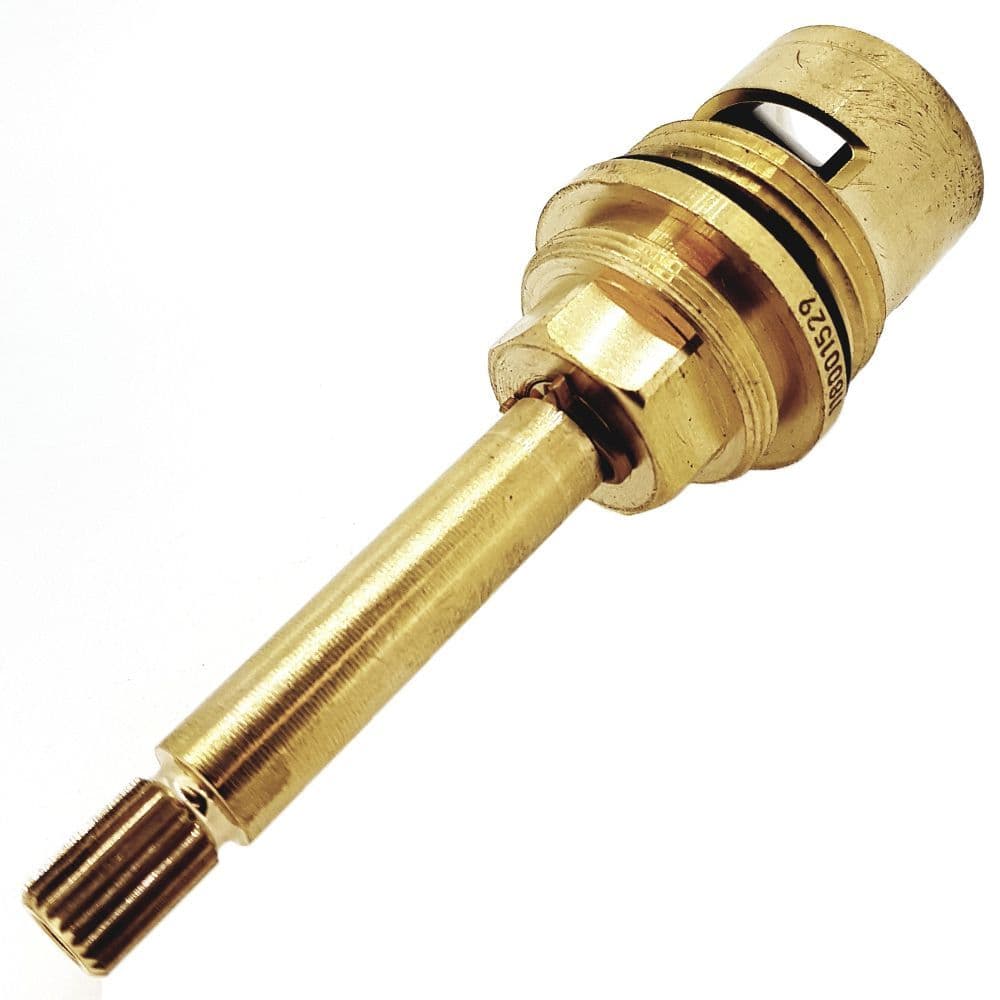

Bathstore Swing Vertical Shower Valve On/Off Cartridge SPACW0005
For the Bathstore Swing Vertical 70001000400 shower bath valve, X2A071N is the current code for the clockwise-closing on/off cartridge previously referenced as SPACW0005. The cartridge is a 3/4 inch BSP, quarter-turn ceramic disc shut-off cartridge. Matching the model, closing direction and code helps identify the correct replacement.
- Useful when older paperwork still shows SPACW0005
- Current X2A071N code makes replacement matching clearer
Need help? Contact us and our technical team will assist with your order.
X2A071N specifications
| Specification | Detail |
|---|---|
| Part code | X2A071N |
| Brand | Bathstore |
| Range | Swing Vertical |
| Model | 70001000400 |
| Previous part code | SPACW0005 |
| Product type | Shut-off cartridge |
| Length | 90mm |
| Stem length | 49mm |
| Cartridge type | Ceramic disc |
| Closing direction | Clockwise |
| Application | Bathstore Swing Vertical Thermostatic Shower Bath Valve 70001000400 |
Questions about X2A071N
Is X2A071N the same as SPACW0005 for the Bathstore Swing Vertical?
Yes. SPACW0005 is the old code for this Bathstore Swing Vertical on/off cartridge, while X2A071N is the current product code. If an older valve record, order or part description shows SPACW0005, the current reference to look for is X2A071N. Both references relate to this clockwise-closing cartridge.
Will X2A071N fit the Bathstore Swing Vertical 70001000400 valve?
X2A071N is listed for the Bathstore Swing Vertical Thermostatic Shower Bath Valve 70001000400 as its clockwise-closing on/off cartridge. Before ordering, check that your valve is the Swing Vertical 70001000400 and that you need the shut-off cartridge. The older code for this part is SPACW0005.
What specification is the Bathstore Swing Vertical X2A071N cartridge?
The X2A071N used with the Bathstore Swing Vertical 70001000400 is a ceramic disc shut-off cartridge with quarter-turn operation. It is 90mm long with a 49mm stem, has a 3/4 inch BSP size and closes clockwise. SPACW0005 is the previous reference for this same listed cartridge.
Still not certain this is the right part?
Fill out the contact form on our contact us page, email sales@bathroomspareparts.co.uk or phone us on 020 3940 9330. Our technical team will confirm the correct part before you order.
Customer reviews
-
MPN:X2A071N
-
Measurement A:90
-
Body Material:Brass
-
Measurement B:66
-
Measurement C:24
-
Length:90mm
-
Plastic/Brass:Brass
-
Measurement D:10
-
Product Type:Shut off Cartridge
-
Valve Lenght:90mm
-
Spline Count:20
-
Stem Length:49mm
-
Size:3/4" BSP
-
Operation:1/4 Turn
-
Nylon/Brass:Brass
-
Spline Diameter:7.6mm
-
Type:Ceramic Disc
-
Splines:24
-
Closing Direction:Clockwise
-
Brand:Bathstore
-
Product Code:X2A071N
-
Weight:6kg
