Victorian Plumbing Thermostatic Cartridge EG-LY-17A/THERMO

Victorian Plumbing Thermostatic Cartridge EG-LY-17A/THERMO

Click here for the Stop Ring

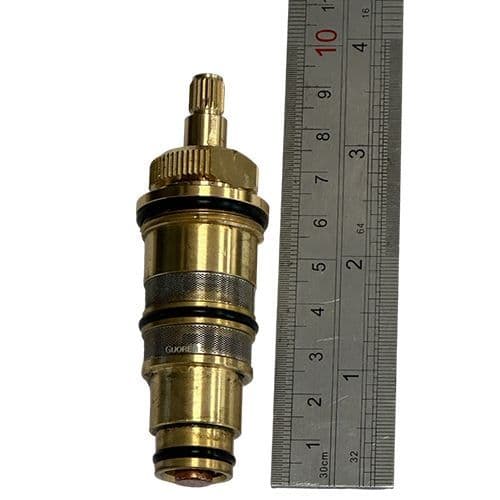

Cartridge Measurements:
Total Length: 87mm (including wax thermostat at bottom)
Total Length: 84mm (excludin gwax thermostat at bottom)
Diameter at Widest Point: 28mm
Diameter at Stop Ring Splines (tooth to tooth): 22.5mm
Top Spline Diameter: 7.6mm
Top Spline Teeth / Notches: 20
Diameter at Top O'ring: 27mm
Diameter at Middle O'ring: 24.5mm
Diameter at Bottom O'ring: 16.8mm
Fitting Type: Screw Fit. Diameter of thread is 25.8mm
Colour: Brass

We carry a large range of Bathroom Spares in stock and can order most parts
please call us or email sales@bathroomspareparts.co.uk if you need any more information
