Artisan Thermostatic Surface Mounted Bar Shower Valve AR2 SHXMTFF C

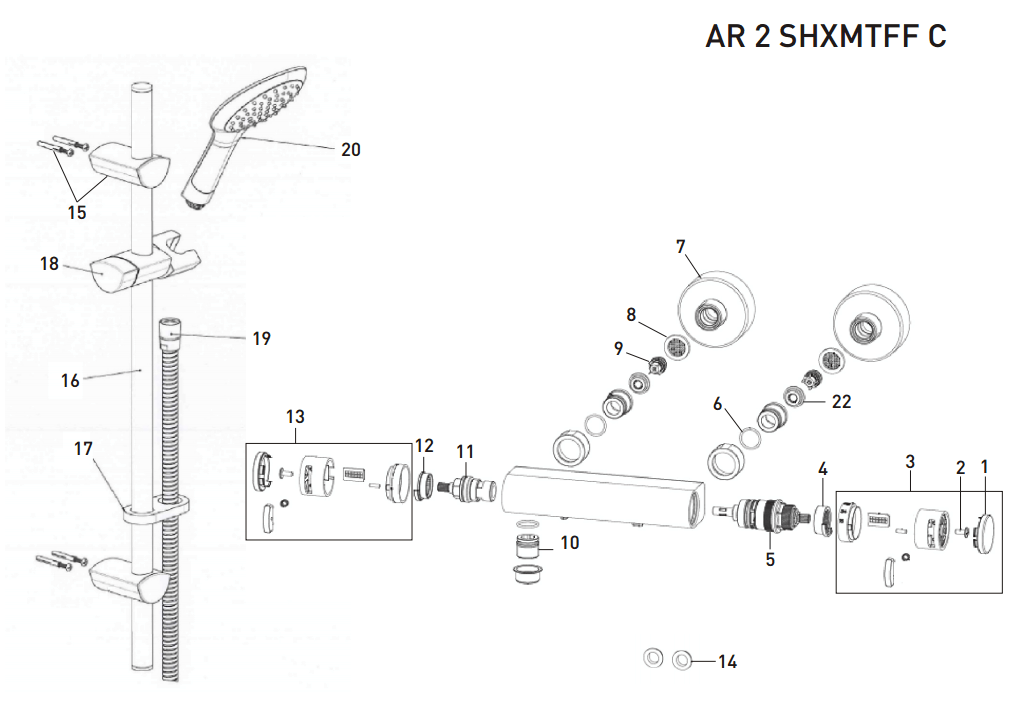

Diagram ref.        Part no.        Part name
02     SCW 05588B         Screw (Grub)
03     00621763             Temperature Handle Assembly Chrome for Artisan
05     00622415             Screw In Plastic Thermostatic Cartridge
06     OR 08015             O Ring (17 Mm)
07     WMNT10             C Wall Mount Fixings Chrome Plated
08     FILT 08410         Rubber filter washer. 24mm OD x 16mm ID.
10     00515129             Outlet Connector and O Ring for AR SHXMT C and AR SHXSM C
11     04048                OF Valve G1/2 for AR SHXMTFF C
12     00411087             Eco Stop for AR SHXMTFF C
13     00621764             Flow Handle Assembly Chrome for Artisan
14     58.9031.10000     7 l/m Flanged Green Flow Limiter for AR bar showers
15     SK100053             Spare Riser Bracket & Fixing Kit For EVO (Pair)
16     SK100050             Spare Chrome Riser Rail For EVO Kits
17     SK100052             Spare Hose Retainer For EVO Kits
18     SK100054             Spare Chrome Slider Bracket For EVO Kits
22     00622064             Retaining washers for Non-return valve (blue & red)
