Axor Terrano Therm. Mixer For Conc. Inst. With Shut-Off Valve and Cross Handle 37705000 Spare Parts

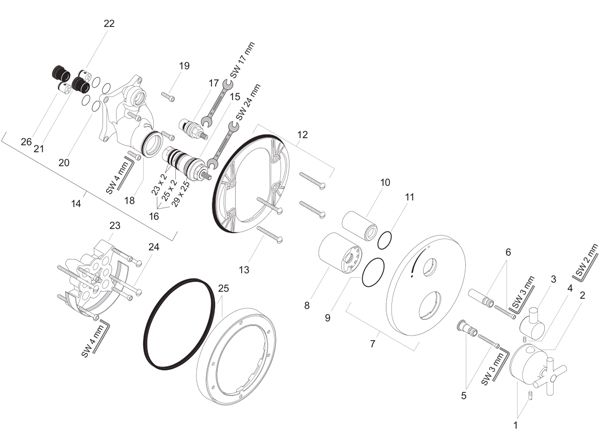

Year of production: 07/08 - 12/10

1	37994000	Handle For Thermostat
2	97212000	Push Button Red
3	96421000	Handle
4	97669000	Hollow Set Screw M4x8
5	96435000	Adapter For Handle
6	96451000	Adapter For Handle
7	96551000	Escutcheon 170mm Dia
8	96439000	Sleeve
9	95508000	O-Ring 48x3
10	96446000	Sleeve
11	98371000	O-Ring 29x3
12	96447000	Sub Plate
13	96454000	Set Of Fixing Screws
14	92760000	Installation Unit Cpl.
15	94282000	Thermostat Cartridge
16	95037000	Sealing Set
17	94009000	Shut Off Unit Right Closing
18	98158000	O-Ring 39x2
19	96525000	Set of Screws
20	98133000	O-Ring 16x2
21	94073000	Noise Reduction
22	94074000	Set Of Non Return Valves DW 15
23	13595000	Extension 25mm
24	97747000	Set Of Fixing Screws
25	13596000	Extension 22mm
26	92594000	Non Return Valve
a	01800180	Concealed Item
b	92499000	Non Return Valve With Filter

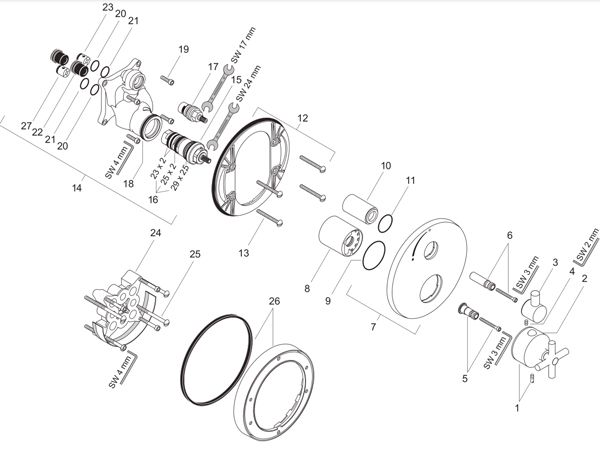

Year of production: 05/02 - 06/08

1	37994000	Handle For Thermostat
2	97212000	Push Button Red
3	96421000	Handle
4	97669000	Hollow Set Screw M4x8
5	96435000	Adapter For Handle
6	96451000	Adapter For Handle
7	96551000	Escutcheon 170mm Dia
8	96439000	Sleeve
9	95174000	O-Ring 48x5
10	96446000	Sleeve
11	98153000	O-Ring 30x5
12	96447000	Sub Plate
13	96454000	Set Of Fixing Screws
14	92760000	Installation Unit Cpl.
15	94282000	Thermostat Cartridge
16	95037000	Sealing Set
17	94009000	Shut Off Unit Right Closing
18	98158000	O-Ring 39x2
19	96525000	Set of Screws
20	98128000	O-Ring 13x2
21	98133000	O-Ring 16x2
22	94073000	Noise Reduction
23	94074000	Set Of Non Return Valves DW 15
24	13595000	Extension 25mm
25	97747000	Set Of Fixing Screws
26	13596000	Extension 22mm
27	92594000	Non Return Valve
a	01800180	Concealed Item
b	97792000	Push Button

Year of production: 04/01 - 04/02

1	37994000	Handle For Thermostat
2	97212000	Push Button Red
3	96421000	Handle
4	97669000	Hollow Set Screw M4x8
5	96435000	Adapter For Handle
6	96451000	Adapter For Handle
7	96551000	Escutcheon 170mm Dia
8	96439000	Sleeve
9	95174000	O-Ring 48x5
10	96446000	Sleeve
11	98153000	O-Ring 30x5
12	96447000	Sub Plate
13	96454000	Set Of Fixing Screws
14	92760000	Installation Unit Cpl.
15	94282000	Thermostat Cartridge
16	95037000	Sealing Set
17	96350000	Shut Off Unit Right Closing
18	98158000	O-Ring 39x2
19	96525000	Set of Screws
20	98128000	O-Ring 13x2
21	98183000	O-Ring 23x2.5
22	94073000	Noise Reduction
23	94074000	Set Of Non Return Valves DW 15
24	13595000	Extension 25mm
25	97747000	Set Of Fixing Screws
26	13596000	Extension 22mm
27	92594000	Non Return Valve
a	01800180	Concealed Item
b	97792000	Push Button
