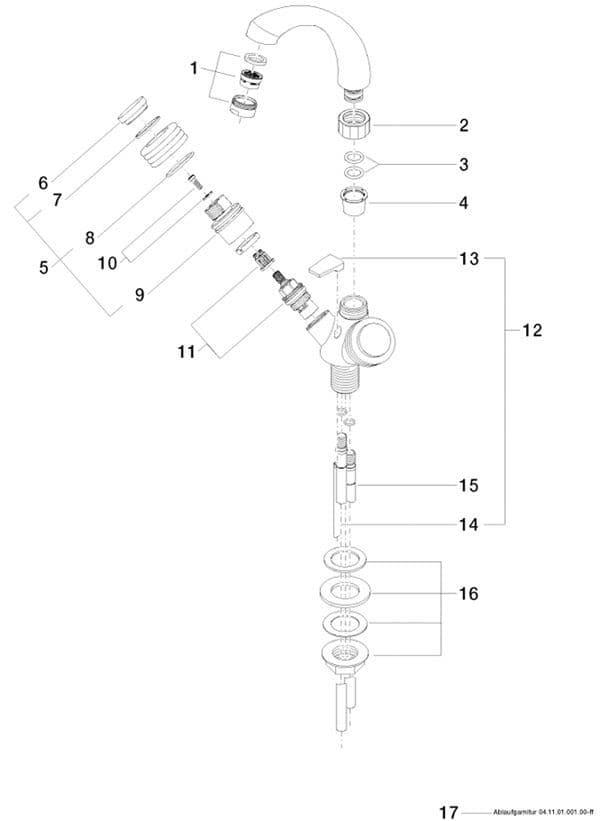

Dornbracht Avance Single Hole Basin Mixer Chrome 21326080-00 Spare Parts
| 1 | 90230111801-00 | Aerator M24x1 male 1.8 gpm - polished chrome |  |
 |
| 2 | 092331007-00 | Mounting bracket 3/4" - polished chrome |  |
|
| 3 | 09141002090 | O-Ring EPDM 70 13,0 x 2,6 mm | |
|
| 4 | 09210209090 | Protective cap Ø 25 x 18 mm | |
|
| 5 | 04202702300-00 | Pull rod 35 x 44 x 35 mm - polished chrome | |
|
| 6 | 092027026-00 | Handle Ø 32 x 11 mm - polished chrome | |
|
| 7 | 09281000990 | Ring 29,8 x27 x 1,8 mm | |
|
| 8 | 09141004090 | O-Ring 31,0 x 2,0 mm | |
|
| 9 | 092027023-00 | Handle Ø 34 x 39 mm - polished chrome | |
|
| 10 | 0430300290090 | Mounting bracket | |
|
| 11 | 9090031310090 | Upper part clockwise-closing 1/2" | |
|
| 12 | 04202003005-00 | Pull rod 7 x 410 x 32 mm - polished chrome | |
|
| 13 | 092020030-00 | Pull button 29,4 x 18,4 x 7,2 mm - polished chrome | |
|
| 14 | 093109005-00 | Pull rod Ø 6 x 380 mm - polished chrome | |
|
| 15 | 04240204601-07 | Wall connection 11-3/4" - Rough nickel-plated | |
|
| 16 | 0423100110190 | Mounting bracket 3/4" | |
|
| 17 | 04110100100-00 | Drain 1 1/4" - polished chrome | |
|
