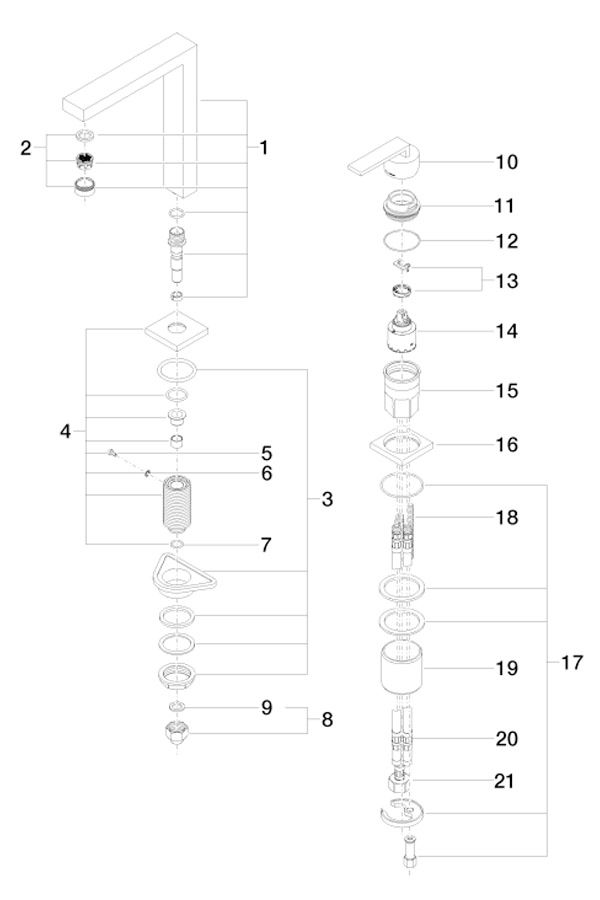

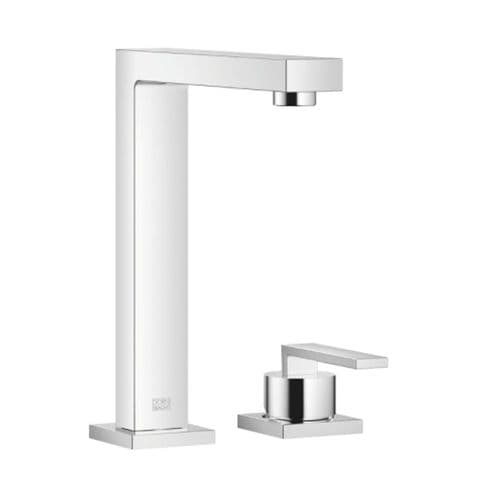

Dornbracht Lot Bar Tap Two-Hole Mixer With Individual Rosettes 32805680 Spare Parts

1	90110619204-00	Spout 221 x 199 x 36 mm, 8 l/min. - Polished Chrome
2	90230102901-00	Aerator M24x1 8,0 l/min. - Polished Chrome
3	0423100440190	Mounting With Seals M34 x 1 -
4	90277802300-00	Cover 57 x 72 x 57 mm - Polished Chrome
5	09303005790	Mounting Cylinder Head Screw With Hexagon Socket With Low Profile M4 x 8 mm -
6	09301102890	Mounting Serrated Lock Washer Ø 4,3 -
7	09141007790	O-Ring EPDM 70 12,0 x 2,0 mm -
8	0424041661090	Nipple 1/2" x M10x1
9	09142000290	Washer Vf 3110 18,5 x 12,0 x 2,0 mm -
10	90207804000-00	Handle Lever 30 x 40 x 95 mm - Polished Chrome
11	092404142-00	Mounting Ø 45 x 21,5 mm - Polished Chrome
12	09141003790	O-Ring 42,0 x 1,5 . mm -
13	0428101480090	Cartridge Volume And Temperature Limitation -
14	9015050610090	Cartridge Black Ø 35 x 52 mm -
15	0930011001090	Wall Connection Ø 45 x 58 mm -
16	092778007-00	Rosette 55 x 8,5 x 55 x Ø 42,7 mm - Polished Chrome
17	0430110380290	Mounting With O-Ring Ø49 x 2mm Ø 52 x 1,5 mm -
18	09311101190	Mounting Threaded Bolt M8 x 80 mm -
19	09184007990	Sleeve Ø 50 x 50 mm -
20	0430040160090	High Pressure Hose M10x1 x 420 mm -
21	0430040190090	High Pressure Hose With Sleeve Nut M10x1 x 1/2" x 420 mm -
