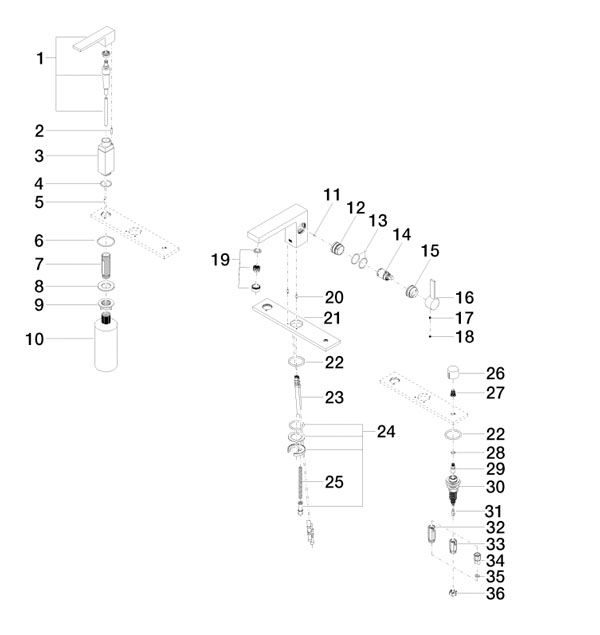

Dornbracht Lot Single-Lever Mixer Since 15/05/2020 37848680 Spare Parts
| 1 | 90101051600-00 | Dispenser Pump Head, Complete - Polished Chrome |  |
|
| 2 | 09311109690 | Mounting - | |
|
| 3 | 081010526-00 | Dispenser Retainer Angular 30 x 38 x 117 mm - Polished Chrome | |
|
| 4 | 09141011890 | O-Ring EPDM 70 27,6 x 2,4 mm - | |
|
| 5 | 09311104090 | Straight Pin Ø 6 x12 mm - | |
|
| 6 | 09141004990 | O-Ring 45,69 x 2,62 mm - |  |
 |
| 7 | 08101052790 | Shaft Shaft M24x1.25 M24 x 1,25 x 99 mm - | |
|
| 8 | 09140501490 | Washer NBR 70 48,0 x 27,0 x 3,0 mm - | |
|
| 9 | 08101051790 | Nut Shaft Dispenser 45 x 45 x 15 mm - | |
|
| 10 | 08101060390 | Bottle For Integrated Dispenser 500ml - | |
|
| 11 | 09311111190 | Straight Pin Ø 6 x 8 mm - | |
|
| 12 | 0918400951090 | Cover/Sleeve Ø 33,2 x 23,7 mm - | |
|
| 13 | 09141013790 | O-Ring EPDM 70 29,0 x 2,0 mm - | |
|
| 14 | 09150504190 | Cartridge Ø 25 x 50 mm - | |
|
| 15 | 092404241-00 | Mounting Nut Ø 35 x 20,5 mm - Polished Chrome | |
|
| 16 | 092088051-00 | Handle Ø 36 x 22 mm - Polished Chrome | |
|
| 17 | 09311103090 | Mounting Threaded Pin With Hexagon Socket With Cup Point M5 x 5 mm - | |
|
| 18 | 09312010990 | Plug - | |
|
| 19 | 90230102904-00 | Aerator M24x1 - Polished Chrome | |
|
| 20 | 09311120090 | Mounting Shaft Screw With Chamfered End With Slit M3 x 12 mm - | |
|
| 21 | 092787009-00 | Rosette 300 x 60 x 9 x Ø 34 mm - Polished Chrome | |
|
| 22 | 09141004390 | O-Ring 40,0 x 4,0 mm - | |
|
| 23 | 0430040180090 | High Pressure Hose M8x1 x 420 mm - | |
|
| 24 | 0430110387590 | Mounting With O-Ring Ø36 x 4mm Ø 52 x 1,5 mm - | |
|
| 25 | 09311101290 | Mounting Threaded Bolt M8 x110 mm - | |
|
| 26 | 092097030-00 | Handle With Lug Ø 31,5 x 25 mm - Polished Chrome | |
|
| 27 | 09121200290 | Fixing Cap White Ø 15 x 12 mm - | |
|
| 28 | 09141004290 | O-Ring EPDM 70 9,0 x 1,5 mm | |
|
| 29 | 092906087-00 | Wall Connection Spindle Extension Ø 12 x 31 mm - Polished Chrome | |
|
| 30 | 0430010290090 | Wall Connection For Strainer Waste Activation - | |
|
| 31 | 09240317590 | Wall Connection For Strainer Waste - | |
|
| 32 | 091110073-07 | Wall Connection Ø 20 x 52,5 mm - Untreated Nickel-plated | |
|
| 33 | 091110074-07 | Wall Connection Ø 20 x 42 mm - Untreated Nickel-plated | |
|
| 34 | 091110079-07 | Wall Connection Ø 20 x 32 mm - Untreated Nickel-plated | |
|
| 35 | 09301108790 | Disc 12,60 x 6,00 x 2,4 mm - | |
|
| 36 | 092330024-07 | Mounting For Strainer Waste Set - Untreated Nickel-plated | |
