Hansgrohe Axor Citterio M 160 Chrome Basin Mixer 34133000 Spare Parts

Spare For Construction Year: 10/10

1	Spout CPL	98928000
2	Aerator Laminar M16,5x1 (5 l/min)	93118000	N/A
3	Special Tool	98987000
4	Hollow Set Screw M4x5	92846000
5	Pull Rod	95701000
6	Escutcheon	98930000
7	Handle	34095000
8	Set of Color-Rings Cold / Hot Water	98927000
9	Handle Fixing Set	98932000
10	Nut	98929000
11	O-Ring 30x1,5	98433000
12	O-Ring 11x2	98127000
13	Fixing Set (Ø 32)	13961000
14	Lever Collar	97548000
15	Connection Hose 450 mm M8x0,75 G3/8	97206000
16	O-Ring 7x1,5	98422000
17	Sealing Set	95581000
18	Shut Off Unit Left Closing	94008000
19	Shut Off Unit Right Closing	94009000
20	Connection Hose 450 mm M10x1 G3/8	96507000
21	O-Ring 8x1,75	97827000
22	Hose Extension Set for 3-Hole Basin Mixer	38959000
a	Pop Up Waste	94139000
b	Fixation Extension 35 mm	13898000

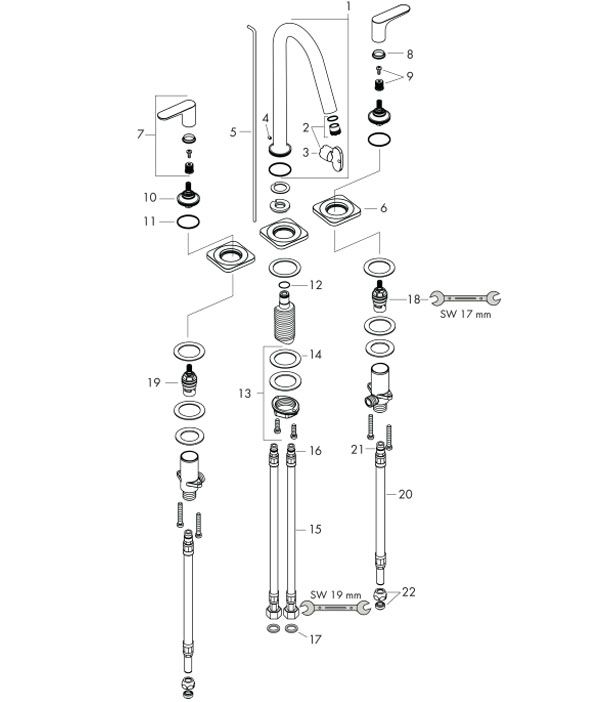

Spare For Construction Year: 01/10 - 09/10

1	Spout CPL	98928000
2	Aerator Laminar M16,5x1 (5 l/min)	93118000	N/A
3	Special Tool	98987000
4	Hollow Set Screw M4x5	92846000
5	Pull Rod	94083000
6	Escutcheon	98930000
7	Handle	34095000
8	Set of Color-Rings Cold / Hot Water	98927000
9	Handle Fixing Set	98932000
10	Nut	98929000
11	O-Ring 30x1,5	98433000
12	O-Ring 11x2	98127000
13	Fixing Set (Ø 32)	13961000
14	Lever Collar	97548000
15	Connection Hose 450 mm M8x0,75 G3/8	97206000
16	O-Ring 7x1,5	98422000
17	Sealing Set	95581000
18	Shut Off Unit Left Closing	94008000
19	Shut Off Unit Right Closing	94009000
20	Connection Hose 450 mm M10x1 G3/8	96507000
21	O-Ring 8x1,75	97827000
22	Squeezing Connection	94158000
a	Pop Up Waste	94139000
b	Fixation Extension 35 mm	13898000

Spare For Construction Year: 01/08 - 12/09

1	Spout CPL	98928000
2	Aerator Laminar M16,5x1 (7 l/min)	98926000
3	Special Tool	98987000
4	Hollow Set Screw M4x5	92846000
5	Pull Rod	94083000
6	O-Ring 11x2	98127000
7	Fixing Set (Ø 32)	13961000
8	Lever Collar	97548000
9	Connection Hose 450 mm M8x0,75 G3/8	97206000
10	O-Ring 7x1,5	98422000
11	Sealing Set	95581000
12	Handle	34095000
13	Set of Color-Rings Cold / Hot Water	98927000
14	Handle Fixing Set	98932000
15	Nut	98929000
16	O-Ring 30x1,5	98433000
17	Escutcheon	98930000
18	Shut Off Unit Left Closing	94008000
19	Shut Off Unit Right Closing	94009000
20	Connection Hose 450 mm M10x1 G3/8	96507000
21	O-Ring 8x1,75	97827000
22	Squeezing Connection	94158000
a	Pop Up Waste	94139000
b	Fixation Extension 35 mm	13898000
