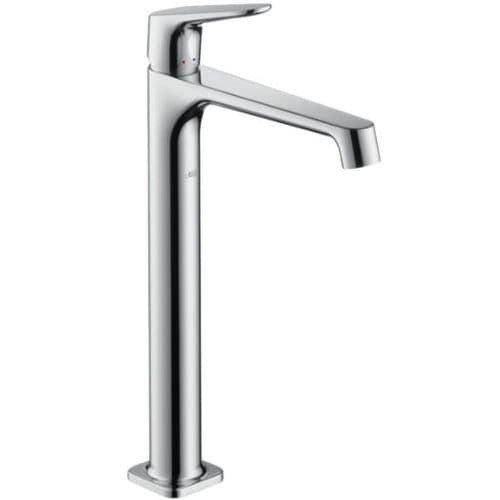

Hansgrohe Axor Citterio M Chrome 250 Basin Mixer 34120000 Spare Parts

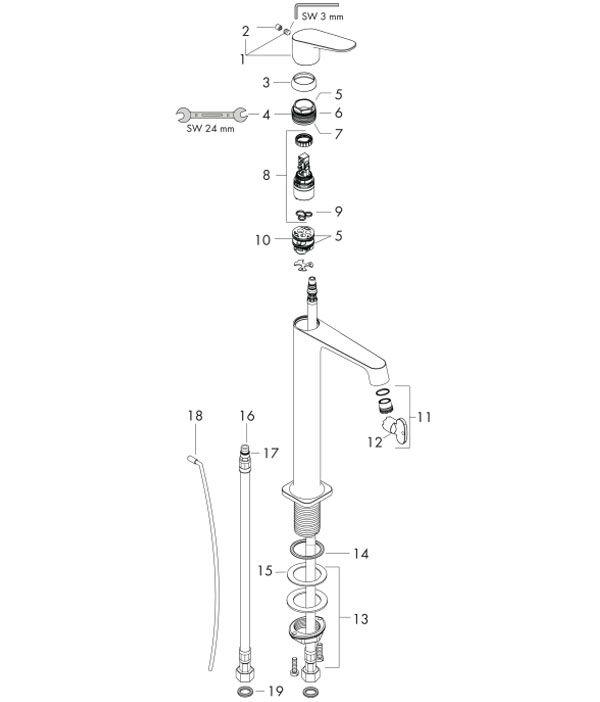

Spare For Construction Year: 02/16

1	Handle	34093000
2	Screw Cover	96762000
3	Flange	98863000
4	Nut	98864000
5	O-Ring 23x2	98398000
6	O-Ring 27x1,5	92527000	N/A
7	O-Ring 25x1,5	98146000
8	Cartridge, Assy	97685000
9	Seal	98865000
10	Adapter for Cartridge	98866000
11	Aerator Laminar M16,5x1 (5 l/min)	95382000
12	Special Tool	98987000
13	Fixing Set (Ø 32)	13961000
14	Lever Collar	97548000
15	Flat Seal	98749000
16	Connection Hose 900 mm M8x0,75 G3/8	96316000
17	O-Ring 7x1,5	98422000
18	Pull Rod	96923000
19	Sealing Set	95581000
a	Pop Up Waste	94139000
b	Fixation Extension 35 mm	13898000
c	Lever Arm 340mm (ball-Ø12mm)	96324000

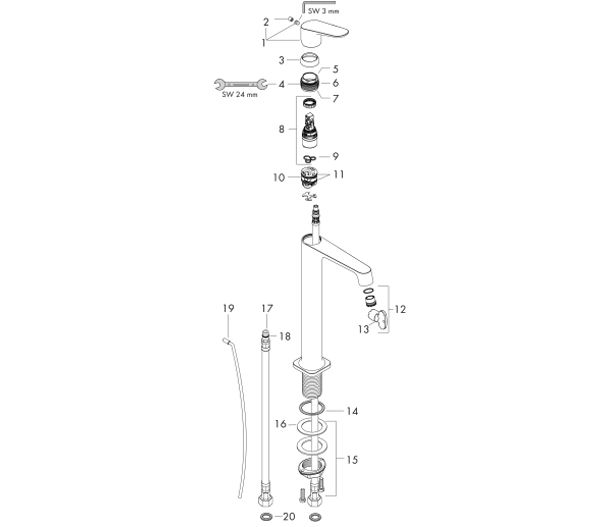

Spare For Construction Year: 10/10 - 12/16

1	Handle	34093000
2	Screw Cover	96762000
3	Flange	98863000
4	Nut	98864000
5	O-Ring 22x2	98185000
6	O-Ring 28x1,5	98421000
7	O-Ring 25x1,5	98146000
8	Cartridge, Assy	97685000
9	Seal	98865000
10	Adapter for Cartridge	98866000
11	O-Ring 23x2	98398000
12	Aerator Laminar M16,5x1 (5 l/min)	95382000
13	Special Tool	98987000
14	Flat Seal	98749000
15	Fixing Set (Ø 32)	13961000
16	Lever Collar	97548000
17	Connection Hose 900 mm M8x0,75 G3/8	96316000
18	O-Ring 7x1,5	98422000
19	Pull Rod	96923000
20	Sealing Set	95581000
a	Pop Up Waste	94139000
b	Fixation Extension 35 mm	13898000
c	Lever Arm 340mm (ball-Ø12mm)	96324000

Spare For Construction Year: 01/10 – 09/10

1	Handle	34093000
2	Screw Cover	96762000
3	Flange	98863000
4	Nut	98864000
5	O-Ring 22x2	98185000
6	O-Ring 28x1,5	98421000
7	O-Ring 25x1,5	98146000
8	Cartridge, Assy	97685000
9	Seal	98865000
10	Adapter for Cartridge	98866000
11	O-Ring 23x2	98398000
12	Aerator Laminar M16,5x1 (5 l/min)	95382000
13	Special Tool	98987000
14	Flat Seal	98749000
15	Fixing Set (Ø 32)	13961000
16	Lever Collar	97548000
17	Connection Hose 900 mm M8x0,75 G3/8	96316000
18	O-Ring 7x1,5	98422000
19	Pull Rod	96923000
a	Pop Up Waste	94139000
b	Fixation Extension 35 mm	13898000

Spare For Construction Year: 01/08 - 12/09

1	Handle	34093000
2	Screw Cover	96762000
3	Flange	98863000
4	Nut	98864000
5	O-Ring 22x2	98185000
6	O-Ring 28x1,5	98421000
7	O-Ring 25x1,5	98146000
8	Cartridge, Assy	97685000
9	Seal	98865000
10	Adapter for Cartridge	98866000
11	O-Ring 23x2	98398000
12	Aerator Laminar M16,5x1 (5 l/min)	95382000
13	Special Tool	98987000
14	Flat Seal	98749000
15	Fixing Set (Ø 32)	13961000
16	Lever Collar	97548000
17	Connection Hose 900 mm M8x0,75 G3/8	96316000
18	O-Ring 7x1,5	98422000
19	Pull Rod	96923000
a	Pop Up Waste	94139000
b	Fixation Extension 35 mm	13898000
