Hansgrohe Axor Citterio M Chrome 250 Basin Mixer For Washbowls 34127000 Spare Parts

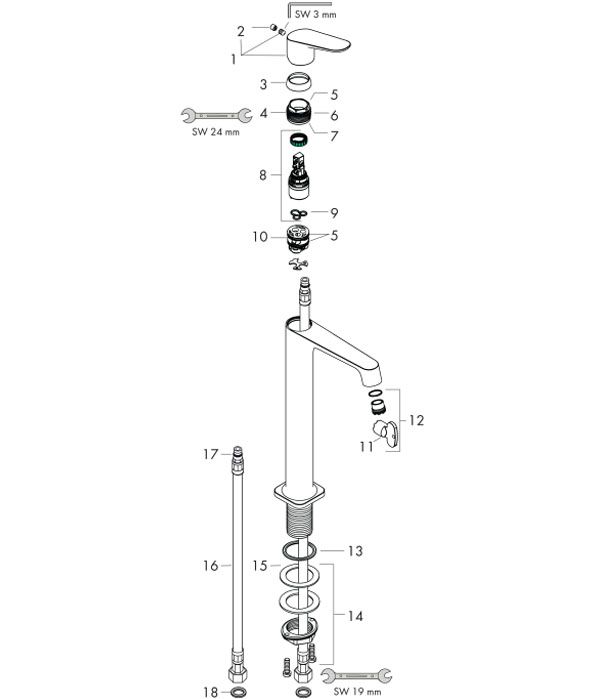

Spare For Construction Year: 02/16

1	Handle	34093000
2	Screw Cover	96762000
3	Flange	98863000
4	Nut	98864000
5	O-Ring 23x2	98398000
6	O-Ring 27x1,5	92527000	N/A
7	O-Ring 25x1,5	98146000
8	Cartridge, Assy	97685000
9	Seal	98865000
10	Adapter for Cartridge	98866000
11	Special Tool	98987000
12	Aerator Laminar M16,5x1 (5 l/min)	93118000	N/A
13	Lever Collar	97548000
14	Fixing Set (Ø 32)	13961000
15	Flat Seal	98749000
16	Connection Hose 900 mm M8x0,75 G3/8	96316000
17	O-Ring 7x1,5	98422000
18	Sealing Set	95581000
a	Fixation Extension 35 mm	13898000

Spare For Construction Year: 10/10 - 01/16

1	Handle	34093000
2	Screw Cover	96762000
3	Flange	98863000
4	Nut	98864000
5	O-Ring 22x2	98185000
6	O-Ring 28x1,5	98421000
7	O-Ring 25x1,5	98146000
8	Cartridge, Assy	97685000
9	Seal	98865000
10	Adapter for Cartridge	98866000
11	O-Ring 23x2	98398000
12	Aerator Laminar M16,5x1 (5 l/min)	93118000	N/A
13	Special Tool	98987000
14	Flat Seal	98749000
15	Fixing Set (Ø 32)	13961000
16	Lever Collar	97548000
17	Connection Hose 900 mm M8x0,75 G3/8	96316000
18	O-Ring 7x1,5	98422000
19	Sealing Set	95581000
a	Fixation Extension 35 mm	13898000

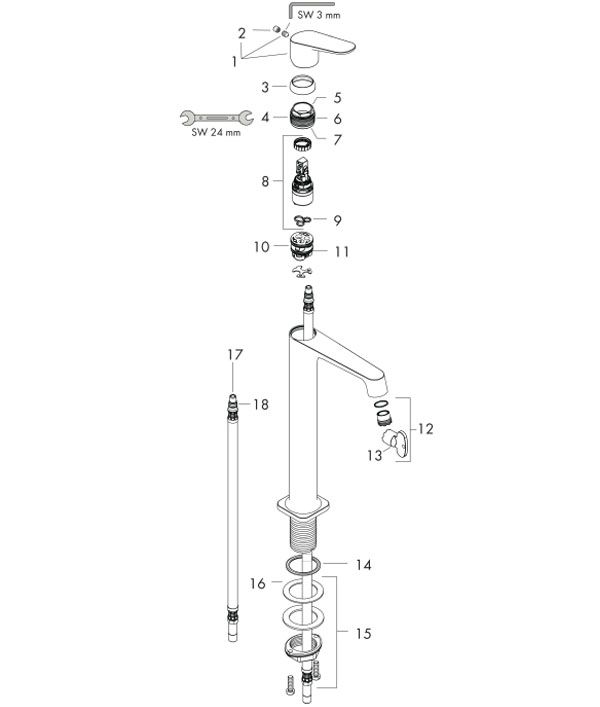

Spare For Construction Year: 01/10 – 09/10

1	Handle	34093000
2	Screw Cover	96762000
3	Flange	98863000
4	Nut	98864000
5	O-Ring 22x2	98185000
6	O-Ring 28x1,5	98421000
7	O-Ring 25x1,5	98146000
8	Cartridge, Assy	97685000
9	Seal	98865000
10	Adapter for Cartridge	98866000
11	O-Ring 23x2	98398000
12	Aerator Laminar M16,5x1 (5 l/min)	93118000	N/A
13	Special Tool	98987000
14	Flat Seal	98749000
15	Fixing Set (Ø 32)	13961000
16	Lever Collar	97548000
17	Connection Hose 900 mm M8x0,75 G3/8	96316000
18	O-Ring 7x1,5	98422000
a	Fixation Extension 35 mm	13898000

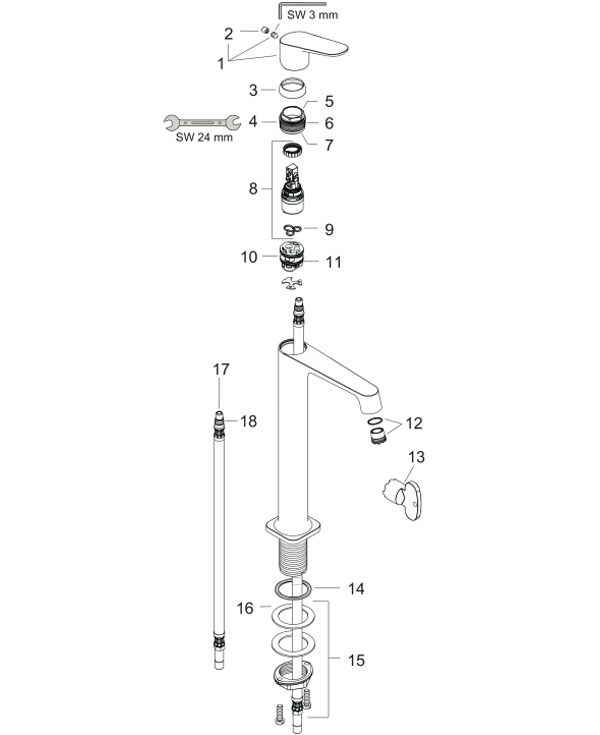

Spare For Construction Year: 01/08 - 12/09

1	Handle	34093000
2	Screw Cover	96762000
3	Flange	98863000
4	Nut	98864000
5	O-Ring 22x2	98185000
6	O-ring 25x1,5	98146000
7	O-ring 28x1,5	98421000
8	Cartridge, Assy	97685000
9	Seal	98865000
10	Adapter for Cartridge	98866000
11	O-Ring 23x2	98398000
12	Aerator Laminar M16,5x1 (5 l/min)	93118000	N/A
13	Special Tool	98987000
14	Flat Seal	98749000
15	Fixing Set (Ø 32)	13961000
16	Lever Collar	97548000
17	Connection Hose 900 mm M8x0,75 G3/8	96316000
18	O-Ring 7x1,5	98422000
a	Fixation Extension 35 mm	13898000
