Hansgrohe Axor Mondaro Satin Chrome Bath/Shower Mixer G½ 18400880 Spare Parts 11/11

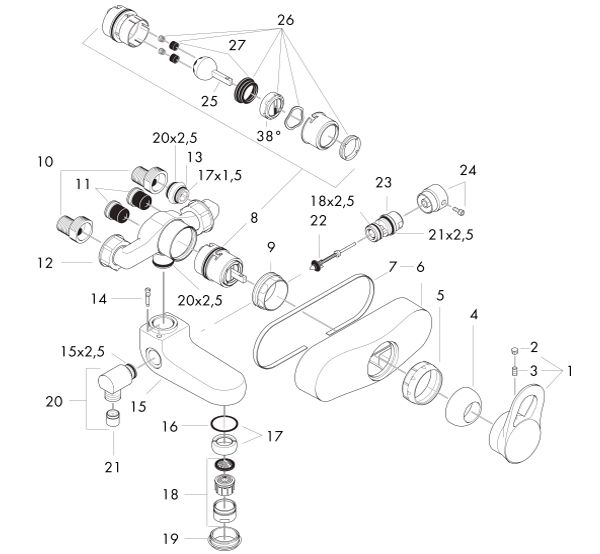

Spare For Construction Year: 11/98 - 03/01

1	Handle	18491880
2	Screw Cover	94063880
3	Hollow Set Screw M6x10 DIN 916	96029000
4	Flange	94261880
5	Nut	96426000
6	Escutcheon	94200880
7	Seal	96032000
8	Cartridge, Assy	14096000
9	Nut	94106000
10	Ball S - Unions	13989000
11	Noise Reduction with Screw	98721000
12	Sleeve Nut	97528000
13	Connecting Thread	97233000
14	Screw M5 x 24	97555000
15	Spout with Selector, Mousseur	92410880
16	O-Ring 32,5x2,2	94485000
17	Ball Joint	97526000
18	Aerator M28x1 (25 l/min)	13485000
19	Nut	96438000
20	Hose Connection Angel	96033880
21	Set of Non Return Valves DW 15	94074000
22	Selector Assy	94056000
23	Guide Nipple	96036880
24	Diverter Knob CPL	13471880
25	Mixer Ball	13964000
26	Ball S-Unions 120 - 180 mm	13988000	N/A
27	Service Set without Service Tool	98804000

Spare For Construction Year: 08/93 - 11/98

1	Handle	18491880
2	Screw Cover	94063880
3	Hollow Set Screw M6x10 DIN 916	96029000
4	Flange	94261880
5	O-Ring 50x2	98187000	N/A
6	Nut	96463000	N/A
7	Escutcheon	94200880
8	Seal	96032000
9	Service Set with Service Tool	13952000
10	Mixer Ball	13964000
11	Service Set without Service Tool	98804000
12	Mixing Body	96040000	N/A
13	Washer	13472000	N/A
14	Connecting Thread	97233000
15	O-Ring 17x1,5	98137000
16	O-Ring 20x2,5	92602000
17	Ball S - Unions	13989000
18	Hose Connection	96038880
19	Hose Connection Angel	96033880
20	O-Ring 15x2,5	98131000
21	Spout with Selector, Mousseur	92410880
22	O-Ring 32,5x2,2	94485000
23	Aerator M28x1 (25 l/min)	13485000
24	Nut	96438000
25	Selector Assy	94056000
26	O-Ring 18x2,5	98139000
27	Guide Nipple	96036880
28	Diverter Knob CPL	13471880
29	O-Ring 21x2,5	98211000	N/A
a	Ball S-Unions 120 - 180 mm	13988000	N/A
