Hansgrohe Axor Single Lever Bidet Mixer 35202800 Spare Parts

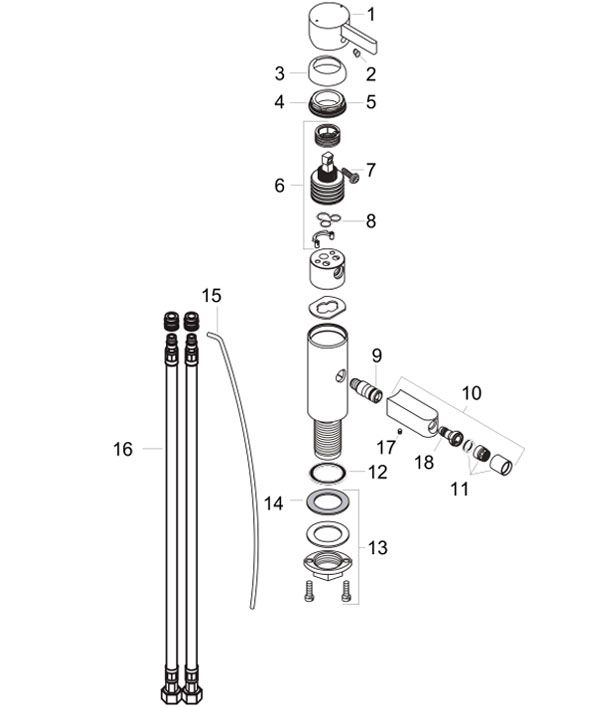

Spare For Construction Year: 10/10 - 07/12
| 1 | Handle | 35093800 |  |
| 2 | Screw Cover | 96681000 | N/A |
| 3 | Flange | 96682800 | |
| 4 | Nut | 96690000 | |
| 5 | O-Ring 27x2,5 | 98149000 | N/A |
| 6 | Cartridge, Assy | 92730000 | |
| 7 | Locking Screw for Handle | 95140000 | |
| 8 | Seal | 95008000 | |
| 9 | O-Ring 11x2 | 98127000 | |
| 10 | Spout CPL | 97813800 | N/A |
| 11 | Aerator Laminar M16x1 (7 l/min) | 96684800 | N/A |
| 12 | Flat Seal | 98749000 | |
| 13 | Fixing Set (Ø 32) | 13961000 | |
| 14 | Lever Collar | 97548000 | |
| 15 | Pull Rod | 96657800 | |
| 16 | Connection Hose 450 mm M8x0,75 G3/8 | 97206000 | |
| 17 | Hollow Set Screw M4x5 | 92846000 | |
| 18 | O-Ring 7x2 | 98419000 | |
| a | Pop Up Waste | 94139800 | |
| b | Fixation Extension 35 mm | 13898000 | |

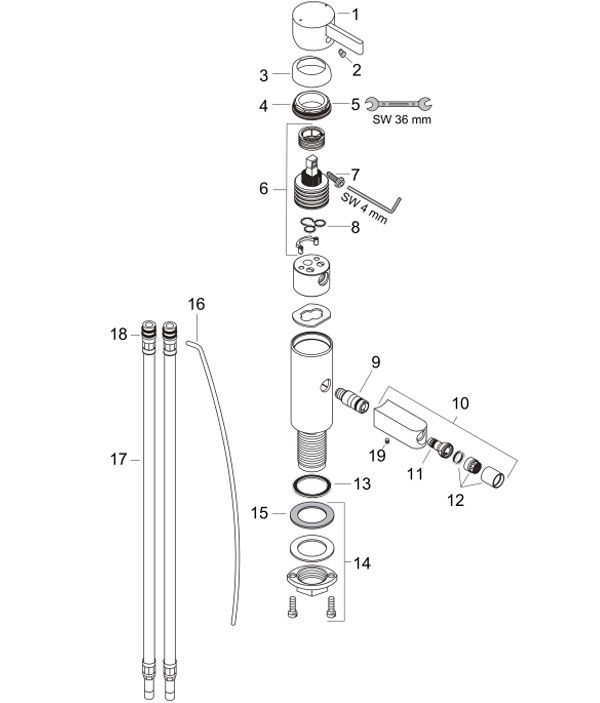

Spare For Construction Year: 07/09 - 09/10
.jpg)
| 1 | Handle | 35093800 | |
| 2 | Screw Cover | 96681000 | N/A |
| 3 | Flange | 96682800 | |
| 4 | Nut | 96690000 | |
| 5 | O-Ring 27x2,5 | 98149000 | N/A |
| 6 | Cartridge, Assy | 92730000 | |
| 7 | Locking Screw for Handle | 95140000 | |
| 8 | Seal | 95008000 | |
| 9 | O-Ring 11x2 | 98127000 | |
| 10 | Spout CPL | 97813800 | N/A |
| 11 | O-Ring 7x2 | 98419000 | |
| 12 | Aerator Laminar M16x1 (7 l/min) | 96684800 | N/A |
| 13 | Flat Seal | 98749000 | |
| 14 | Fixing Set (Ø 32) | 13961000 | |
| 15 | Lever Collar | 97548000 | |
| 16 | Pull Rod | 96657800 | |
| 17 | Connection Hose 600 mm M8x0,75 G3/8 | 95001000 | |
| 18 | O-Ring 7x1,5 | 98422000 | |
| 19 | Hollow Set Screw M4x5 | 92846000 | |
| a | Pop Up Waste | 94139800 | |
| b | Fixation Extension 35 mm | 13898000 | |
Spare For Construction Year: 01/03 - 06/09
| 1 | Handle | 35093800 | |
| 2 | Screw Cover | 96681000 | N/A |
| 3 | Flange | 96682800 | |
| 4 | Nut | 96690000 | |
| 5 | O-Ring 27x2,5 | 98149000 | N/A |
| 6 | Cartridge, Assy | 92730000 | |
| 7 | Locking Screw for Handle | 96059000 | |
| 8 | Seal | 95008000 | |
| 9 | O-Ring 11x2 | 98127000 | |
| 10 | Spout CPL | 97813800 | N/A |
| 11 | O-Ring 7x2 | 98419000 | |
| 12 | Aerator Laminar M16x1 (7 l/min) | 96684800 | N/A |
| 13 | Flat Seal | 98749000 | |
| 14 | Fixing Set (Ø 32) | 13961000 | |
| 15 | Lever Collar | 97548000 | |
| 16 | Pull Rod | 96657800 | |
| 17 | Connection Hose 600 mm M8x0,75 G3/8 | 95001000 | |
| 18 | O-Ring 7x1,5 | 98422000 | |
| 19 | Hollow Set Screw M4x5 | 92846000 | |
| a | Pop Up Waste | 94139800 | |
| b | Fixation Extension 35 mm | 13898000 | |
Sort
Showing 3 of 3 Products
Hansgrohe Axor Single Lever Bidet Mixer 35202800 Spare Parts
Showing products 1 to 3 of 3
£0.00 Inc. VAT
£0.00 ex. VAT
Hansgrohe Axor Single Lever Bidet Mixer 35202800 Spare Parts
£116.67 Inc. VAT
£97.23 ex. VAT
£140.00

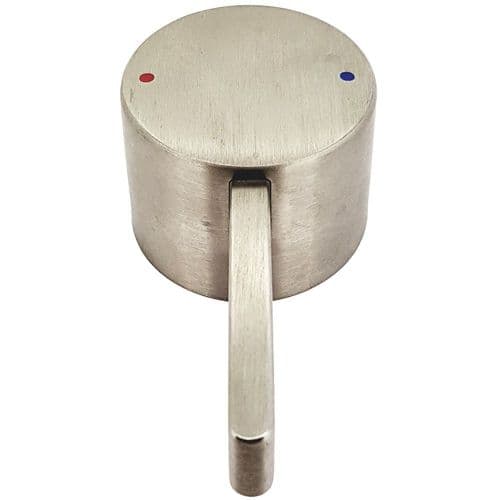

Hansgrohe Axor Handle 35093800
