Hansgrohe Axor Starck Chrome Electronic Basin Mixer 10101000 Spare Parts

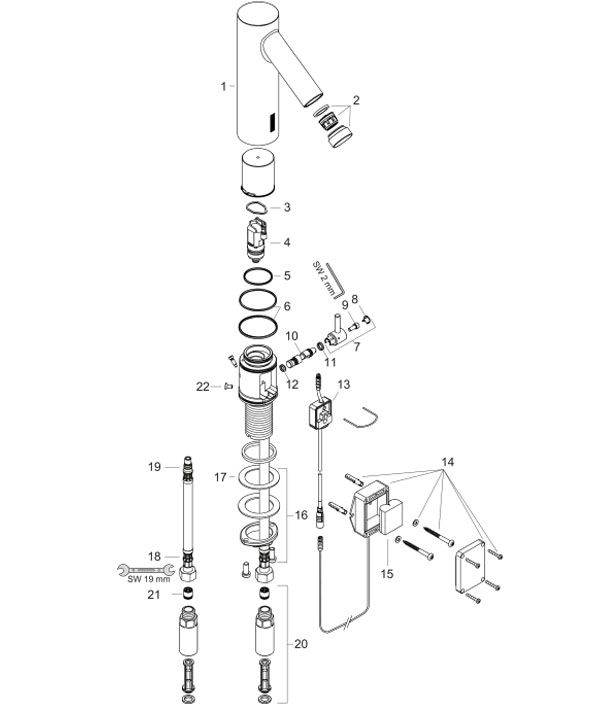

Spare For Construction Year: 02/16

1	Mixer-Hood	92301000
2	Aerator M24x1 (5 l/min)	95380000	N/A
3	O-Ring 17x2	98199000
4	Solenoid Valve	95654000
5	O-Ring 31x2	98204000
6	O-Ring 41x2	98212000
7	Sliding Gear Lever	92378000	N/A
8	Cover Cap	95433000
9	Hexagon Socket Screw M4x10	97661000
10	Mixing Shaft	92377000	N/A
11	O-Ring 6x2	98458000
12	O-Ring 5x2	98215000
13	Electronics	92346000	N/A
14	Battery Box	98801000
15	Battery CR-P2 / 6V lithium	97399000
16	Fixing Set (Ø 32)	13961000
17	Lever Collar	97548000
18	Connection Hose 450 mm M8x0,75 G3/8	98809000
19	O-Ring 7x1,5	98422000
20	Back Flow Preventor Cartridge with Microfilter	92297000	N/A
21	Non Return Valve DW 10	96456000
22	Screw	93272000	N/A
a	Fixation Extension 35 mm	13898000
b	Filter Packing	95291000

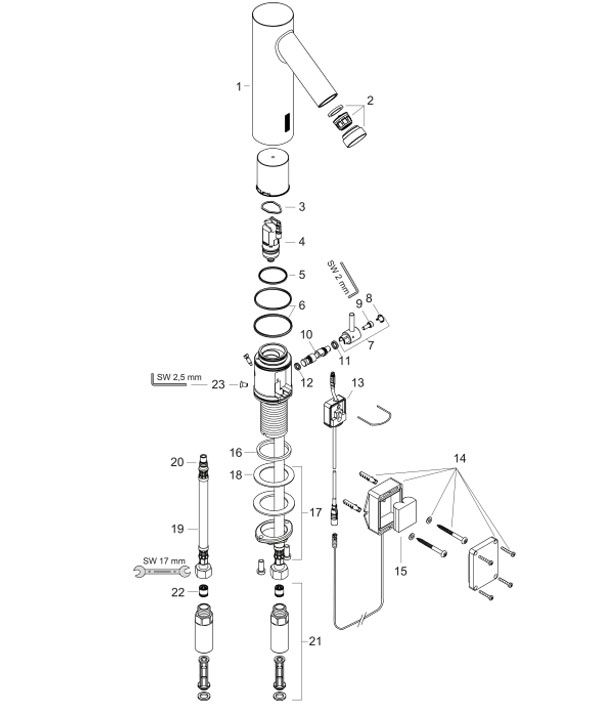

Spare For Construction Year: 09/14 - 01/16

1	Mixer-Hood	92301000
2	Aerator M24x1 (5 l/min)	95379000
3	O-Ring 17x2	98199000
4	Solenoid Valve	95654000
5	O-Ring 31x2	98204000
6	O-Ring 41x2	98212000
7	Sliding Gear Lever	92378000	N/A
8	Cover Cap	95433000
9	Hexagon Socket Screw M4x10	97661000
10	Mixing Shaft	92377000	N/A
11	O-Ring 6x2	98458000
12	O-Ring 5x2	98215000
13	Electronics	92346000	N/A
14	Battery Box	98801000
15	Battery CR-P2 / 6V lithium	97399000
16	Flat Seal	98749000
17	Fixing Set (Ø 32)	13961000
18	Lever Collar	97548000
19	Connection Hose 450 mm	92345000	N/A
20	O-Ring 7x1,5	98422000
21	Back Flow Preventor Cartridge with Microfilter	92297000	N/A
22	Non Return Valve DW 10	96456000
23	Screw	93272000	N/A
a	Fixation Extension 35 mm	13898000

Spare For Construction Year: 05/14 - 08/14

1	Mixer-Hood	92301000
2	Aerator M24x1 (5 l/min)	95379000
3	Solenoid Valve	95654000
4	O-Ring 17x2	98199000
5	O-Ring 31x2	98204000
6	O-Ring 41x2	98212000
7	Sliding Gear Lever	92378000	N/A
8	Cover Cap	95433000
9	Hexagon Socket Screw M4x10	97661000
10	Mixing Shaft	92377000	N/A
11	O-Ring 6x2	98458000
12	O-Ring 5x2	98215000
13	Electronics	92346000	N/A
14	Battery Box	98801000
15	Battery CR-P2 / 6V lithium	97399000
16	Fixing Set (Ø 32)	13961000
17	Lever Collar	97548000
18	Connection Hose 450 mm M8x0,75 G3/8	98809000
19	O-Ring 7x1,5	98422000
20	Back Flow Preventor Cartridge with Microfilter	92297000	N/A
21	Non Return Valve DW 10	96456000
22	Screw	93272000	N/A
a	Fixation Extension 35 mm	13898000
b	Filter Packing	95291000

Spare For Construction Year: 04/10 - 04/14

1	Mixer-Hood	92301000
2	Aerator M24x1 (5 l/min)	95379000
3	Electronics incl. Solenoid Valve	98799000
4	Solenoid Valve	95654000
5	O-Ring 31x2	98204000
6	O-Ring 40x2,5	98399000
7	Mixing Shaft	92209000
8	O-Ring 7x2	98419000
9	O-Ring 6x2	98458000
10	O-Ring 5x2	98215000
11	Battery Box	98801000
12	Battery	97399000
13	Fixing Set (Ø 32)	13961000
14	Sealing Washer	97825000
15	Lever Collar	97548000
16	Connection Hose 450 mm M8x0,75 G3/8	98809000
17	O-Ring 7x1,5	98422000
18	Non Return Valve DW 10	96456000
19	Filter Packing	95291000
20	Angle Valve with Microfilter	13904000
21	Sliding Gear Lever	92384000	N/A
22	Sealing Set	95581000
23	Screw	93272000	N/A
a	Fixation Extension 35 mm	13898000

Spare For Construction Year: 06/07 - 12/09

1	Aerator M24x1 (6 l/min)	98989000
2	Electronics incl. Solenoid Valve	98799000
3	O-Ring 40x2,5	98399000
4	O-Ring 6x2	98458000
5	Mixing Shaft	92209000
6	O-Ring 7x2	98419000
7	O-Ring 5x2	98215000
8	Battery Box	98801000
9	Battery	97399000
10	Fixing Set (Ø 32)	13961000
11	Sealing Washer	97825000
12	Lever Collar	97548000
13	Connection Hose 450 mm M8x0,75 G3/8	98809000
14	O-Ring 7x1,5	98422000
15	Non Return Valve DW 10	96456000
16	Filter Packing	95291000
17	Sliding Gear Lever	92384000	N/A
18	Sealing Set	95581000
19	O-Ring 17x2	98199000
a	Angle Valve with Microfilter	13904000
b	Fixation Extension 35 mm	13898000
