Hansgrohe AXOR Starck Chrome Single Kitchen Lever With Pull Out Spray 10821000 Spare Parts
SPARE FOR CONSTRUCTION YEAR 09/17
| 1 | Spout CPL | 95907000 | N/A |
| 2 | Nut | 92755000 |  |
| 3 | Filter | 97735000 | |
| 4 | Handspray | 95908000 | |
| 5 | Set of Non Return Valves DW 15 | 94074000 | |
| 6 | O-Ring 18x1,5 | 98231000 | N/A |
| 7 | Aerator Laminar M22x1 (15 l/min) | 95909000 | |
| 8 | O-Ring 20x1 | 98140000 | N/A |
| 9 | Service Tool | 95910000 | N/A |
| 10 | Set of Lever Collars | 98365000 | N/A |
| 11 | O-Ring 21x2,5 | 98211000 | N/A |
| 12 | Flange | 97155000 | |
| 13 | Handle | 95893000 | |
| 14 | Nut | 97157000 | |
| 15 | O-Ring 30x2 | 98186000 | |
| 16 | Cartridge, Assy | 96339000 | |
| 17 | O-Ring 21,95x1,78 | 95169000 | |
| 18 | Flat Seal | 98749000 | |
| 19 | Support | 97523000 | |
| 20 | Fixing Set (Ø 34) | 95049000 | |
| 21 | Lever Collar | 97548000 | |
| 22 | Weight | 92500000 | |
| 23 | Hose 1,50 m | 95507000 | |
| 24 | Connection Hose 600 mm M10x1 | 95561000 | |
| 25 | O-Ring 8x1,75 | 97827000 | |
| 26 | Connection Hose 900 mm M8x0,75 G3/8 | 98758000 | |
| 27 | O-Ring 7x1,5 | 98422000 | |
| 28 | Sealing Set | 95581000 | |
| a | Service Tool for Disassembling the Handle | 92124000 | |
| b | Grease | 90920000 | N/A |
SPARE FOR CONSTRUCTION YEAR 08/13 - 08/17
| 1 | Spout CPL | 95907000 | N/A |
| 2 | Nut | 92755000 | |
| 3 | Filter | 97735000 | |
| 4 | Handspray | 95908000 | |
| 5 | Non Return Valve | 96737000 | |
| 6 | O-Ring 18x1,5 | 98231000 | N/A |
| 7 | Aerator Laminar M22x1 (15 l/min) | 95909000 | |
| 8 | O-Ring 20x1 | 98140000 | N/A |
| 9 | Service Tool | 95910000 | N/A |
| 10 | Sealing Set | 95581000 | |
| 11 | O-Ring 21x2,5 | 98211000 | N/A |
| 12 | Set of Lever Collars | 98365000 | N/A |
| 13 | Flange | 97155000 | |
| 14 | Handle | 95893000 | |
| 15 | Nut | 97157000 | |
| 16 | O-Ring 30x2 | 98186000 | |
| 17 | Cartridge, Assy | 96339000 | |
| 18 | Flat Seal | 98749000 | |
| 19 | Support | 97523000 | |
| 20 | Fixing Set (Ø 34) | 95049000 | |
| 21 | Weight | 92500000 | |
| 22 | Hose 1,50 m | 95507000 | |
| 23 | Connection Hose 600 mm M10x1 | 95561000 | |
| 24 | Connection Hose 900 mm M8x0,75 G3/8 | 98758000 | |
| 25 | O-Ring 7x1,5 | 98422000 | |

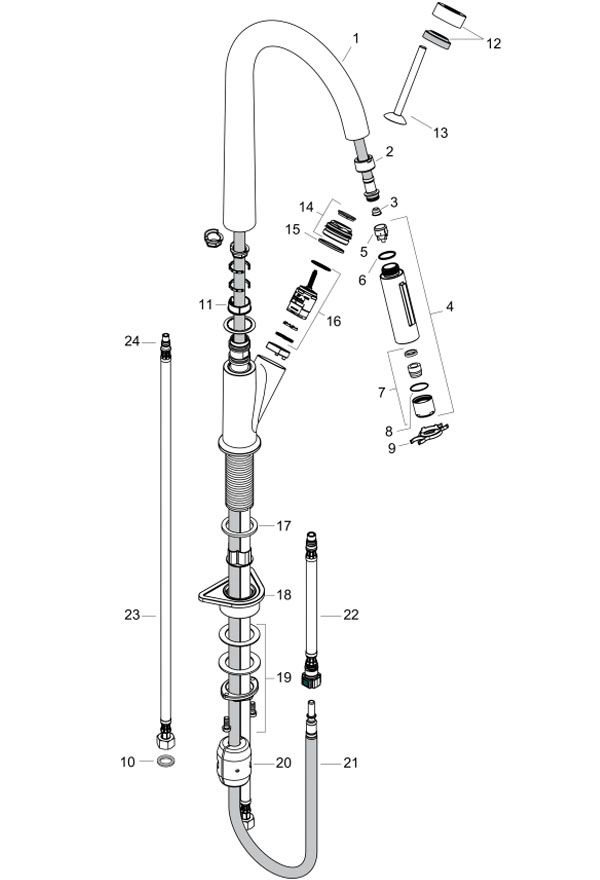

SPARE FOR CONSTRUCTION YEAR 11/11 - 07/13
| 1 | Spout CPL | 95907000 | N/A |
| 2 | Nut | 92755000 | |
| 3 | Filter | 97735000 | |
| 4 | Handspray | 95908000 | |
| 5 | Non Return Valve | 96737000 | |
| 6 | O-Ring 18x1,5 | 98231000 | N/A |
| 7 | Aerator Laminar M22x1 (15 l/min) | 95909000 | |
| 8 | O-Ring 20x1 | 98140000 | N/A |
| 9 | Service Tool | 95910000 | N/A |
| 10 | Sealing Set | 95581000 | |
| 11 | Set of Lever Collars | 98365000 | N/A |
| 12 | Flange | 97155000 | |
| 13 | Handle | 95893000 | |
| 14 | Nut | 97157000 | |
| 15 | O-Ring 30x2 | 98186000 | |
| 16 | Cartridge, Assy | 96339000 | |
| 17 | Flat Seal | 98749000 | |
| 18 | Support | 97523000 | |
| 19 | Fixing Set (Ø 34) | 95049000 | |
| 20 | Weight | 92500000 | |
| 21 | Hose 1,50 m | 95507000 | |
| 22 | Connection Hose 600 mm M10x1 | 95561000 | |
| 23 | Connection Hose 900 mm M8x0,75 G3/8 | 98758000 | |
| 24 | O-Ring 7x1,5 | 98422000 | |
Sort
Showing 10 of 10 Products
Hansgrohe AXOR Starck Chrome Single Kitchen Lever With Pull Out Spray 10821000 Spare Parts
Showing products 1 to 10 of 10
£0.00 Inc. VAT
£0.00 ex. VAT
Hansgrohe AXOR Starck Single Kitchen Lever With Pull Out Spray 10821000 Spare Parts
£43.33 Inc. VAT
£36.11 ex. VAT
£51.99
Hansgrohe AXOR Starck 10821000 Aerator Laminar M22x1 (15 l/min) 95909000
£30.00 Inc. VAT
£25.00 ex. VAT
£36.00
Hansgrohe AXOR Starck 10821000 Connection Hose 900 mm M8x0,75 G3/8 98758000
£36.67 Inc. VAT
£30.56 ex. VAT
£44.00
Hansgrohe AXOR Starck 10821000 FLANGE REPLACEMENT ONLY 97155000
£146.67 Inc. VAT
£122.23 ex. VAT
£176.00
Hansgrohe AXOR Starck 10821000 Handle REPLACEMENT ONLY 95893000
£146.67 Inc. VAT
£122.23 ex. VAT
£176.00
Hansgrohe AXOR Starck 10821000 Handspray REPLACEMENT ONLY 95908000
£69.17 Inc. VAT
£57.64 ex. VAT
£83.00
Hansgrohe AXOR Starck 10821000 Hose 1,50m 95507000
£30.00 Inc. VAT
£25.00 ex. VAT
£36.00

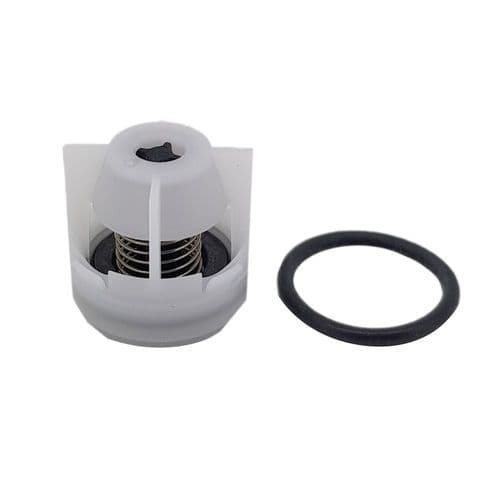

Hansgrohe AXOR Starck 10821000 Non Return Valve REPLACEMENT ONLY 96737000
