Hansgrohe Axor Starck Electronic Chrome Basin Mixer 10106000 Spare Parts

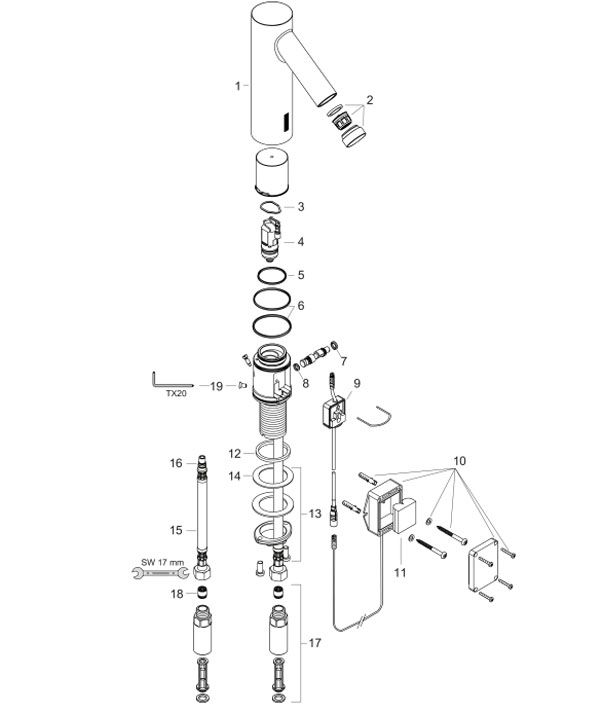

Spare For Construction Year: 02/16

1	Mixer-Hood	92302000
2	Aerator M24x1 (5 l/min)	95379000
3	O-Ring 17x2	98199000
4	Solenoid Valve	95654000
5	O-Ring 31x2	98204000
6	O-Ring 41x2	98212000
7	O-Ring 6x2	98458000
8	O-Ring 5x2	98215000
9	Electronics	92346000	N/A
10	Battery Box	98801000
11	Battery CR-P2 / 6V lithium	97399000
12	Flat Seal	98749000
13	Fixing Set (Ø 32)	13961000
14	Lever Collar	97548000
15	Connection Hose 450 mm M8x0,75 G3/8	98809000
16	O-Ring 7x1,5	98422000
17	Back Flow Preventor Cartridge with Microfilter	92297000	N/A
18	Non Return Valve DW 10	96456000
19	Screw	93272000	N/A
a	Fixation Extension 35 mm	13898000

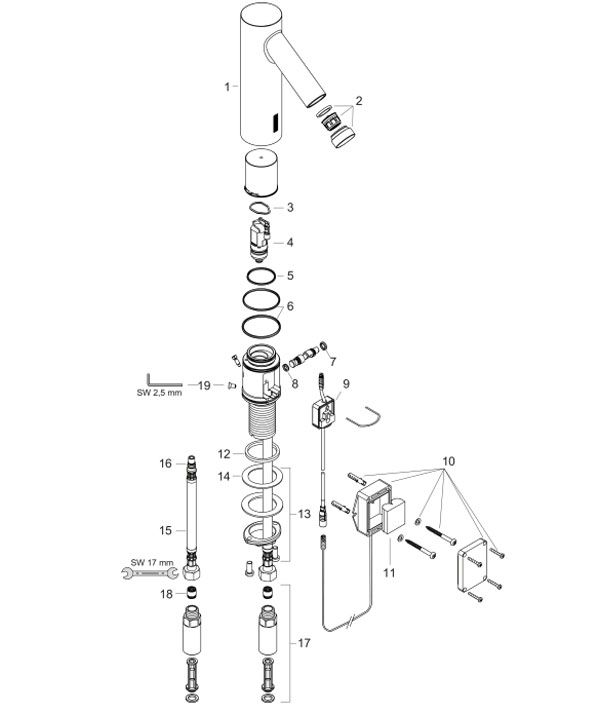

Spare For Construction Year: 09/14 - 01/16

1	Mixer-Hood	92302000
2	Aerator M24x1 (5 l/min)	95379000
3	O-Ring 17x2	98199000
4	Solenoid Valve	95654000
5	O-Ring 31x2	98204000
6	O-Ring 41x2	98212000
7	O-Ring 6x2	98458000
8	O-Ring 5x2	98215000
9	Electronics	92346000	N/A
10	Battery Box	98801000
11	Battery CR-P2 / 6V lithium	97399000
12	Flat Seal	98749000
13	Fixing Set (Ø 32)	13961000
14	Lever Collar	97548000
15	Connection Hose 450 mm	92345000	N/A
16	O-Ring 7x1,5	98422000
17	Back Flow Preventor Cartridge with Microfilter	92297000	N/A
18	Non Return Valve DW 10	96456000
19	Screw	93272000	N/A
a	Fixation Extension 35 mm	13898000

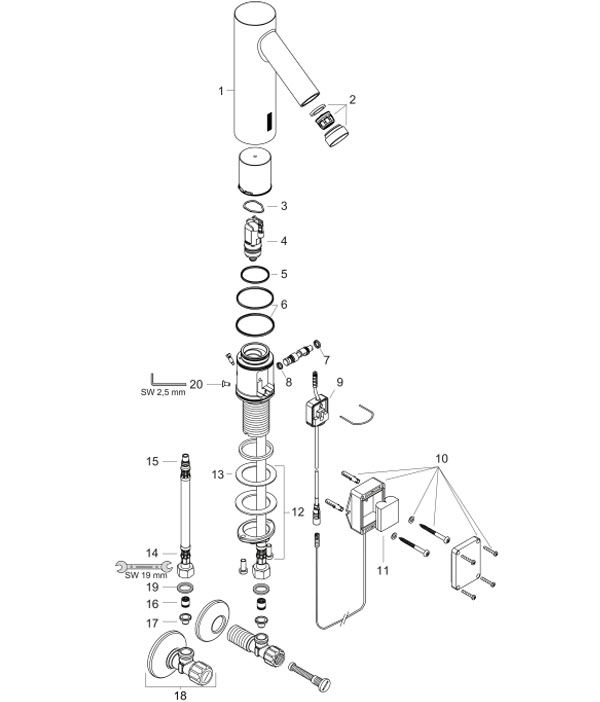

Spare For Construction Year: 05/14 - 08/14

1	Mixer-Hood	92302000
2	Aerator M24x1 (5 l/min)	95379000
3	O-Ring 17x2	98199000
4	Solenoid Valve	95654000
5	O-Ring 31x2	98204000
6	O-Ring 41x2	98212000
7	O-Ring 6x2	98458000
8	O-Ring 5x2	98215000
9	Electronics	92346000	N/A
10	Battery Box	98801000
11	Battery CR-P2 / 6V lithium	97399000
12	Fixing Set (Ø 32)	13961000
13	Lever Collar	97548000
14	Connection Hose 450 mm M8x0,75 G3/8	98809000
15	O-Ring 7x1,5	98422000
16	Non Return Valve DW 10	96456000
17	Filter Packing	95291000
18	Angle Valve with Microfilter	13904000
19	Sealing Set	95581000
20	Screw	93272000	N/A
a	Fixation Extension 35 mm	13898000

Spare For Construction Year: 04/10 - 04/14

1	Mixer-Hood	92302000
2	Aerator M24x1 (5 l/min)	95379000
3	Electronics incl. Solenoid Valve	98799000
4	Solenoid Valve	95654000
5	O-Ring 31x2	98204000
6	O-Ring 40x2,5	98399000
7	Mixing Shaft	92209000
8	O-Ring 5x2	98215000
9	O-Ring 6x2	98458000
10	Battery Box	98801000
11	Battery	97399000
12	Fixing Set (Ø 32)	13961000
13	Sealing Washer	97825000
14	Lever Collar	97548000
15	Connection Hose 450 mm M8x0,75 G3/8	98809000
16	O-Ring 7x1,5	98422000
17	Non Return Valve DW 10	96456000
18	Filter Packing	95291000
19	Angle Valve with Microfilter	13904000
20	Sealing Set	95581000
21	Screw	93272000	N/A
a	Fixation Extension 35 mm	13898000

Spare For Construction Year: 06/07 - 12/09

1	Aerator M24x1 (6 l/min)	98989000
2	Electronics incl. Solenoid Valve	98799000
3	O-Ring 40x2,5	98399000
4	Mixing Shaft	92209000
5	O-Ring 6x2	98458000
6	O-Ring 5x2	98215000
7	Battery Box	98801000
8	Battery	97399000
9	Fixing Set (Ø 32)	13961000
10	Sealing Washer	97825000
11	Lever Collar	97548000
12	Connection Hose 450 mm M8x0,75 G3/8	98809000
13	O-Ring 7x1,5	98422000
14	Non Return Valve DW 10	96456000
15	Filter Packing	95291000
16	Angle Valve with Microfilter	13904000
17	Sealing Set	95581000
18	Screw	93272000	N/A
a	Fixation Extension 35 mm	13898000
