Hansgrohe Axor Starck X Chrome Electronic Basin Mixer 10185000 Spare Parts

Spare For Construction Year: 09/14 - 03/18

1	O-Ring 46x2	98195000
2	Spray Former	98867000
3	Aerator Laminar (7 l/min)	98610000
4	Hollow Set Screw M5x6	97768000
5	O-Ring 17x2	98199000
6	Solenoid Valve	95654000
7	O-Ring 31x2	98204000
8	O-Ring 41x2	98212000
9	Mixing Shaft	92209000
10	O-Ring 6x2	98458000
11	O-Ring 5x2	98215000
12	Sliding Gear Lever	92378000	N/A
13	Hexagon Socket Screw M4x10	97661000
14	Cover Cap	95433000
15	Electronics	92370000	N/A
16	Transformer	98800000
17	Flat Seal	98749000
18	Fixing Set (Ø 32)	13961000
19	Lever Collar	97548000
20	Connection Hose 450 mm	92345000	N/A
21	O-Ring 7x1,5	98422000
22	Back Flow Preventor Cartridge with Microfilter	92297000	N/A
23	Non Return Valve DW 10	96456000
24	Sealing Set	95581000
25	Screw	93272000	N/A
a	Fixation Extension 35 mm	13898000

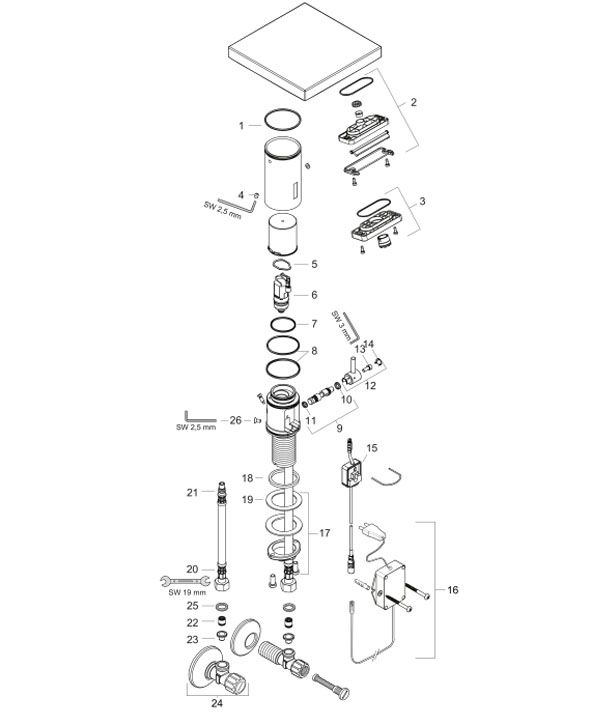

Spare For Construction Year: 07/14 - 08/14

1	O-Ring 46x2	98195000
2	Spray Former	98867000
3	Hollow Set Screw M5x6	97768000
4	Aerator Laminar (7 l/min)	98610000
5	O-Ring 17x2	98199000
6	Solenoid Valve	95654000
7	O-Ring 31x2	98204000
8	O-Ring 41x2	98212000
9	Mixing Shaft	92209000
10	O-Ring 6x2	98458000
11	O-Ring 5x2	98215000
12	Sliding Gear Lever	92378000	N/A
13	Hexagon Socket Screw M4x10	97661000
14	Cover Cap	95433000
15	Electronics	92370000	N/A
16	Transformer	98800000
17	Fixing Set (Ø 32)	13961000
18	Sealing Washer	97825000
19	Lever Collar	97548000
20	Connection Hose 450 mm M8x0,75 G3/8	98809000
21	O-Ring 7x1,5	98422000
22	Non Return Valve DW 10	96456000
23	Filter Packing	95291000
24	Angle Valve with Microfilter	13904000
25	Sealing Set	95581000
26	Screw	93272000	N/A
a	Fixation Extension 35 mm	13898000

Spare For Construction Year: 04/10 – 06/14

1	Mixer-Hood	92304000
2	Spray Former	98867000
3	Aerator Laminar (7 l/min)	98610000
4	O-Ring 46x2	98195000
5	Hollow Set Screw M5x6	97768000
6	Electronics incl. Solenoid Valve	98849000
7	Solenoid Valve	95654000
8	O-Ring 40x2,5	98399000
9	O-Ring 31x2	98204000
10	Mixing Shaft	92209000
11	O-Ring 6x2	98458000
12	O-Ring 5x2	98215000
13	Transformer	98800000
14	Fixing Set (Ø 32)	13961000
15	Sealing Washer	97825000
16	Lever Collar	97548000
17	Connection Hose 450 mm M8x0,75 G3/8	98809000
18	O-Ring 7x1,5	98422000
19	Non Return Valve DW 10	96456000
20	Filter Packing	95291000
21	Angle Valve with Microfilter	13904000
22	Adapter	97693000
23	Sealing Set	95581000
24	Screw	93272000	N/A
a	Fixation Extension 35 mm	13898000

Spare For Construction Year: 06/07 - 03/10

1	Spray Former	98867000
2	Aerator Laminar (7 l/min)	98610000
3	O-Ring 46x2	98195000
4	Hollow Set Screw M5x6	97768000
5	Electronics incl. Solenoid Valve	98849000
6	Mixing Shaft	92209000
7	O-Ring 6x2	98458000
8	O-Ring 5x2	98215000
9	Transformer	98800000
10	Fixing Set (Ø 32)	13961000
11	Sealing Washer	97825000
12	Lever Collar	97548000
13	Connection Hose 450 mm M8x0,75 G3/8	98809000
14	O-Ring 7x1,5	98422000
15	Non Return Valve DW 10	96456000
16	Filter Packing	95291000
17	Adapter	97693000
18	Sealing Set	95581000
19	Screw	93272000	N/A
a	Angle Valve with Microfilter	13904000
b	Fixation Extension 35 mm	13898000
