Hansgrohe Axor Uno Chrome 230 Basin Mixer Swivel Spout 38040000 Spare Parts

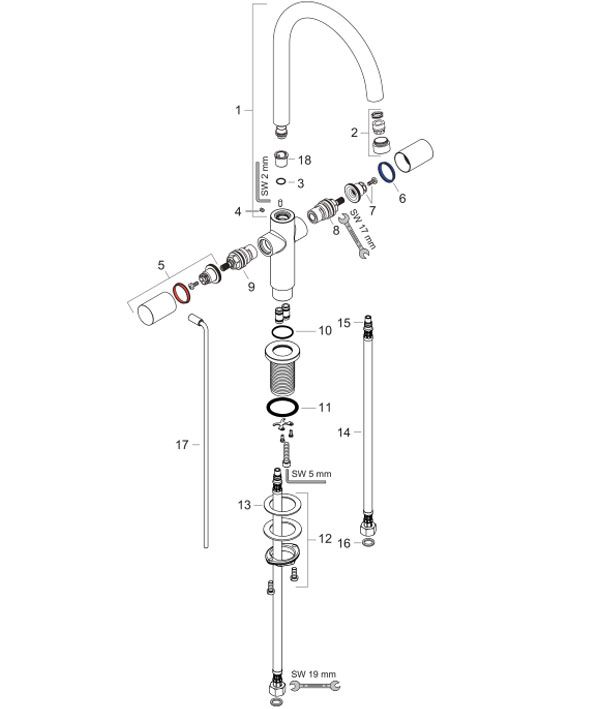

Spare For Construction Year: 08/14 - 12/18

1	Spout CPL	97363000
2	Aerator M18x1 (5 l/min)	95387000
3	O-Ring 11x2	98127000
4	Hollow Set Screw M4x5	98731000
5	Handle	38093000
6	Set of Color-Rings Cold / Hot Water	96319000
7	Handle Fixing Set	94184000
8	Shut Off Unit Right Closing	94009000
9	Shut Off Unit Left Closing	94008000
10	O-Ring 26x1,5	98390000
11	O-Ring 34x4	98155000
12	Fixing Set (Ø 32)	13961000
13	Lever Collar	97548000
14	Connection Hose 600 mm M8x0,75 G3/8	96556000
15	O-Ring 7x1,5	98422000
16	Sealing Set	95581000
17	Pull Rod	95701000
18	Lever Collar	92849000	N/A
a	Pop Up Waste	94139000
b	Fixation Extension 35 mm	13898000

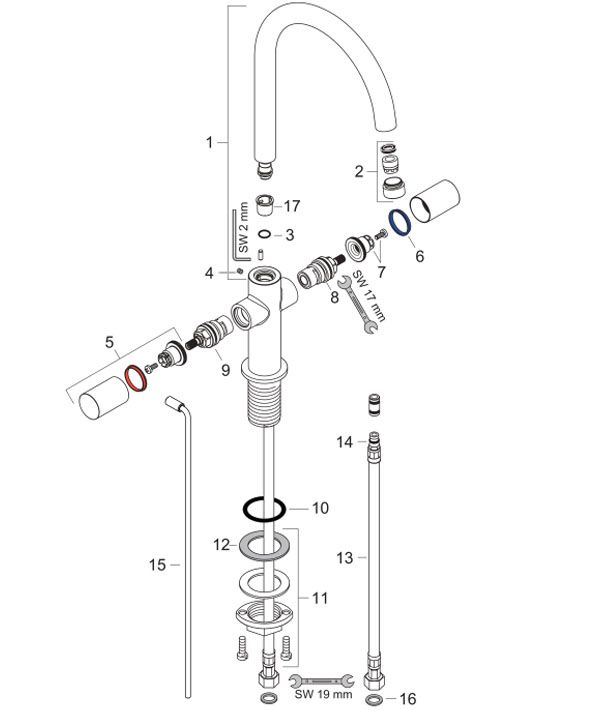

Spare For Construction Year: 10/10 - 07/14

1	Spout CPL	97363000
2	Aerator M18x1 (5 l/min)	95387000
3	O-Ring 11x2	98127000
4	Hollow Set Screw M4x5	98731000
5	Handle	38093000
6	Set of Color-Rings Cold / Hot Water	96319000
7	Handle Fixing Set	94184000
8	Shut Off Unit Right Closing	94009000
9	Shut Off Unit Left Closing	94008000
10	O-Ring 34x4	98155000
11	Fixing Set (Ø 32)	13961000
12	Lever Collar	97548000
13	Connection Hose 450 mm M10x1 G3/8	96507000
14	O-Ring 7x1,5	98422000
15	Pull Rod	95701000
16	Sealing Set	95581000
17	Lever Collar	92849000	N/A
a	Pop Up Waste	94139000
b	Fixation Extension 35 mm	13898000

Spare For Construction Year: 01/10 - 09/10

1	Spout CPL	97363000
2	Aerator M18x1 (5 l/min)	95387000
3	O-Ring 11x2	98127000
4	Hollow Set Screw M4x5	98731000
5	Handle	38093000
6	Set of Color-Rings Cold / Hot Water	96319000
7	Handle Fixing Set	94184000
8	Shut Off Unit Left Closing	94008000
9	Shut Off Unit Right Closing	94009000
10	O-Ring 34x4	98155000
11	Fixing Set (Ø 32)	13961000
12	Lever Collar	97548000
13	Connection Hose 450 mm M10x1 G3/8	96507000
14	O-Ring 8x1,75	97827000
15	Pull Rod	94083000
16	Lever Collar	92849000	N/A
a	Pop Up Waste	94139000
b	Fixation Extension 35 mm	13898000

Spare For Construction Year: 09/04 - 12/09

1	Handle	38093000
2	Set of Color-Rings Cold / Hot Water	96319000
3	Handle Fixing Set	94184000
4	Shut Off Unit Left Closing	94008000
5	Shut Off Unit Right Closing	94009000
6	Hollow Set Screw M4x5	98731000
7	Spout CPL	97363000
8	Aerator Laminar M18x1 (7 l/min)	96911000	N/A
9	Fixing Set (Ø 32)	13961000
10	Connection Hose 450 mm M10x1 G3/8	96507000
11	O-Ring 8x1,75	97827000
12	Pull Rod	94083000
13	O-Ring 11x2	98127000
14	O-Ring 34x4	98155000
15	Lever Collar	97548000
16	Lever Collar	92849000	N/A
a	Pop Up Waste	94139000
b	Supply Pipe 490 mm	96786000
c	Fixation Extension 35 mm	13898000
