Hansgrohe Talis E Single Lever Basin Mixer with Pop-Up Waste Set 31511000 Spare Parts

Spare For Construction Year: 04/17 - 12/17

1	Handle	98339000
2	Screw Cover	96338000
3	Flange	97406000
4	Nut	97209000
5	O-Ring 32x2	98193000
6	Cartridge, Assy	92530000	N/A
7	Locking Screw for Handle	95140000
8	Seal	95008000
9	Adapter for Cartridge	98324000
10	O-Ring 30x2	98186000
11	O-Ring 35x2	92604000
12	Aerator M24x1 (15 l/min)	13913000
13	Screw M8 x 68	97736000
14	Seal	97608000
15	Fixing Set	96016000
16	Connection Hose 450 mm M8x0,75 G3/8	97206000
17	O-Ring 6,6x1,6	93019XXX	N/A
18	Pull Rod	96657000

Spare For Construction Year: 08/15 - 03/17

1	Handle	98339000
2	Screw Cover	96338000
3	Flange	97406000
4	Nut	97209000
5	O-Ring 32x2	98193000
6	Cartridge, Assy	92530000	N/A
7	Locking Screw for Handle	95140000
8	Seal	95008000
9	Adapter for Cartridge	98324000
10	O-Ring 30x2	98186000
11	O-Ring 35x2	92604000
12	Aerator M24x1 (15 l/min)	13913000
13	Seal	97608000
14	Screw M8 x 68	97736000
15	Fixing Set	96016000
16	Connection Hose 450 mm M8x0,75 G3/8	97206000
17	O-Ring 7x1,5	98422000
18	Sealing Set	95581000
19	Pull Rod	96657000

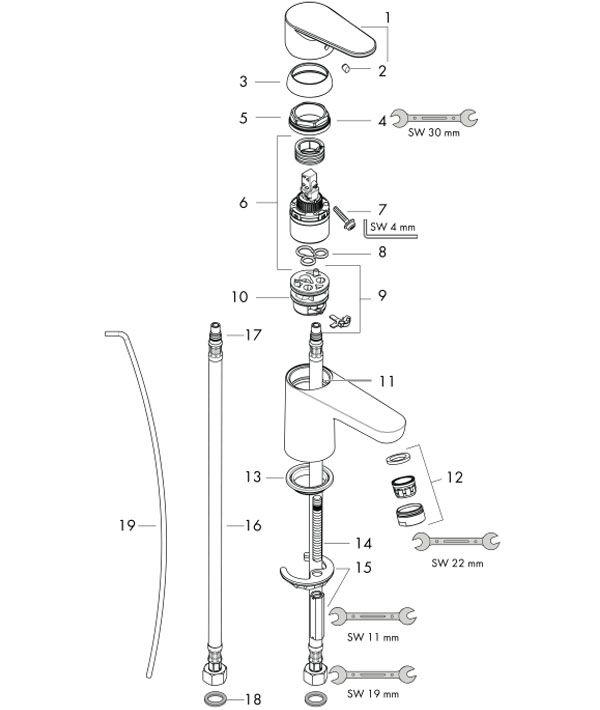

Spare For Construction Year: 07/12 - 07/15

1	Handle	98339000
2	Screw Cover	96338000
3	Flange	97406000
4	Nut	97209000
5	O-Ring 32x2	98193000
6	Cartridge, Assy	95730000
7	Locking Screw for Handle	95140000
8	Seal	95008000
9	Adapter for Cartridge	98324000
10	O-Ring 30x2	98186000
11	O-Ring 35x2	92604000
12	Aerator M24x1 (15 l/min)	13913000
13	Seal	97608000
14	Screw M8 x 68	97736000
15	Fixing Set	96016000
16	Connection Hose 450 mm M8x0,75 G3/8	97206000
17	O-Ring 7x1,5	98422000
18	Sealing Set	95581000
19	Pull Rod	96657000

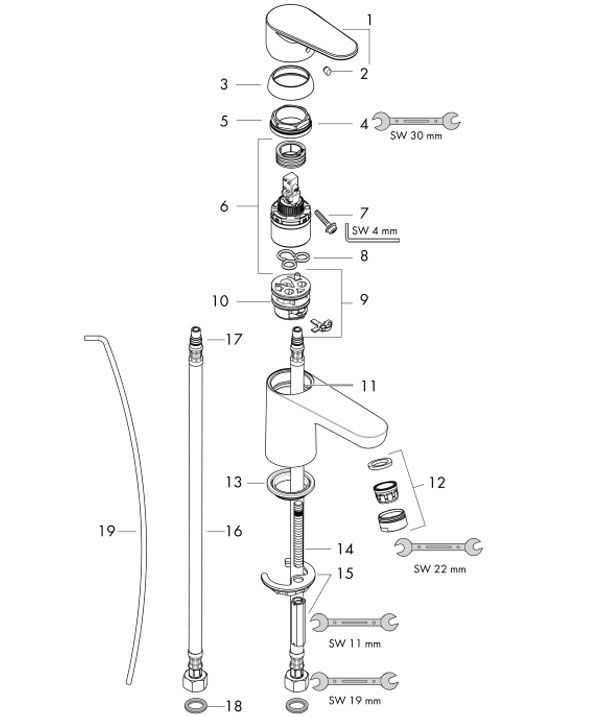

Spare For Construction Year: 04/10 - 06/12

1	Handle	31692000
2	Screw Cover	96338000
3	Flange	97406000
4	O-Ring 32x2	98193000
5	Nut	97209000
6	Cartridge, Assy	92530000	N/A
7	Locking Screw for Handle	95140000
8	Seal	95008000
9	Adapter for Cartridge	98750000
10	O-Ring 30x2	98186000
11	O-Ring 35x2	92604000
12	Aerator M24x1 (15 l/min)	13913000
13	Seal	97608000
14	Screw M8 x 68	97736000
15	Fixing Set	96016000
16	Connection Hose 450 mm M8x0,75 G3/8	97206000
17	O-Ring 7x1,5	98422000
18	Sealing Set	95581000
19	Pull Rod	96657000
