Hansgrohe Talis Single Lever Basin Mixer 80 with Pop-Up Waste 32040000 Spare Parts

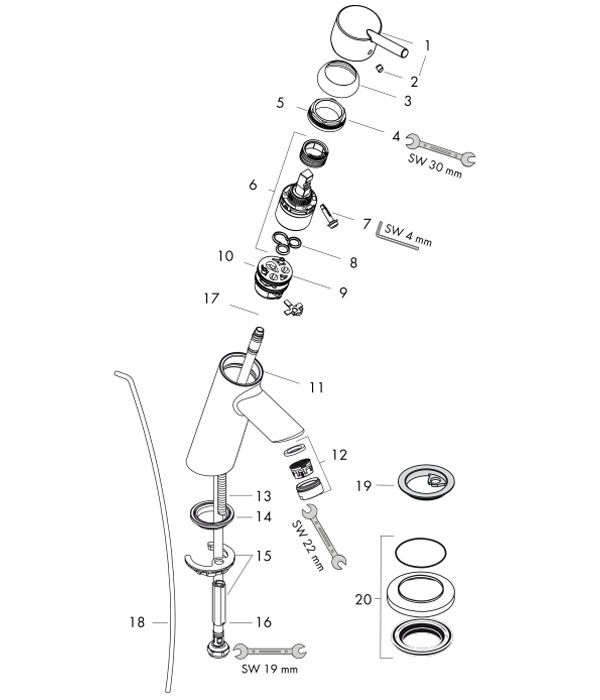

Spare For Construction Year: 04/17

1	Handle	32096000
2	Screw Cover	96338000
3	Flange	97406000
4	Nut	97209000
5	O-Ring 32x2	98193000
6	Cartridge, Assy	92730000
7	Locking Screw for Handle	95140000
8	Seal	95008000
9	Adapter for Cartridge	98750000
10	O-Ring 30x2	98186000
11	O-Ring 35x2	92604000
12	Aerator M24x1 (5 l/min)	13185000
13	Screw M8 x 68	97736000
14	Seal Ø 42	98722000
15	Fixing Set	96016000
16	Connection Hose 450 mm M8x0,75 G3/8	97206000
17	O-Ring 6,6x1,6	93019000	N/A
18	Pull Rod	96657000
19	Seal Ø 45	98996000
20	Compensation Escutcheon	32799000
a	Pop Up Waste	94139000
b	Service Set	98964000

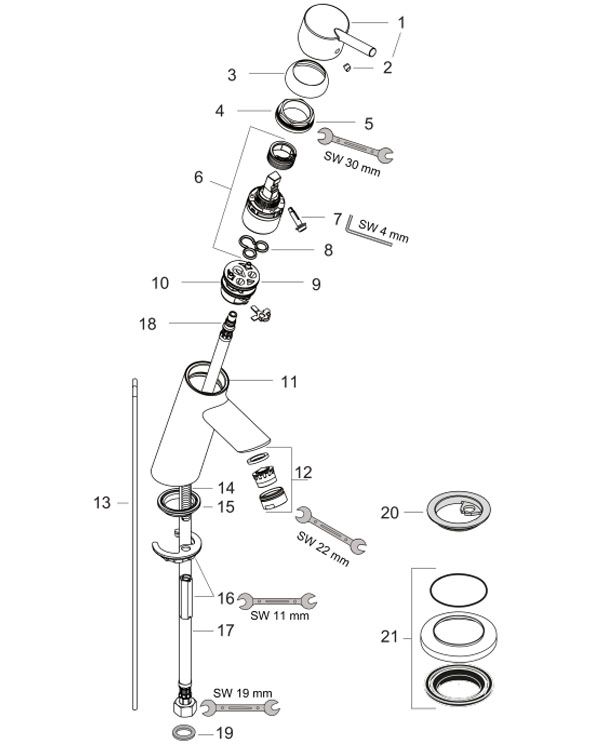

Spare For Construction Year: 10/10 - 03/17

1	Handle	32096000
2	Screw Cover	96338000
3	Flange	97406000
4	Nut	97209000
5	O-Ring 30x2	98186000
6	Cartridge, Assy	92730000
7	Locking Screw for Handle	95140000
8	Seal	95008000
9	Adapter for Cartridge	98750000
10	O-Ring 32x2	98193000
11	O-Ring 35x2	92604000
12	Aerator M24x1 (5 l/min)	13185000
13	Pull Rod	96657000
14	Seal Ø 42	98722000
15	Screw M8 x 68	97736000
16	Fixing Set	96016000
17	Connection Hose 450 mm M8x0,75 G3/8	97206000
18	O-Ring 7x1,5	98422000
19	Sealing Set	95581000
20	Seal Ø 45	98996000
21	Compensation Escutcheon	32799000
a	Service Set	98964000
b	Pop Up Waste	94139000

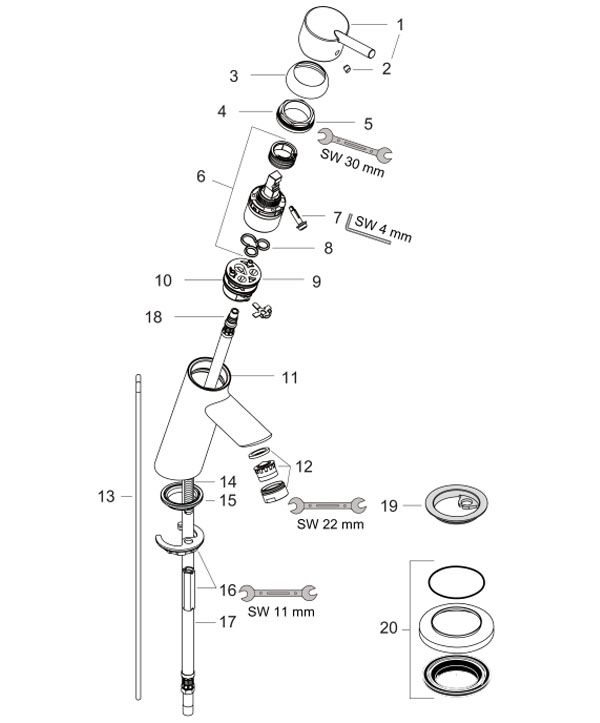

Spare For Construction Year: 01/10 - 09/10

1	Handle	32096000
2	Screw Cover	96338000
3	Flange	97406000
4	Nut	97209000
5	O-Ring 30x2	98186000
6	Cartridge, Assy	92730000
7	Locking Screw for Handle	95140000
8	Seal	95008000
9	Adapter for Cartridge	98750000
10	O-Ring 32x2	98193000
11	O-Ring 35x2	92604000
12	Aerator M24x1 (5 l/min)	13185000
13	Pull Rod	96657000
14	Seal Ø 42	98722000
15	Screw M8 x 68	97736000
16	Fixing Set	96016000
17	Connection Hose 450 mm M8x0,75 G3/8	97206000
18	O-Ring 7x1,5	98422000
19	Seal Ø 45	98996000
20	Compensation Escutcheon	32799000
a	Service Set	98964000
b	Pop Up Waste	94139000

Spare For Construction Year: 10/06 - 12/09

1	Handle	32096000
2	Screw Cover	96338000
3	Flange	97406000
4	Nut	97209000
5	O-Ring 30x2	98186000
6	Cartridge, Assy	92730000
7	Locking Screw for Handle	95140000
8	Seal	95008000
9	Adapter for Cartridge	98750000
10	O-Ring 32x2	98193000
11	O-Ring 35x2	92604000
12	Aerator M24x1 (7 l/min)	13085000
13	Pull Rod	96657000
14	Seal Ø 42	98722000
15	Screw M8 x 68	97736000
16	Fixing Set	96016000
17	Connection Hose 450 mm M8x0,75 G3/8	97206000
18	O-Ring 7x1,5	98422000
19	Seal Ø 45	98996000
20	Compensation Escutcheon	32799000
a	Service Set	98964000
b	Pop Up Waste	94139000
