Matki Eauzone Plus EPW Recess Hinged From Wall & Inline Panel Spare Parts (2009+)

If You Are Unable to Find The Matki Spare Part You Are Looking For!
 Please E-mail Us To Request A Price
sales@bathroomspareparts.co.uk

MODEL SIZE

EPW800	967-982mm
EPW900	1067-1082mm
EPW950	1117-1132mm
EPW1000	1167-1182mm
EPW1050	1217-1232mm
EPW1100	1267-1282mm
EPW1150	1317-1332mm
EPW1200	1367-1382mm
EPW1250	1417-1432mm
EPW1300	1467-1482mm
EPW1350	1517-1532mm
EPW1400	1567-1582mm
EPW1450	1617-1632mm
EPW1500	1667-1682mm
Height	2020mm
Model Handing Options

Spare Parts
Please Click on POA (Price On Application) to request a price if item is not built on our site yet.
sales@bathroomspareparts.co.uk

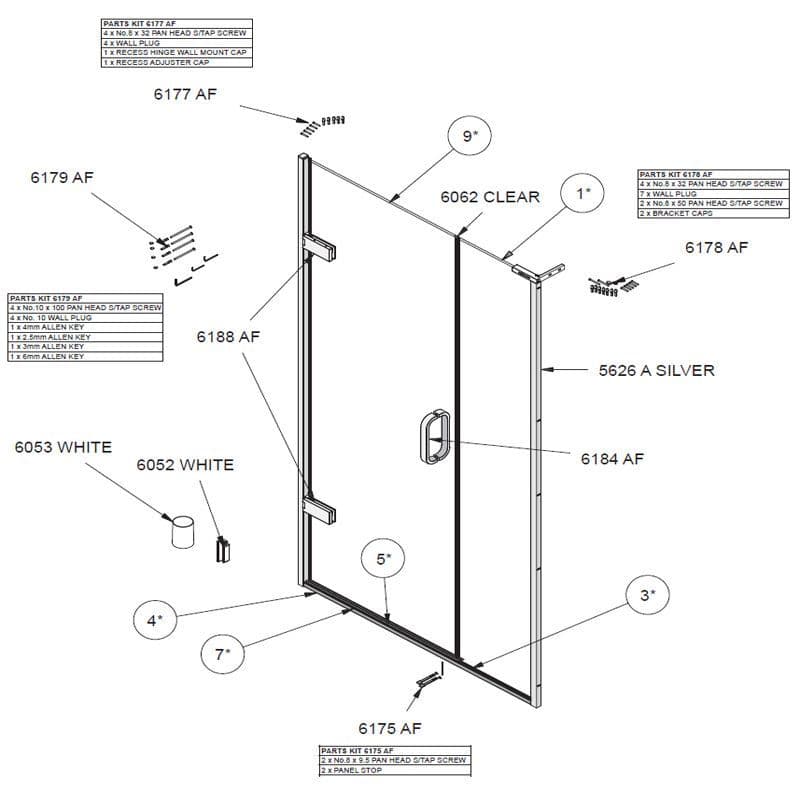

Item	Description	Part Number
	COMPLETE SEAL SET	SPEPWCSEATSET
2	WALL MOUNT	5626ASILVER
3	FIXED PANEL HORIZONTAL	SPECIFY MODEL SIZE
4	RECESS LOWER HORIZONTAL	SPECIFY MODEL SIZE
5	HORIZONTAL DOOR SEAL (650MM)	6055CLEAR
5	HORIZONTAL DOOR SEAL (750MM)	6056CLEAR
6	VERTICAL SEAL (CLOSURE SIDE)	6062CLEAR
7	HORIZONTAL CLIP IN COVER	SPECIFY MODEL SIZE
8	HANDLE (CURVED)	6184AF
8	HANDLE (LINIER)	6185AF
10	HINGE EXTRUSION STOP	6050ASILVER
11	N08 X 10MM CSK SCREW	1421ASILVER
12	WALL MOUNT EXTRUSION STOP	6049ASILVER
13	VERTICAL SEAL  (HINGE SIDE)	6065CLEAR
14	LH RECESS HINGE ADJUSTER (2011MM)	5687ASILVER
14	RH RECESS HINGE ADJUSTER (2011MM)	5688ASILVER
15	RECESS WALL MOUNT 15MM  (2013MM)	5686ASILVER
16	WALL MOUNT & HINGE PARTS KIT	6177AF
17	HINGE ASSEMBLY UPPER & LOWER (PAIR)	6188AF
18	WALL HINGE PARTS KIT	6179AF
19	WALL MOUNT & TOP BRACKET PARTS KIT	6178AF
20	HINGE PLATE GASKET	4559AF
21	HINGE GASKET	4560AF
22	ADJUSTMENT BLOCK GASKET	4561AF
23	ADJUSTMENT BLOCK	6040ASILVER
24	HINGE-GLASS INTERFACE (2MM)	6041BLACK
25	DOOR ASSEMBLY BLOCK	6052WHITE
26	DOOR ASSEMBLY SUPPORT	6053WHITE
27	WALL MOUNT GASKET (1984MM)	1752AF
28	RH TOP WALL BRACKET	6182AF
28	LH TOP WALL BRACKET	6183AF
34	INLINE PARTS KIT	6175AF

Matki Eauzone Plus EPW Full Installation Instructions
