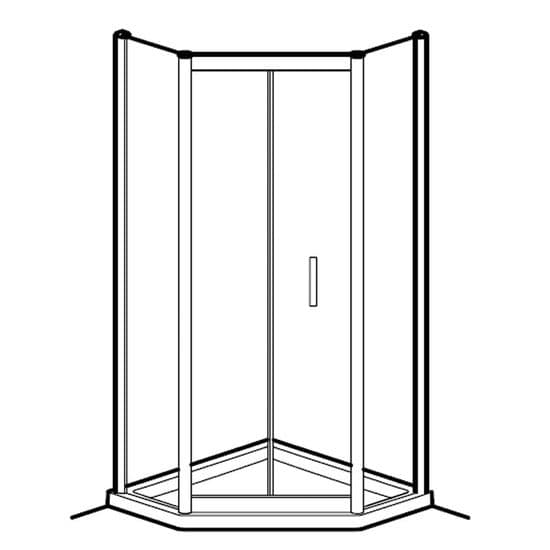

Matki New Colonade NIQ (1900) Quintess Infold Shower Door Spare Parts (2005-2013)

Model Size

NIQ825	830mm x 830mm x (HEIGHT 1900mm)
NIQ900	900mm x 900mm x (HEIGHT 1900mm)
NIQ1000	1000mm x 1000mm x (HEIGHT 1900mm)
NIQ1290	900mm x 1200mm x (HEIGHT 1900mm)
Age Revision	Year Of Production 2005-2013

NCI INFOLD DOOR Spare Parts
Please Click on POA (Price On Application) to request a price if item is not built on our site yet.
sales@bathroomspareparts.co.uk

Item	Description	Part Number
	HANDLE ASSEMBLY	SP NCI HANDLE
	FIXED HINGE SET (PAIR)	6147AF
	GUIDE HINGE SET (PAIR)	6146AF
	CENTER HINGE SET (EACH)	6148AF
31	CENTRE VERTICAL GASKET	2254CLEAR
32	VERTICAL SEAL HINGE SIDE	2255CLEAR
38	GLASS HINGE BUSH	5165BLACK
39	GLASS FIXING HINGE NUT	5123ASILVER
40	PLATE FIXING HINGE BOLT	5112ASILVER
41	FRONT COVER	2546ASILVER
42	BACK COVER	2566ASILVER
43	WALL MOUNT	2544ASILVER
44	SCREW COVER 1900MM	2243ASILVER
45	NO8 X 9.5MM PAN HEAD SCREW	1420ASILVER
49	WALL PLUG	1818AF
50	NO6 X 32MM PAN HEAD SCREW	1494ASILVER
51	NO6 X 9.5MM PAN HEAD SCREW	1405ASILVER
52	WALL MOUNT CAP	5131ASILVER
53	RECESS TOP CAP (LH)	5132ASILVER
54	RECESS TOP CAP (RH)	5129ASILVER
55	NO8 X 32MM PAN HEAD SCREW	1471ASILVER

​​​​​​

SIDE PANEL NIQ900 / NIQ1000 / NIQ1200  Spare Parts
Please Click on POA (Price On Application) to request a price if item is not built on our site yet.
sales@bathroomspareparts.co.uk

Item	Description	Part Number
2	SIDE	2754ASILVER
3	QUINTESSE ADJUSTER	2752ASILVER
4	QUINTESSE CORNER	2751ASILVER
5	CORNER SEAL	2253CLEAR
6	VERTICAL SCREW COVER	2243ASILVER
7	NO8 X 9.5MM PAN HEAD SCREW	1420ASILVER
9	NO6 X 9.5MM PAN HEAD SCREW	1405ASILVER
10	QUINTESS/CORNER TOP CAP	5130ASILVER

SIDE PANEL NIQ825 Spare Parts
Please Click on POA (Price On Application) to request a price if item is not built on our site yet.
sales@bathroomspareparts.co.uk

Item	Description	Part Number
1	SIDE	2754ASILVER
3	CORNER ADJUSTER	2744ASILVER
4	QUINTESSE SPACE SAVER	2757ASILVER
5	CORNER SEAL	2253CLEAR
6	VERTICAL SCREW COVER	2243ASILVER
7	QUINTESSE CORNER COVER	2756ASILVER
8	NO8 X 9.5MM PAN HEAD SCREW	1420ASILVER
9	NO6 X 9.5MM PAN HEAD SCREW	1405ASILVER
10	QUINTESS/CORNER TOP CAP	5130ASILVER

Matki New Colonade NCI-NIQ (1900) Full Installation Instructions
