Matki New Radiance RXO Quadrant Offset Shower Door Spare Parts (2008-2013)
If You Are Unable to Find The Matki Spare Part You Are Looking For!
Please E-mail Us To Request A Price
sales@bathroomspareparts.co.uk
Please E-mail Us To Request A Price
sales@bathroomspareparts.co.uk
Model Size
| RXO1576 | 1468/1514mm x 761/912mm x 2006mm |
| RXO1170 | 1107/1134mm x 714/880mm x 2006mm |
| Age Revision | Year Of Production 2008-2013 |
|
Model Handing Options |
|

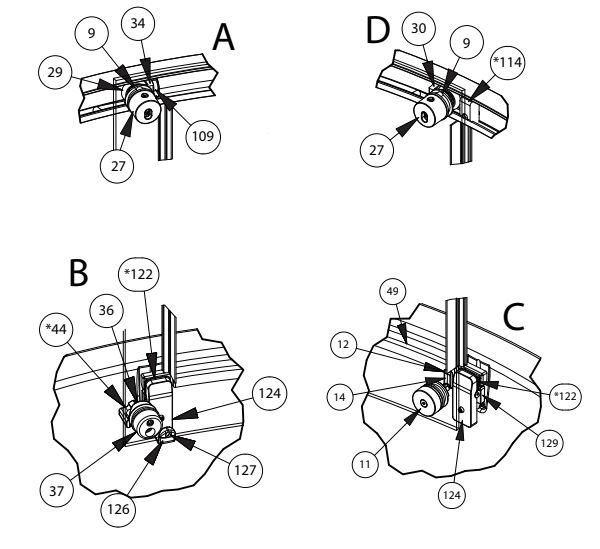

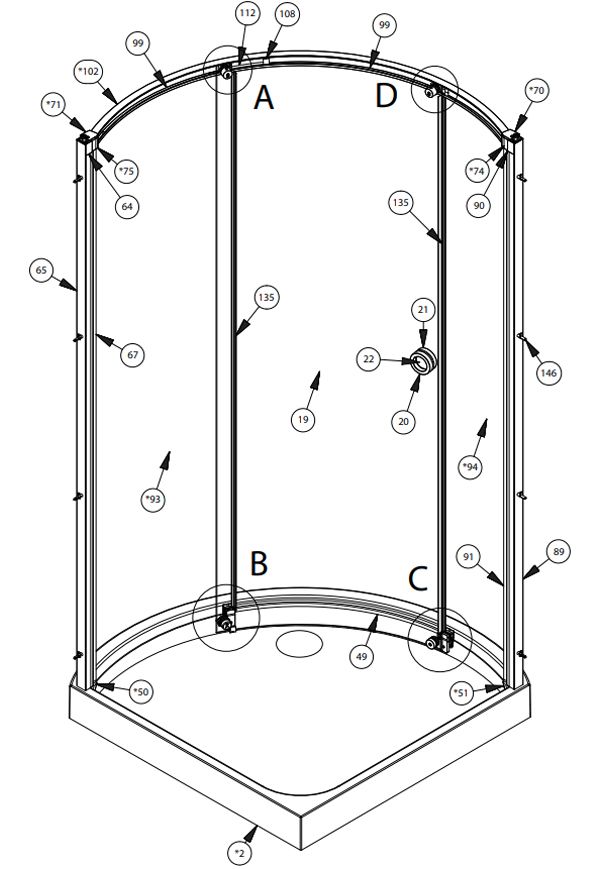

Spare Parts
Please Click on POA (Price On Application) to request a price if item is not built on our site yet.
sales@bathroomspareparts.co.uk
| COMPLETE SEAL SET (RXO1170) | RXO1170SEALSET |  |
|
| COMPLETE SEAL SET (RXO1576) | RXO1576SEALSET | |
|
| COMPLETE SEAL SET (RXC820) | RXC820SEALSET | |
|
| COMPLETE SEAL SET (RXC920) | RXC920SEALSET | |
|
| COMPLETE SEAL SET (RXC1010) | RXC1010SEALSET | |
|
| TRAY BRACKET SET | 5997AF | |
|
| 6 | 925 Tray Fixing Stud | 5297ASILVER |  |
| 7 | Guide Plate | 5289ASILVER | |
| 8 | Guide Leafspring | 5260BLACK | |
| 9 | Glass Collar | 5259BLACK | |
| 10 | Guide Back Plate | 5290ASILVER | |
| 11 | Guide Adjuster | 5291ASILVER | |
| 12 | Plastic Guide Cover | 5264BLACK | |
| 13 | Guide Waster | 5258BLACK | |
| 14 | Glass Guide Arm | 5301ASILVER | |
| 15 | M3x12 CSK SKT Screw | 1353ASILVER | |
| 16 | M4x16 CSK SKT Screw | 1404ASILVER | |
| 17 | Guide Liner | 5249BLACK | |
| 18 | Spring | 1361AF | |
| 19 | Door Glass | 3994M CLEAR/PLAIN | N/A |
| 21 | COMPLETE HANDLE ASSEMBLY | RXCHANDLE | |
| 23 | Handle Gasket | 5278CLEAR | |
| 24 | 62x3mm O Ring | CBF0361 | |
| 25 | Stainless Steel Shaft | 5273AF | |
| 26 | Roller Sliding Block | 5302AF | |
| 27 | Door Glass Adjuster Back Plate | 5303ASILVER | |
| 28 | Roller Adjust Screw | 5274AF | |
| 29 | Blue Diamond Roller Bearing | 1860AF | |
| 29 | Roller Bearing & Shaft | 6675AF | |
| 30 | RH Roller Face | 5293ASILVER | |
| 31 | M3x20 CSK SKT Screw | 1364ASILVER | |
| 32 | M4x10 CSK SKT Screw | 1397ASILVER | |
| 33 | Bearing Lock | 5279AF | |
| 34 | LH Roller Face | 5294ASILVER | |
| 35 | Roller Guide Housing | 5288ASILVER | |
| 36 | Roller Guide Face | 5292ASILVER | |
| 37 | Guide Roller Washer | 5257BLACK | |
| 38 | Roller Guide Adjuster Block | 5261BLACK | |
| 39 | Glider Bearing | 1862AF | |
| 40 | Roller Guide ADJ Pin | 5276AF | |
| 41 | Sprung Guide Roller | 5268ASILVER | |
| 42 | Roller Guide Gasket | 5305BLACK | |
| 43 | M4x10 SKT Button Head | 1365ASILVER | |
| 44 | *RH Wheel Stop (RXC820 LH, RXC920, RXC1010 LH, RXO1170 LH, RXO1576 LH) |
5309ASILVER | |
| 45 | *LH Wheel Stop (RXC820 RH, RXC920, RXC1010 RH, RXO1170 RH, RXO1576 RH) |
5310ASILVER | |
| 46 | CSK SKT Screw | 1352ASILVER | |
| 47 | 8x1mm O Ring | 1523AF | |
| 48 | 14x3 O Ring | 1616AF | |
| 49 | S/S Guide Rail | 5272ASILVER | |
| 50 | *RH Column Cup (RXC820 LH, RXC920, RXC1010 LH, RXO1170 LH, RXO1576 LH) |
5271ASILVER | |
| 51 | *LH Column Cup (RXC820 RH, RXC920, RXC1010 RH, RXO1170 RH, RXO1576 RH) |
5270ASILVER | |
| 52 | *Wall.M Guide Clamp (RXC820 LH/RH) | 5330ASILVER | |
| 53 | *LH Wall.M Bottom Cup (RXC820 LH/RH) | 5341ASILVER | |
| 54 | *945 Wall.M Bottom Cup (RXC820 LH/RH) | 5331ASILVER | |
| 55 | *RH Wall.M Bottom Cup (RXC820 LH/RH) | 5342ASILVER | |
| 56 | *Wall Mount Filler (RXC820 LH/RH) | 5355ASILVER | |
| 57 | *Closure Door Baffle (RXC820 LH/RH) | 2273CLEAR | |
| 58 | *Closure Door Baffle (RXC820 LH/RH) | 2273CLEAR | |
| 59 | *Seal Grasp (RXC820 LH/RH) | 2264AF | |
| 60 | *Wall.M Bottom Cup Pad (RXC820 LH/RH) | 1342AF | |
| 61 | *M4x10 SKT Set (RXC820 LH/RH) | 1299ASILVER | |
| 62 | *M5x10 SKT Cap Screw (RXC820 LH/RH) | 1301ASILVER | |
| 63 | Column Fastening Block | 5304AF | |
| 64 | RH Column Cap (Wall Mount) | 5295ASILVER | |
| 65 | RH WM Chassis | 5226ASILVER | |
| 66 | CURVED FOIL WALL JAMB COVER | 2268AF | DISCONTINUED |
| 67 | *RH Wall Mount Glass Clamp (RXC920, RXC1010LH/RH, RXO1170LH/RH, RXO1576 LH/RH) | 5222ASILVER | |
| 68 | Curved WM Outer Face | 5228ASILVER | |
| 69 | Seal Grasp (RXC920, RXC1010LH/RH, RXO1170LH/RH, RXO1576 LH/RH) | 2263AF | |
| 70 | *LH Top Cap (rxc920, RXO1576RH) | 5284ASILVER | |
| 71 | *RH Top Cap (RXC920, RXO1576LH) | 5283ASILVER | |
| 72 | *Offset LH Top Cap (RXC1010 LH/RH, RXO1170 LH/RH, RXO1576 LH) | 5286ASILVER | |
| 73 | *Offset RH Top Cap (RXC1010 LH/RH, RXO1170 LH/RH, RXO1576 LH) | 5285ASILVER | |
| 74 | *LH Top Track Cup (RXC920, RXO1576 RH) | 5251ASILVER | |
| 75 | *RH Top Track Cup (RXC920, RXO1576 LH) | 5250ASILVER | |
| 76 | *Offset RH Top Track Cup (RXC1010 LH/RH, RXO1170 LH/RH) | 5252ASILVER | |
| 77 | *Offset LH Top Track Cup (RXC1010 LH/RH, RXO1170LH/RH) | 5253ASILVER | |
| 78 | *945 Wall.M Top Cup RH (RXC820, RXC1010 LH/RH) | 5333ASILVER | |
| 79 | *Top Securing Cap RH (RXC820, RXC1010 LH/RH) | 5338ASILVER | |
| 80 | *945 Wall.M Top Cup LH (RXC820, RXC1010 LH/RH) | 5335ASILVER | |
| 81 | *Top Securing Cap LH (RXC820, RXC1010 LH/RH) | 5336ASILVER | |
| 82 | *LH Column Cup Pad (RXC920, RXC1010 LH/RH, RXO1170 LH/RH, RXO1576 LH/RH) |
5306BLACK | |
| 83 | M5 x 20 CSK SKT Screw | 1503ASILVER | |
| 84 | M5 x 10 CSK SKT Screw | 1488ASILVER | |
| 85 | M5x12 CSK SKT Screw | 1417ASILVER | |
| 86 | No6x16 CSK Screw | 1350ASILVER | |
| 87 | No8x9.5 CSK Screw | 1421ASILVER | |
| 88 | No8 x 9.5mm Pan Head | 1420ASILVER | |
| 89 | LH WM Chassis | 5227ASILVER | |
| 90 | LH Column Cap (Wall Mount) | 5296ASILVER | |
| 91 | *LH Wall Mount Glass Clamp (RXC920, RXC1010 LH/RH, RX01170 LH/RH, RXO1576 LH/RH) |
5223ASILVER | |
| 92 | *RH COLUMN CUP PAD (RXC920, RXC1010 LH/RH, RXO1170 LH/RH, RXO1576 LH/RH) |
5307BLACK | |
| 93 | *LARGE FIXED PANEL (RXC820 LH/RH, RXC920, RXO1170 LH/RH) | 3992M CLEAR/PLAIN | N/A |
| 94 | *Small Fixed Panel (RXC920, RXO110LH/RH) | 3993M CLEAR/PLAIN | N/A |
| 95 | *Fixed Panel (RXC1010LH/RH) | 3972M CLEAR/PLAIN | N/A |
| 96 | *1000 Curved Side Panel (RXC1010 LH/RH) | 3979M CLEAR/PLAIN | N/A |
| 97 | *OFFSET CURVED SIDE PANEL (RXO1576 LH/RH) | 3978M CLEAR/PLAIN | N/A |
| 98 | *FIXED PANEL (RXO1576 LH/RH) | 3973M CLEAR/PLAIN | N/A |
| 99 | Plastic Runner Track (This has been replaced by 8875WH) | 5254BLACK | |
| 100 | *Top Track Infill (RXC920,RXC1010,RXO1170,RXO1576) | 2265AF | |
| 101 | *Top Track Infill ( RXC820) | 2267AF | |
| 102 | *Top Track (LH) (RXC920, RXO1170LH) | 5224ASILVER | |
| 103 | *Top Track (RH) (RXO1170 RH) | 5225ASILVER | |
| 104 | *946 Top Track (Unhanded) - (RXC820 LH/RH) | 5431ASILVER | |
| 105 | *947 Top Track (Unhanded) - (RXC1010 LH/RH) | 5434ASILVER | |
| 106 | *RH Coner Top Track (RXO1576 RH) | 5432ASILVER | |
| 107 | *LH Corner Top Track (RXO1576 LH) | 5433ASILVER | |
| 108 | Rubber Stop | 5280BLACK | |
| 109 | Door Damper | 1348AF | |
| 110 | *LH Damper Housing (all Models- LH) | 5281ASILVER | |
| 111 | *RH Damper Housing (all Models- RH) | 5282ASILVER | |
| 112 | Damper Cover | 5255ASILVER | |
| 113 | M5x12mm SKT Set | 1346ASILVER | |
| 114 | *Guide Stop (RXC920, RXC1010, RXO1170, RXO1576) | 5287ASILVER | |
| 115 | *RH Top Track End Cap (RXC920, RXC1010 LH/RH,RXO1170 LH/RH, RXO1576 LH/RH) | 5266BLACK | |
| 116 | *LH Top Track End Cap (RXC920, RXC1010 LH/RH,RXO1170 LH/RH, RXO1576 LH/RH) | 5265BLACK | |
| 117 | *946 LH Top Track End Cap (RXC820 LH) | 5356BLACK | |
| 118 | *946RH Top Track End Cap (RXC820 RH) | 5357BLACK | |
| 119 | No6 x 9.5 CSK Screw | 1413ASILVER | |
| 120 | No6 x 19mm Pan Head | 1347ASILVER | |
| 121 | Washer | 1914AF | |
| 122 | Clamp Interface | 5256CLEAR | |
| 123 | Folding Clamp 6mm (RXC1010, RXO1576) | 5351CLEAR | |
| 124 | BRACKET P KIT | 6024AF | |
| 125 | Spring Retainer | 5262BLACK | |
| 129 | Rising BRKT | 5298ASILVER | |
| 130 | BRKT Backplate | 5300ASILVER | |
| 131 | M5x8 SKT Set Screw | 1273ASILVER | |
| 132 | M5x12 SKT Cap Screw | 1372ASILVER | |
| 133 | M5x16 CSK SKT Screw | 1495ASILVER | |
| 134 | M4x6 CSK SKT Screw | 1356ASILVER | |
| 135 | Centre Vertical Gasket 5mm | 2262CLEAR | |
| 136 | *Horizontal Gasket (RXC820 LH/RH, RXC920, RXO1170LH/RH) Length: 534mm | 2270CLEAR | |
| 137 | *Horizontal Gasket (RXC820 LH/RH, RXO1170LH/RH) Length: 280mm | 2271CLEAR | |
| 138 | *Horizontal Gasket (RXC1010LH/RH) Length: 816mm | 2289CLEAR | |
| 139 | *Horizontal Gasket (RXC1010LH/RH) Length: 163mm | 2290CLEAR | |
| 140 | *Horizontal Gasket (RXO1576LH/RH) Length: 632mm | 2281CLEAR | |
| 141 | *Horizontal Gasket (RXO1576LH/RH) Length: 577mm | 2282CLEAR | |
| 143 | *6mm Glass Clamp | 5263BLACK | |
| 145 | *Folding Clamp 6mm (RXC1010, RXO1576) | 5351CLEAR | |
| 146 | Damper Cover | 5255ASILVER | |
| 147 | Rubber Stop | 5308WHITE | |
| 148 | M5x8 SKT Button Head | 1358ASILVER | |
| 149 | No8x32mm Pan Head | 1471ASILVER | |
Matki New Radiance RXO-RXC Full Installation Instructions
