Bristan Oval Exposed Fixed Head Bar Shower with Diverter & Kit OL SHXDIVFF C

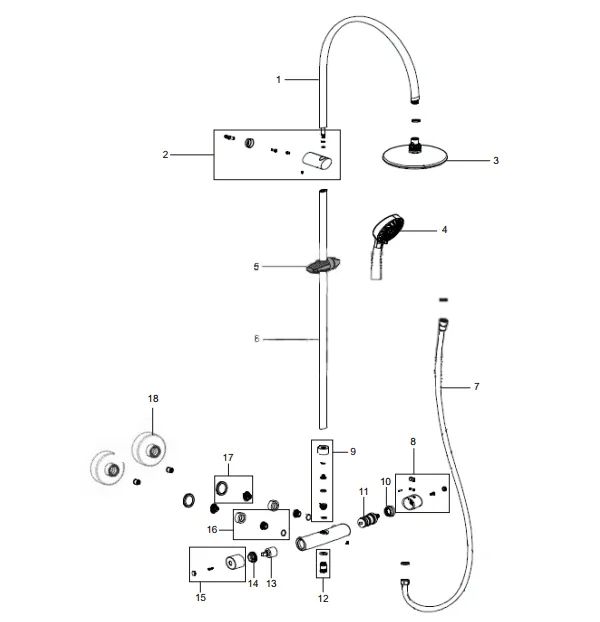

Diagram ref.    Part no.                    Part name
01     31C00020-009-CA1             Oval Shower Arm
02     B36020-BRACKET ASS         Top Bracket Assembly OL SHXDIV Chrome
03     81P13700-000-001             Oval Shower Rose Chrome
05     82M50280-015-CA1 OL SHXDIV/SHXDIVFF         Slider Chrome
06     31C00020-007-CA1             Oval Riser Rail Chrome
08     B36020-TM HANDLE ASS     Temperature Handle Assembly OL SHXDIV Chrome
09     B36020-SEAL KIT ASS         Seal Kit Assembly OL SHXDIV Chrome
10     11B30230-002-CA1             Control Ring
11     81E10004-000-001 OL SHXSMFF         Thermostatic Cart. Assy
12     B36020-HOSE OUTLET         Hose Outlet OL SHXDIV Chrome
14     32B30230-005-CA1             Retaining Nut - 212552 Asmara
15     B36020-FLOW HANDLE ASS         Flow Handle Assembly OL SHXDIV Chrome
16     B36020-NUT RETAINER ASS     Back Nut Retainer Assembly OL SHXDIV Chrome
17     B36020-FILTER                         Basket Filter & O-Ring OL SHXDIV Chrome
18     WMNT10 C                                 Wall Mount Fixings Chrome Plated
