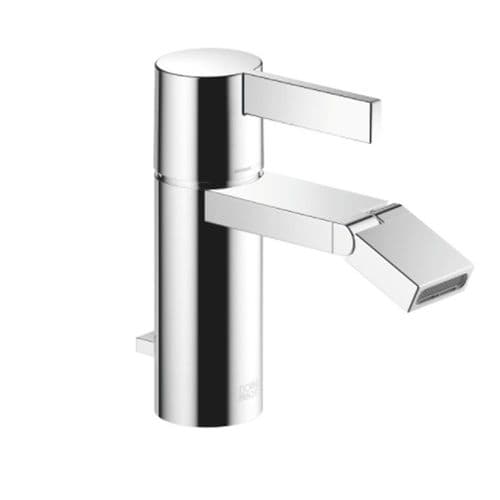

Dornbracht IMO Bidet Mixer Until 18/02/2019 33600670 Spare Parts

1	90312008700-00	Cover Ø 7 x 2,1 mm - polished chrome
2	09311103090	Mounting Threaded pin with hexagon socket with cup point M5 x 5 mm
3	092067003-00	Handle Lever 47,5 x 46 x 117 mm - polished chrome
4	0920667003-00	Cover Ø 44 x 13,5 mm - polished chrome
5	9023100660090	Mounting Nut 32 x 15,5 x 32 mm
6	9015050420090	Cartridge Ø 25 x 52 mm
7	09141010290	O-Ring 33,05 x 1,78 mm
8	09140313190	Profile seal 26 x 7,50 x 1,5 mm
9	09110306190	Wall connection 32 x 8 mm
10	09141005390	O-Ring EPDM 70 17,17 x 1,78 mm
11	09303008490	Mounting Cylinder head screw with hexagon socket Low profile M4 x 25 mm
12	0930311690	Mounting Countersunk screw with hexagon socket M4 x 8 mm
13	092822246-00	Spout 38 x 161 x 232 mm - polished chrome
14	093003015790	Mounting Countersunk screw with hexagon socket M3 x 6 mm
15	90240208300-00	Joint for bidet 40 x 38 x 14 mm - polished chrome
16	092301123-00	Aerator sleeve 38 x 14 x 38 mm - polished chrome
17	09311106490	Mounting Threaded pin with hexagon socket with chamfered end M3 x 4 mm
18	9029030450090	Aerator insert without limitation 32 x 8 mm
19	092067002-00	Pull button 26 x 15 x 7 mm - polished chrome
20	09141011990	O-Ring EPDM 70 33,0 x 2,5 mm
21	092810109-07	Ring Ø 38,8 x 17 mm - untreated nickel-plated
22	093109080-00	Pull rod for pop-up waste Ø 4 x 400 mm - polished chrome
23	0430040160090	High pressure hose M10x1 x 420 mm
24	0430110856290	Mounting
25	09311101290	Mounting Threaded bolt M8 x110 mm
26	04110100100-00	Basin Waste 1 1/4" - polished chrome
