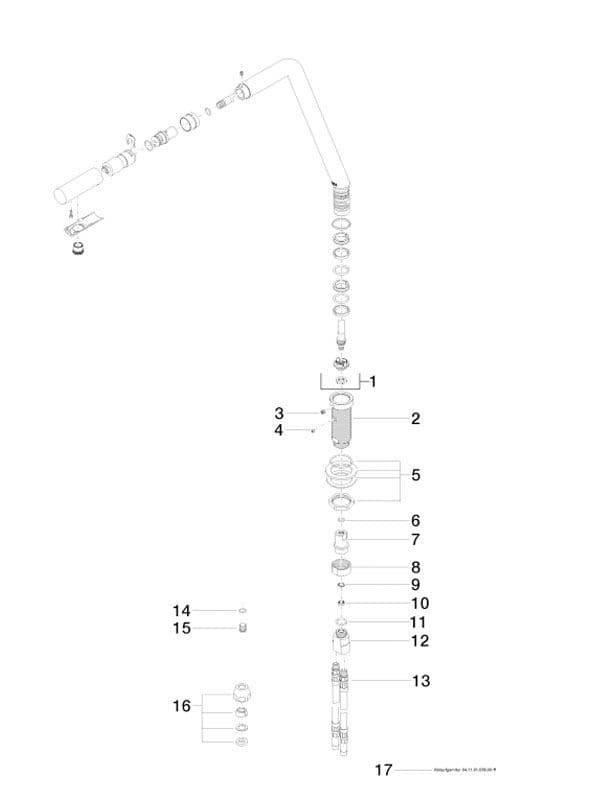

Dornbracht IMO Deck-Mounted Spout With Rotating Tip With Pop-Up Waste 27755973 Spare Parts
| 1 | 90282226200 | Spout 35 x 372 x 306 mm - polished chrome |  |
|
| 2 | 093001196-00 | Wall connection Ø 36 x 88 mm - polished chrome | |
|
| 3 | 09311107990 | Mounting Threaded pin with hexagon socket with chamfered end M5 x 6 mm | |
|
| 4 | 09311109990 | Mounting Threaded pin with hexagon socket with chamfered end M4 x 4 |  |
 |
| 5 | 04330110338890 | Mounting with O-ring Ø31 x 2mm M30 x 1,5 | |
|
| 6 | 09141006190 | O-Ring EPDM 70 7,5 x 1,52 mm | |
|
| 7 | 09240323790 | Extension | |
|
| 8 | 09231009990 | Mounting | |
|
| 9 | 09160101690 | Ring Retaining ring Ø 10 x 1 mm | |
|
| 10 | 09230103390 | Flow limiter grey 5 l/min. | |
|
| 11 | 09141013090 | O-Ring EPDM 70 14,0 x 2,00 mm | |
|
| 12 | 0911100551090 | Wall connection 19 x 35 x 26 mm | |
|
| 13 | 0430040160090 | High pressure hose M10x1 x 420 mm | |
|
| 14 | 09141006090 | O-Ring 8,0 x 1,5 mm | |
|
| 15 | 09312006590 | Plug Ø 11 x 11 mm | |
|
| 16 | 04233004000-00 | Wall connection Ø 10 mm x 3/8" - polished chrome | |
|
| 17 | 10125970-00 | Basin Waste with push fastening 1 1/4" - polished chrome | |
