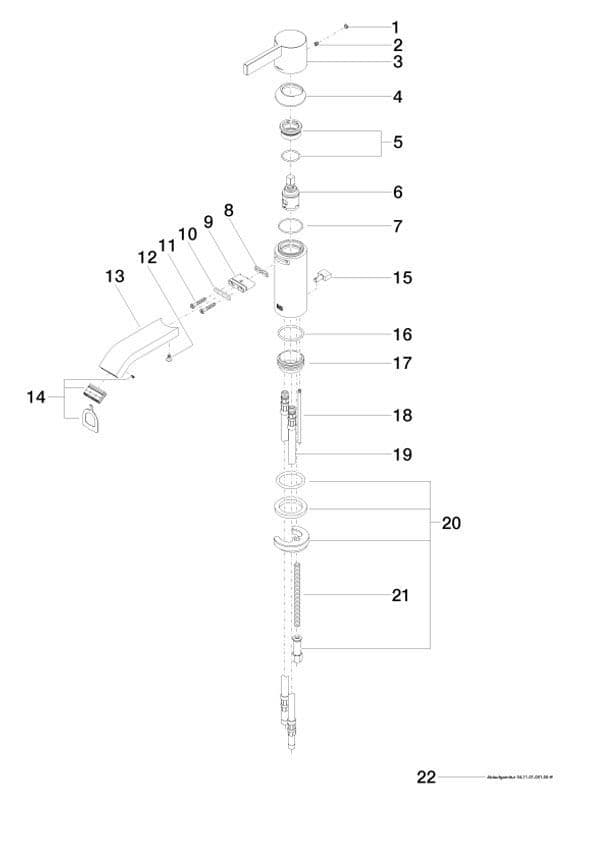

Dornbracht IMO Single - Lever Basin Mixer With Pop Up Waste 33500670 Until 18/02/2019 Spare Parts
| 1 | 90312008700-00 | Cover Ø 7 x 2,1 mm - polished chrome |  |
|
| 2 | 09311103090 | Grub Screw Pin M5 x 5 mm |  |
 |
| 3 | 092067003-00 | Handle Lever 47,5 x 46 x 117 mm - polished chrome | |
|
| 4 | 092830019-00 | Cover Ø 44 x 13,5 mm - polished chrome | |
|
| 5 | 9023100660090 | Mounting Nut 32 x 15,5 x 32 mm | |
|
| 6 | 9015050420090 | Cartridge Ø 25 x 52 mm | |
|
| 7 | 09141010290 | O-Ring 33,05 x 1,78 mm | |
|
| 8 | 09140313190 | Profile seal 26 x 7,50 x 1,5 mm | |
|
| 9 | 09110306190 | Wall connection 32 x 8 mm | |
|
| 10 | 09141005390 | O-Ring EPDM 70 17,17 x 1,78 mm | |
|
| 11 | 09303008490 | Mounting Cylinder head screw with hexagon socket Low profile M4 x 25 mm | |
|
| 12 | 09303011690 | Mounting Countersunk screw with hexagon socket M4 x 8 mm | |
|
| 13 | 092822239-00 | Spout 121 x 34 x 38 mm - polished chrome | |
|
| 14 | 9029030450090 | Aerator insert without limitation 32 x 8 mm | |
|
| 15 | 092067002-00 | Pull button 26 x 15 x 7 mm - polished chrome | |
|
| 16 | 09141011990 | O-Ring EPDM 70 33,0 x 2,5 mm | |
|
| 17 | 092810109-07 | Ring Ø 38,8 x 17 mm - untreated nickel-plated | |
|
| 18 | 093109080-00 | Pull rod for pop-up waste Ø 4 x 400 mm - polished chrome | |
|
| 19 | 04300040160090 | High pressure hose M10x1 x 420 mm | |
|
| 20 | 0430110856290 | Mounting | |
|
| 21 | 09311101290 | Mounting Threaded bolt M8 x110 mm | |
|
| 22 | 04110100100-00 | Basin Waste 1 1/4" - polished chrome | |
|
