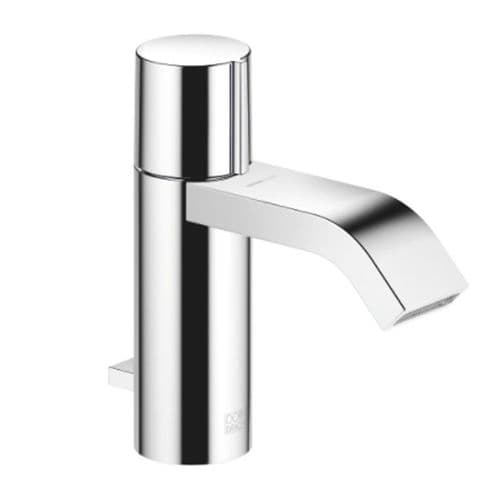

Dornbracht IMO Single-Lever Basin Mixer 33507670 Spare Parts

1	092067001-00	Handle 41,50 x 41,50 x 40 mm - polished chrome
2	092310065-00	Mounting Ø 32 x 18 mm - polished chrome
3	9090031620090	Head part Temperature maintenance head part Lifetime 180° progressive
4	09140313190	Profile seal 26 x 7,50 x 1,5 mm
5	09110306190	Wall connection 32 x 8 mm
6	09141005390	O-Ring EPDM 70 17,17 x 1,78 mm
7	09303018290	Mounting Cylinder head screw with hexagon socket M4 x 22 mm
8	09303011690	Mounting Countersunk screw with hexagon socket M4 x 8 mm
9	092822238-00	Spout 35 x 100 x 34 mm - polished chrome
10	9029030450090	Aerator insert without limitation 32 x 8 mm
11	092067002-00	Pull button 26 x 15 x 7 mm - polished chrome
12	09141010490	O-Ring 33,3 x 2,4 mm
13	092767003-00	Rosette Ø 52 x Ø 33,7m x 5,5 mm - polished chrome
14	093109080-00	Pull rod for pop-up waste Ø 4 x 400 mm - polished chrome
15	0430040160090	High pressure hose M10x1 x 420 mm
16	0430110850190	Mounting with O-ring Ø40 x 4mm Ø 52 x 1,5 mm
17	09311101290	Mounting Threaded bolt M8 x110 mm
18	04110100100-00	Basin Waste 1 1/4" - polished chrome
