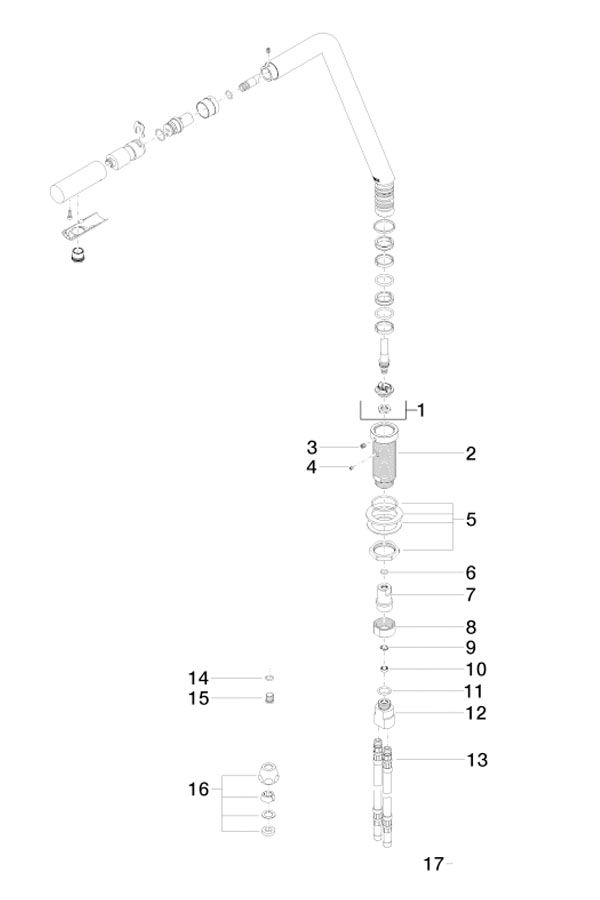

Dornbracht Lisse' Deck-Mounted Spout With Rotating Tip With Pop-Up Waste 27755973 Spare Parts
| 1 | 90282226200-00 | Spout 35 x 372 x 306 mm - Polished Chrome |  |
|
| 2 | 093001196-00 | Wall Connection Ø 36 x 88 mm - Polished Chrome | |
|
| 3 | 09311107990 | Mounting Threaded Pin With Hexagon Socket With Chamfered End M5 x 6 mm - | |
|
| 4 | 09311109990 | Mounting Threaded Pin With Hexagon Socket With Chamfered End M4 x 4 - |  |
 |
| 5 | 0430110386890 | Mounting With O-Ring Ø31 x 2mm M30 x 1,5 - | |
|
| 6 | 09141006190 | O-Ring EPDM 70 7,5 x 1,52 mm - | |
|
| 7 | 09240323790 | Extension - | |
|
| 8 | 09231009990 | Mounting - | |
|
| 9 | 09160101690 | Ring Retaining Ring Ø 10 x 1 mm - | |
|
| 10 | 09230103390 | Flow Limiter Grey 5 l/min. - | |
|
| 11 | 09141013090 | O-Ring EPDM 70 14,0 x 2,00 mm - | |
|
| 12 | 0911100551090 | Wall Connection 19 x 35 x 26 mm - | |
|
| 13 | 0430040160090 | High Pressure Hose M10x1 x 420 mm - | |
|
| 14 | 09141006090 | O-Ring 8,0 x 1,5 mm - | |
|
| 15 | 09312006590 | Plug Ø 11 x 11 mm - | |
|
| 16 | 04233004000-00 | Wall Connection Ø 10 mm x 3/8" - Polished Chrome | |
|
| 17 | 10125970-00 | Basin Waste With Push Fastening 1 1/4" - Polished Chrome | |
