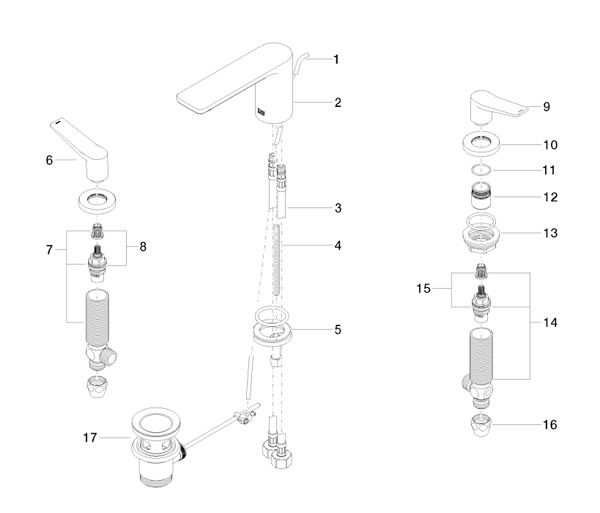

Dornbracht Lisse' Three Hole Basin Mixer With Pop-Up Waste 20713846 Spare Parts

1	093109120-00	Pull Rod For Pop-Up Waste Curved Ø 5 x 400 mm - Polished Chrome
2	90118401301-00	Spout 230 x 130 x 120 mm, 3,78 l/min. - Polished Chrome
3	0430040190090	High Pressure Hose With Sleeve Nut M10x1 x 1/2" x 420 mm -
4	09311101290	Mounting Threaded Bolt M8 x110 mm -
5	0430110387590	Mounting With O-Ring Ø36 x 4mm Ø 52 x 1,5 mm -
6	092084025-00	Handle Hot 28 x 55,6 x 91,5 mm - Polished Chrome
7	0417110555190	Deck Valve Clockwise Closing 1/2" -
8	9090031510090	Head Part Clockwise Closing 1/2" -
9	092084024-00	Handle Cold 28 x 55,6 x 91,5 mm - Polished Chrome
10	092784023-00	Rosette Ø 48,2 x 7,1 mm - Polished Chrome
11	09141009890	O-Ring 22,0 x 1,6 mm -
12	09184020690	Ring Ø 24,8 x 28,2 mm -
13	0423100327890	Mounting With Seals M30 x 1,5 -
14	0417110555090	Deck Valve Anti-Clockwise Closing 1/2" -
15	9090031500090	Head Part Anti-Clockwise Closing 1/2" -
16	04233004000-00	Wall Connection Ø 10 mm x 3/8" - Polished Chrome
17	04110100100-00	Basin Waste 1 1/4" - Polished Chrome
