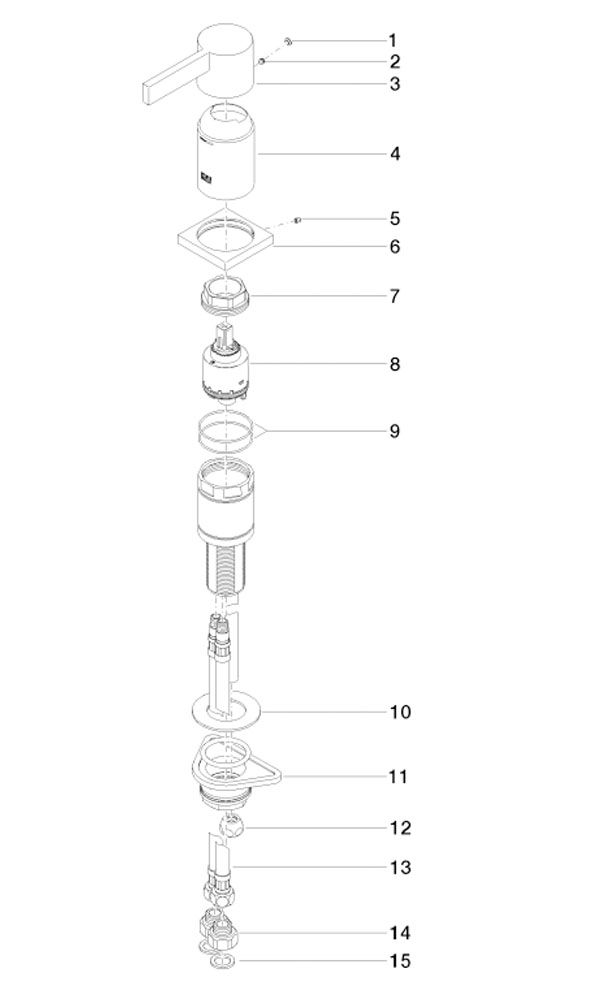

Dornbracht Mem Single-Lever Bath Mixer Bath Rim Or Tile Edge Installation 29300670 Spare Parts
| 1 | 90312008700-00 | Cover Ø 7 x 2,1 mm - Polished Chrome |  |
|
| 2 | 09311106390 | Mounting Threaded Pin With Hexagon Socket With Cup Point M5 x 4 mm - |  |
 |
| 3 | 092067014-00 | Handle Lever 50 x 46 x 124 mm - Polished Chrome | |
|
| 4 | 092830037-00 | Cover DB Logo Ø 50 x 76,8 mm - Polished Chrome | |
|
| 5 | 09311104490 | Mounting Threaded Pin With Hexagon Socket With Cup Point M4 x 5 mm - | |
|
| 6 | 092767016-00 | Rosette 60 x 60 x 9 x Ø 50,4 mm - Polished Chrome | |
|
| 7 | 09240444890 | Mounting Nut Ø 42 x 17 mm - | |
|
| 8 | 9015050390090 | Cartridge Blue Ø 40 x 75 mm - | |
|
| 9 | 09141020190 | O-Ring EPDM 70 45,0 x 1,5 mm | |
|
| 10 | 09301106090 | Disc 60 x 34 x 2 mm - | |
|
| 11 | 0423100440290 | Mounting With Seals M34 x 1 - | |
|
| 12 | 0423300410090 | Connection Ø 12 mm x 1/2" - | |
|
| 13 | 0430040210090 | High Pressure Hose With Sleeve Nut M10x1 x 3/8" x 500 mm - | |
|
| 14 | 092403185-00 | Nipple Reducing Nipple 1/2" x 3/8" - Polished Chrome | |
|
| 15 | 09140500490 | Washer EPDM 70 20,8 x 14,5 x 2,0mm - | |
