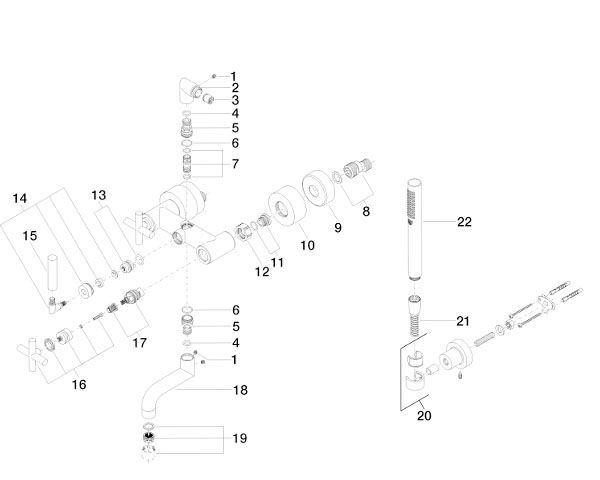

Dornbracht Tara Bath Mixer Until 27/05/2021 25133890 Spare Parts

1	09311104990	Mounting Threaded Pin With Hexagon Socket With Cup Point M6 x 6 mm -
2	091103020-00	Connection Ø 25,6 x 45 mm - Polished Chrome
3	9023010400090	Back-Flow Preventer Check Valve Cartridge, DW15 -
4	09141001190	O-Ring EPDM 70 11,0 x 2,5 mm -
5	09240305290	Nipple Ø 22 x 35 mm -
6	09141003290	O-Ring 18,1 x 1,6 mm -
7	9021100110090	Diverter TARA -
8	0411040300090	S-Connection With Sound Damper And Seal 1 Pair G1/2 x G3/4 -
9	092789007-00	Rosette Ø 66 x 24 mm - Polished Chrome
10	092789017-00	Rosette Ø 70 x 32 mm - Polished Chrome
11	0429050140090	Connection M18 x 1,5 -
12	092330034-07	Mounting Nut 16 x 30 x 35 mm - Untreated Nickel Plated
13	9015010020090	Diverter Insert Strainer Waste 25 x 35 x 25 mm -
14	90182001200-00	Holder 26 x 40 x 42 mm - Polished Chrome
15	11170880-00	Lever - Polished Chrome
16	04208901000-00	Handle 70 x 70 x 43 mm - Polished Chrome
17	9090031310090	Head Part Clockwise Closing 1/2" -
18	04110603000-00	Spout 35 x 83 x 135 mm - Polished Chrome
19	90230102400-00	Aerator M22x1-IG - Polished Chrome
20	28050890-00	Wall bracket - Polished Chrome
21	28104970-00	Metal Shower Hose 1/2" x 1/2" x 1250 mm - Polished Chrome
22	2809979-00	Hand Shower 15 l/min - Polished Chrome
