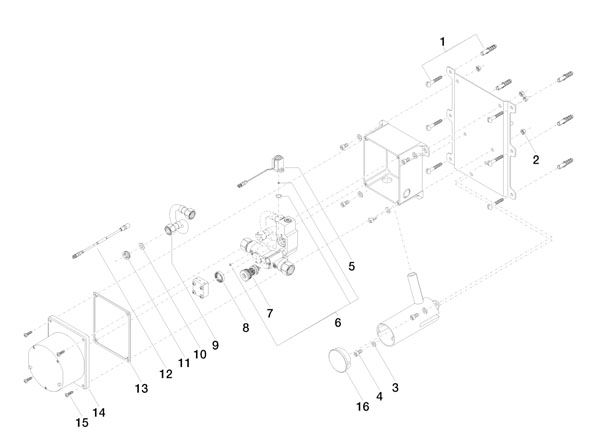

Dornbracht Wall-Mounted Infrared Basin Mixer Since 30/05/2009 3573197090 Spare Parts
| 1 | 0430310240190 | Attachment Set Wood Screw With Dowel 6 x 40 mm - |  |
|
| 2 | 09231002290 | Mounting Nut M6 - | |
|
| 3 | 09301105290 | Washer Ø 6,4 - | |
|
| 4 | 09303015190 | Mounting Cylinder Head Screw With Hexagon Socket M6 x 12 mm - | |
|
| 5 | 09305003690 | EMOTE Magnetic Valve For EMOTE - |  |
 |
| 6 | 9014100010090 | Washer - | |
|
| 7 | 0423011000090 | Back-Flow Preventer - | |
|
| 8 | 09140310090 | Washer Membrane 60 x 100 x 4 mm - | |
|
| 9 | 09300408690 | Tube - | |
|
| 10 | 09142000790 | Washer Vf 3110 14,5 x 7,5 x 2,0 mm - | |
|
| 11 | 09240318690 | Nipple - | |
|
| 12 | 09123001190 | Plug - | |
|
| 13 | 09140310390 | Washer For EMOTE Wall Mounting 107 x 127 x 2 mm | |
|
| 14 | 09111101190 | EMOTE Protective Cap 72 x 112 x 132 mm - | |
|
| 15 | 09303102290 | Mounting 4,8 x 16 mm - | |
|
| 16 | 09111102890 | Concealed Miscellaneous - | |
Sort
Showing 3 of 3 Products
Dornbracht Wall-Mounted Infrared Basin Mixer Since 30/05/2009 3573197090 Spare Parts
Showing products 1 to 3 of 3
£454.80 Inc. VAT
£379.00 ex. VAT
£603.00
Dornbracht Tap Solenoid for the 2009-2020 model is part no 09305003690
£0.00 Inc. VAT
£0.00 ex. VAT
Dornbracht Wall-Mounted Infrared Basin Mixer Since 30/05/2009 3573197090 Spare Parts
£14.88 Inc. VAT
£12.40 ex. VAT
£17.28
Dornbracht Washer 60 x 100 x 4 mm 09140310090
