Hansgrohe Axor Mondaro Chrome Bath/Shower Mixer G½ 18400000 Spare Parts

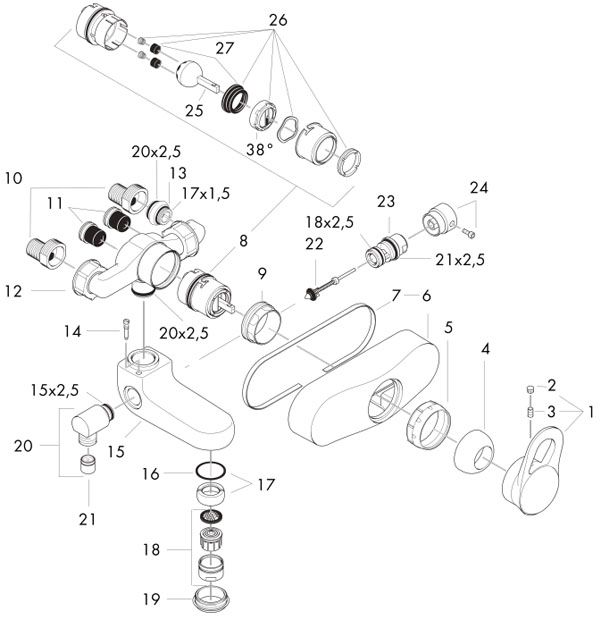

Spare For Construction Year: 11/98 - 09/04

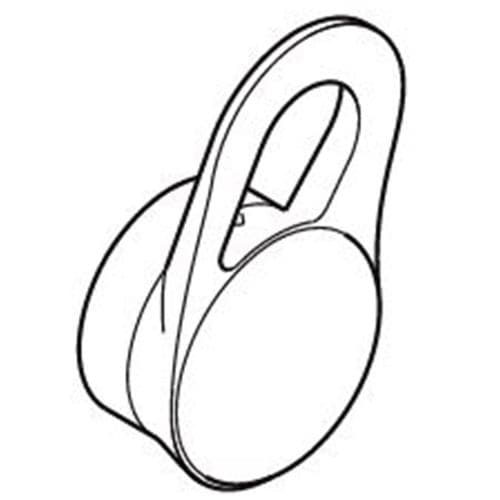

1	Handle	18491000
2	Screw Cover	94063000
3	Hollow Set Screw M6x10 DIN 916	96029000
4	Flange	94261000
5	Nut	96426000
6	Escutcheon	94200000
7	Seal	96032000
8	Cartridge, Assy	14096000
9	Nut	94106000
10	Ball S - Unions	13989000
11	Noise Reduction with Screw	98721000
12	Sleeve Nut	97528000
13	Connecting Thread	97233000
14	Screw M5 x 24	97555000
15	Spout with Selector, Mousseur	92410000
16	O-Ring 32,5x2,2	94485000
17	Ball Joint	97526000
18	Aerator M28x1 (25 l/min)	13485000
19	Nut	96438000
20	Hose Connection Angel	96033000
21	Set of Non Return Valves DW 15	94074000
22	Selector Assy	94056000
23	Guide Nipple	96036000
24	Diverter Knob CPL	13471000
25	Mixer Ball	13964000
26	Service Set with Service Tool	13952000
27	Service Set without Service Tool	98804000

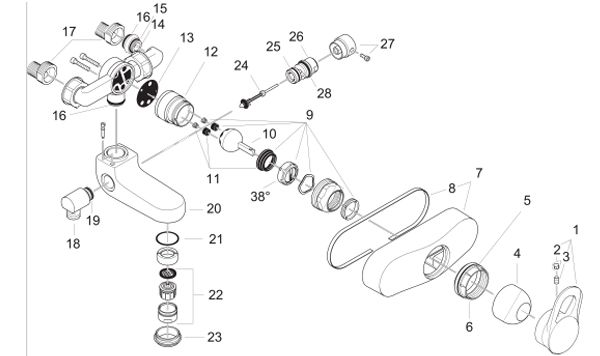

Spare For Construction Year: 07/93 - 11/98

1	Handle	18491000
2	Screw Cover	94063000
3	Hollow Set Screw M6x10 DIN 916	96029000
4	Flange	94261000
5	O-Ring 50x2	98187000	N/A
6	Nut	96463000	N/A
7	Escutcheon	94200000
8	Seal	96032000
9	Service Set with Service Tool	13952000
10	Mixer Ball	13964000
11	Service Set without Service Tool	98804000
12	Mixing Body	96040000	N/A
13	Washer	13472000	N/A
14	Connecting Thread	97233000
15	O-Ring 17x1,5	98137000
16	O-Ring 20x2,5	92602000
17	Ball S - Unions	13989000
18	Hose Connection Angel	96033000
19	O-Ring 15x2,5	98131000
20	Spout with Selector, Mousseur	92410000
21	O-Ring 32,5x2,2	94485000
22	Aerator M28x1 (25 l/min)	13485000
23	Nut	96438000
24	Selector Assy	94056000
25	O-Ring 18x2,5	98139000
26	Guide Nipple	96036000
27	Diverter Knob CPL	13471000
28	O-Ring 21x2,5	98211000	N/A
a	Ball S-Unions 120 - 180 mm	13988000	N/A
