How to Identify the Correct Fixings & Washers
Toilet leaks and unstable pans are often caused by perished washers or corroded bolts. However, Ideal Standard cisterns use specific coupling systems that differ from standard "universal" DIY kits. Selecting the correct shape and thickness of washer is vital to prevent cracking the cistern.
π§ Unsure which washer you need?
Email a photo of your dismantled cistern (specifically the underside of the cistern and the top of the pan) to sales@bathroomspareparts.co.uk. Our team can identify whether you need a doughnut washer, a flat foam seal, or a specific coupling plate.
Key Types of Ideal Standard Fixings

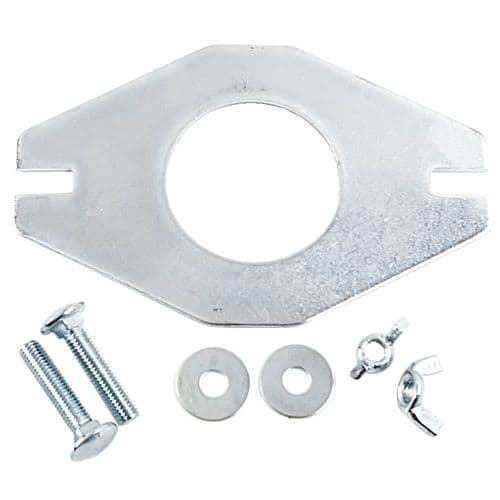

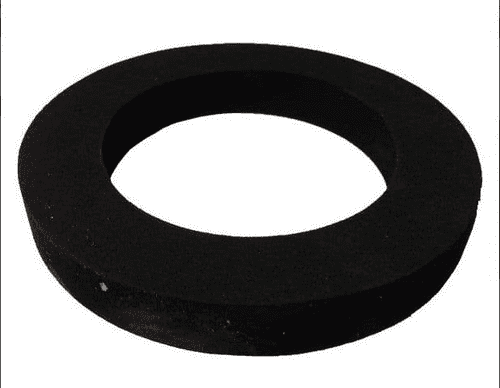

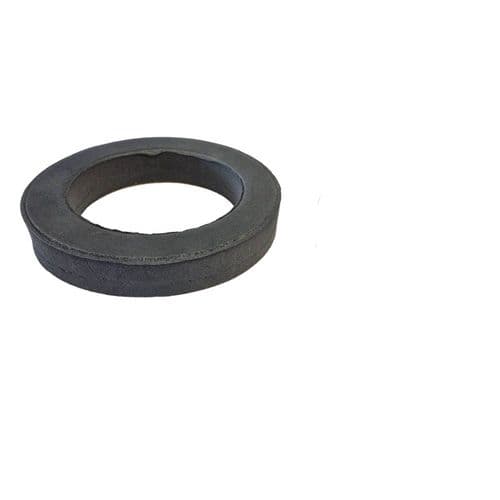

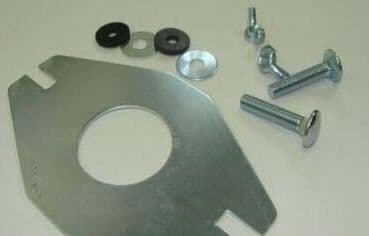

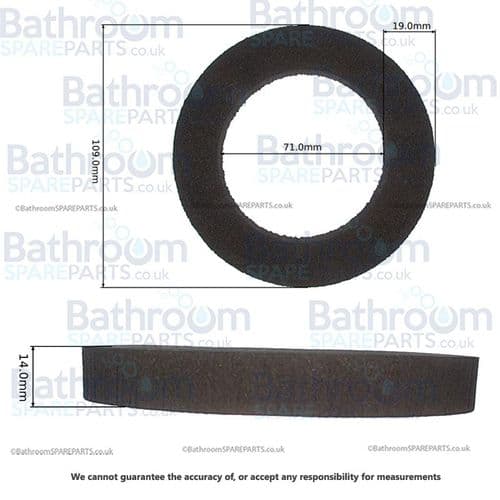

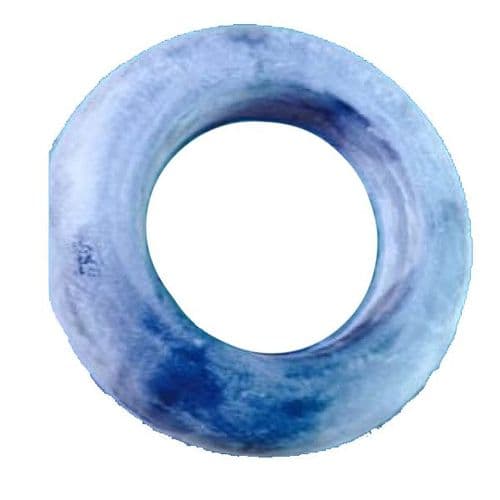

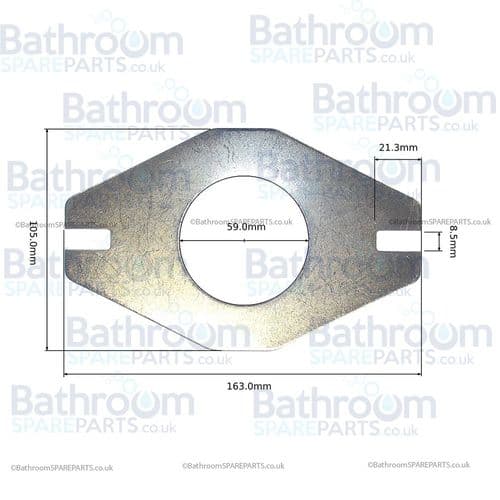

- 1. Close Coupling Kits (Doughnuts vs Flat Washers): The "Close Coupling" kit seals the cistern to the pan. Older Ideal Standard models often use a thick black rubber "doughnut" washer. Newer models, particularly those with a metal plate, may use a thinner flat sponge washer (like the EV49767). Do not mix these upβusing a doughnut on a toilet designed for a flat washer prevents the cistern from sitting flush and causes wobbling.
- 2. Cistern Bolts & Wing Nuts: These secure the cistern to the wall or pan. Ideal Standard bolts are designed with specific lengths and often include plastic spacers to prevent metal-on-ceramic contact, which causes cracks.
- 3. Floor Fixings: Standard "L" brackets or Fischer bolts secure the pan to the floor. If your toilet rocks, these may have rusted through or worked loose.

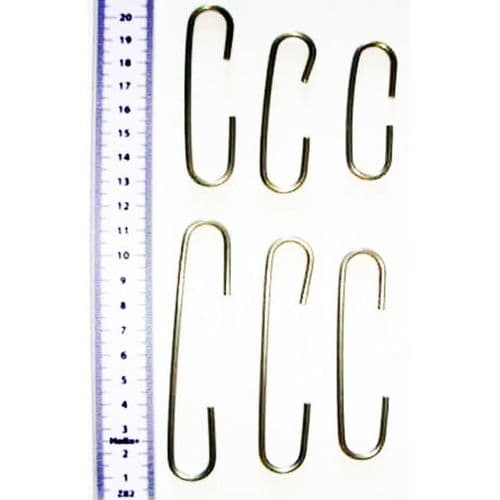

- 4. C-Links: These "C" shaped metal hooks are specific to certain Ideal Standard syphons and flush mechanisms, connecting the flush button/handle mechanism to the lifting arm.
Common Leaks & Instability Issues
Most toilet issues originate from the connection points. Here are the most frequent problems we solve with these specific spare parts.
Leak Between Cistern & Pan
Water appearing on the floor at the back of the toilet when you flush usually indicates the close coupling washer has perished or disintegrated.
β Replace: Close Coupling Kit / Doughnut Washer
Rusty Water / Corroded Bolts
If steel bolts were used previously, they will rust, staining the ceramic and eventually snapping. Genuine bolts use brass or treated steel to prevent this.
β Replace: Cistern Bolt Assembly
Wobbly Pan
If the toilet moves when you sit down, the floor fixings have failed. This movement puts stress on the waste pipe and can cause leaks.
β Replace: Floor Fixing Bracket Kit
Disconnected Flush Linkage
On some concealed cisterns, the C-links connecting the mechanism can snap or detach, rendering the flush button useless.
β Replace: C-Links Pack
Why Genuine Ideal Standard Fixings Matter
| Feature | Genuine Ideal Standard | Generic "Universal" Kits |
|---|---|---|
| Rubber Density | β Correct compression for seal | β Often too hard (risks cracking ceramic) |
| Bolt Material | β Brass or Anti-Corrosive Steel | β Mild steel (will rust rapidly) |
| Washer Profile | β Moulded to Ideal Standard shapes | β Generic circles (leak prone) |
| Installation | Fits first time | Requires cutting or forcing |
Attempting to save money on "universal" coupling kits is the leading cause of cracked cisterns we see. Ideal Standard cisterns are cast with specific tolerance gaps; using a washer that is too thick or hard puts immense pressure on the ceramic when bolts are tightened, leading to hairline cracks that destroy the toilet.
