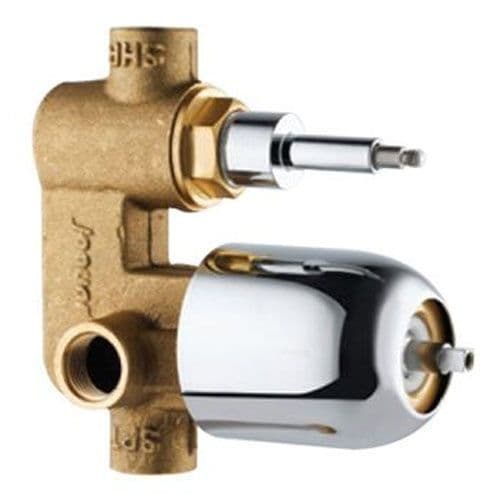

Jaquar Allied Concealed Body for Single Lever High Flow Diverter ALD-CHR-079 Spare Parts

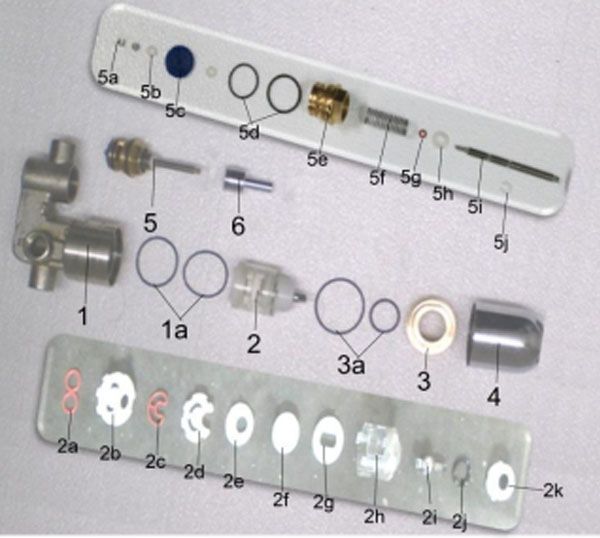

Main Parts	Part Code	Description
1	ZCB-CHR-020	BODY( C)-HIFLOW-ALD-079
1a	ZCB-CHR-029	ORING-DIV. 3INLET(47MM)-ALD-193-ALLIED(1
2	ZCS-CHR-013	CARTRIDGE-DIV.-HIFLOW-ALD-079-ALLIED
2a	ZCS-CHR-026	WASHER-BASE-HI FLOW CARTRIDGE-(ZCS-013)L
2b	ZCS-CHR-035	BASE(P)-HI FLOW CARTRIDGE-(ZCS-013)
2c	ZCS-CHR-025	WASHER-INSIDE-HI FLOW CARTRIDGE-(ZCS-013
2d	ZCS-CHR-024	DISC SET-CERAMIC-HI FLOW CARTRIDGE-46MM-
2e	Not Available	PLASTICE MOV. PART
2f	ZCS-CHR-036	SLIDER(P)-HI FLOW CARTRIDGE-(ZCS-013)
2g	ZCS-CHR-037	HOLDING PLATE(P)-HI FLOW CARTRIDGE-(ZCS-
2h	ZCS-CHR-033	HOUSING(P)-HI FLOW CARTRIDGE-(ZCS-013)
2i	ZCS-CHR-034	SPINDLE-HI FLOW CARTRIDGE-(ZCS-013)MODIF
2j	ZCS-CHR-028	WASHER(B)-HI FLOW CARTRIDGE-(ZCS-013)18
2k	ZCS-CHR-038	CAP(P)-FOR SPINDLE HI FLOW CARTRIDGE-(ZC
3	ZSL-CHR-079	NUT-HIFLOW-ALD-079-ALLIED-REGULAR-TO FIX
3a	ZMS-CHR-357	O RING SET FOR BODY NUT - H/F DIV
4	ZSV-CHR-031	SLEEVE-DIV.-HI FLOW-ALD-079-ALLIED-TO CO
5	ZSL-CHR-026	BUTTON ASSY.-HI FLOW DIV.-ALD-079- WITH
5a	ZSL-CHR-005	NUT-BUTTON ASSY-4MM(ZSL-078)
5b	ZSL-CHR-006	WASHER BRASS (P.NO-3) FOR S.L.B.ASSEY
5c	ZSL-CHR-075A	WASHER-SEAT WASHER-BUTTON ASSY.-HI FLOW(
5d	Not Available	O RING BONNET
5e	Not Available	MOHRA
5f	ZSL-CHR-090	SPRING-DIV. HI-FLOW-BUTTON ASSY.-(ZSL-02
5g	ZCS-CHR-029	ORING-HI FLOW-BUTTON ASSY.-4 X 1.8(ZSL-0
5h	Not Available	WASHER(WHITE)
5i	ZSL-CHR-074	SPINDLE-BUTTON ASSY.-HI FLOW-M7 X 110MM(
5j	Not Available	LOCK FOR BUTTON ASSY
6	ZSL-CHR-027	SLEEVE-DIV.-HI FLOW-ALD-079-ALLIED(28925
